Ignition Coil and Ignitor Assembly: Installation

  1. Install in the reverse order of removal.
    1. Tightening torque: 6.4 N-m (0.65 kgf-m, 4.7 ft-lb)
    CAUTION: Be sure to connect spark plug cords to their proper positions. Failure to do so will damage unit.

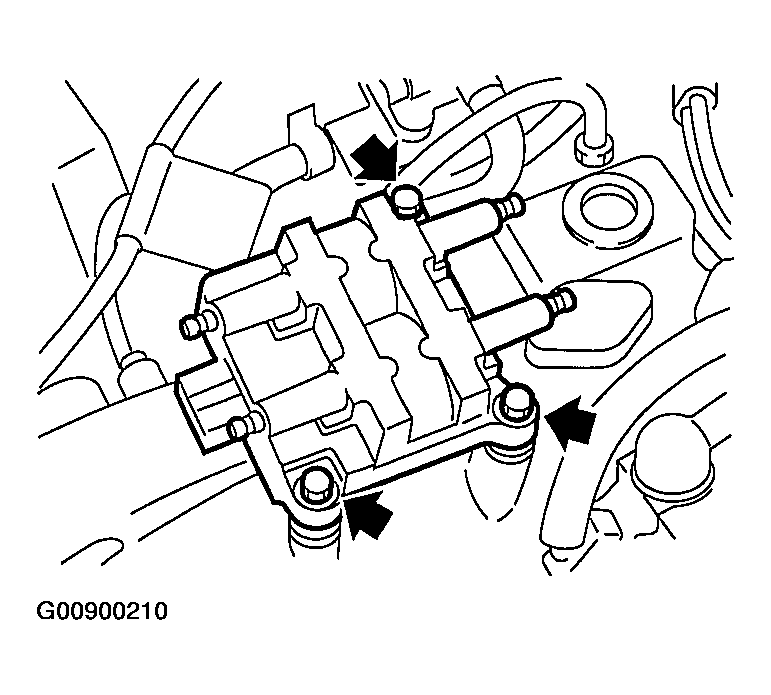

    Fig 1: Installing Ignition Coil & Ignitor Assembly
    G00900210Courtesy of SUBARU OF AMERICA, INC.
