Subaru
>>
2004
>>
Baja Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel Injection (Fuel Systems) (H4SO)
>>
General Description
>>
Component
>>
Fuel Filler Pipe
Fuel Filler Pipe

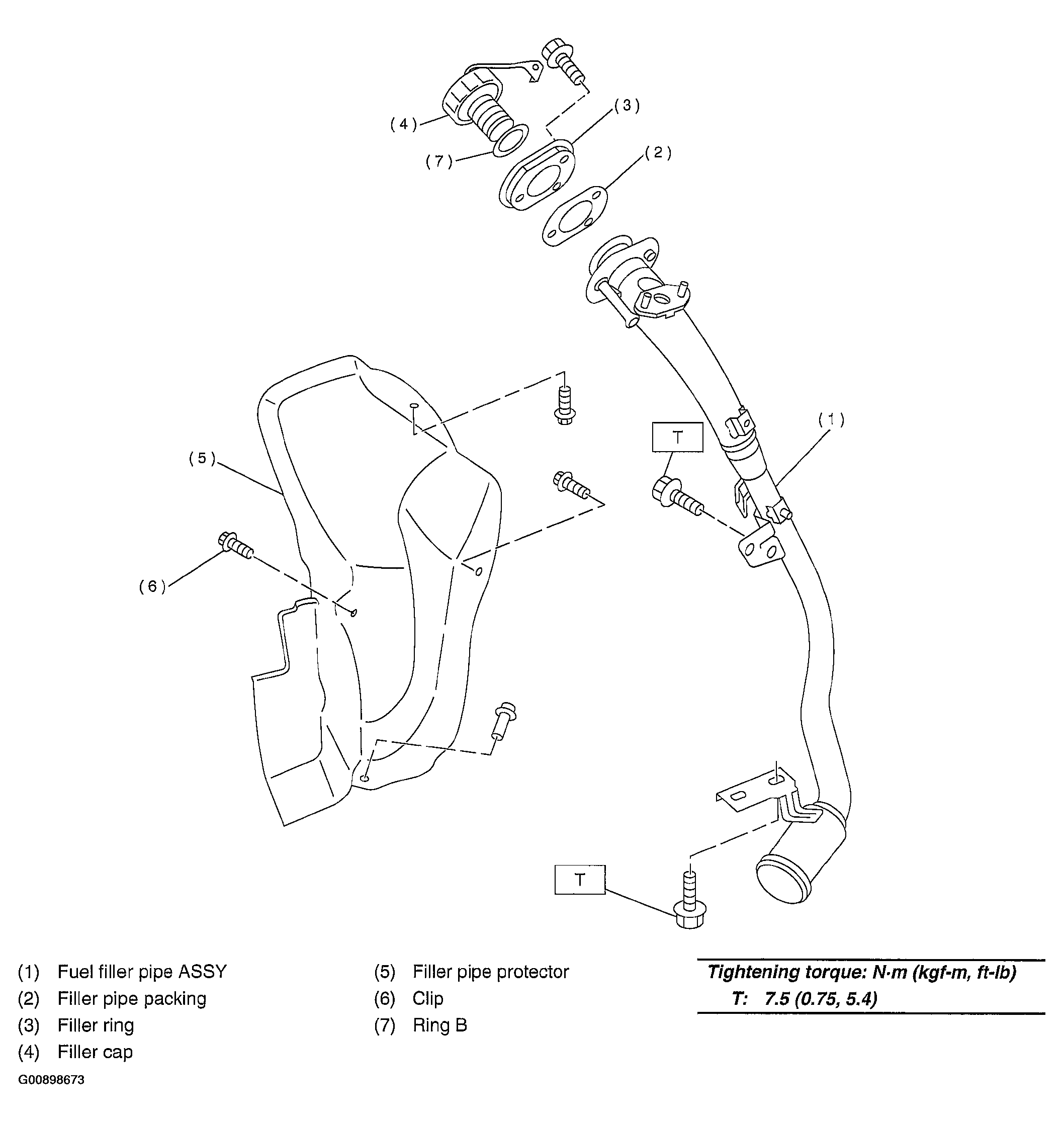

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
