Lubrication (H4SO): General Description: Component

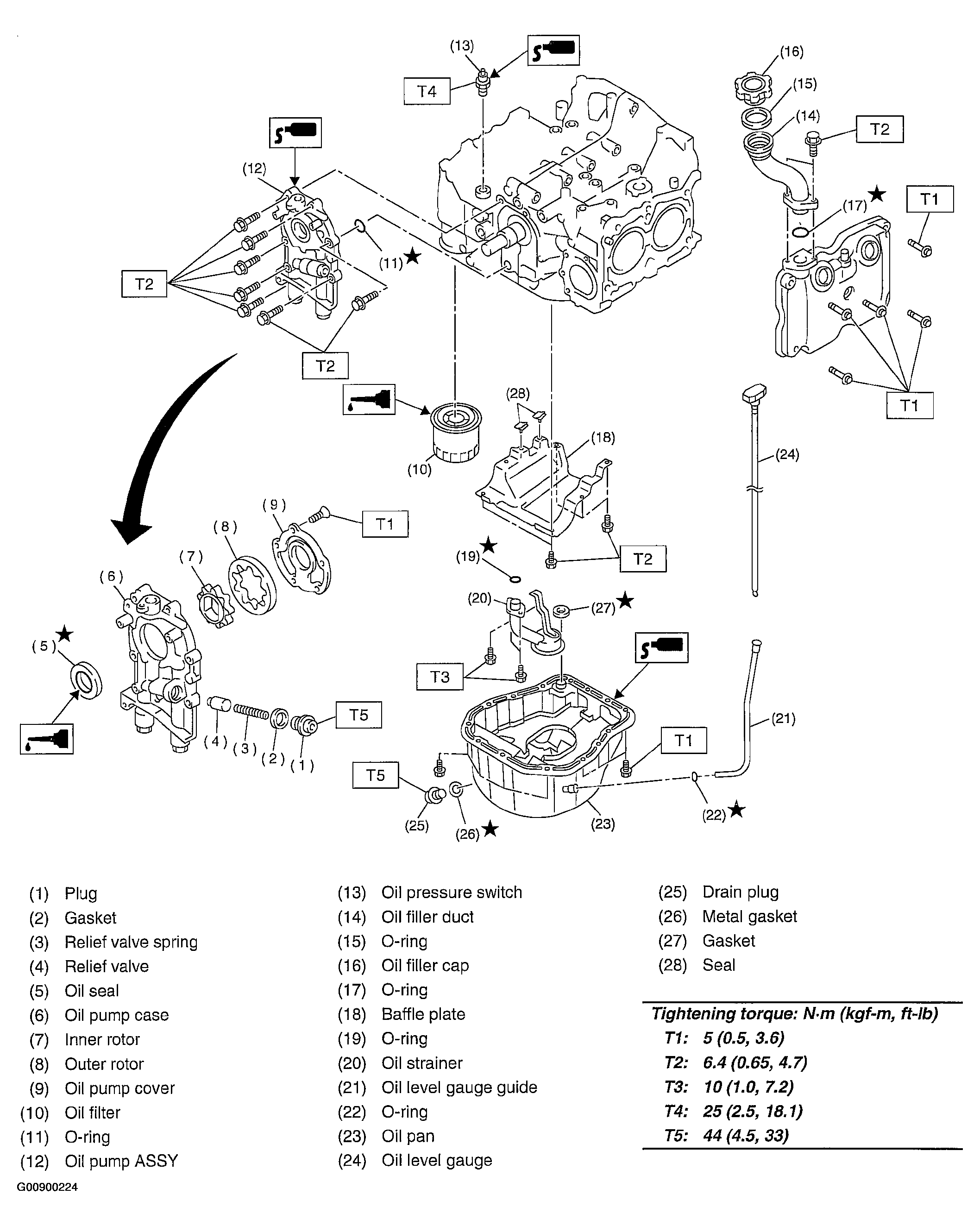

Fig 1: Lubrication System Replacement Components With Torque Specifications

G00900224

Courtesy of SUBARU OF AMERICA, INC.
