Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in the engine compartment. See Figure .

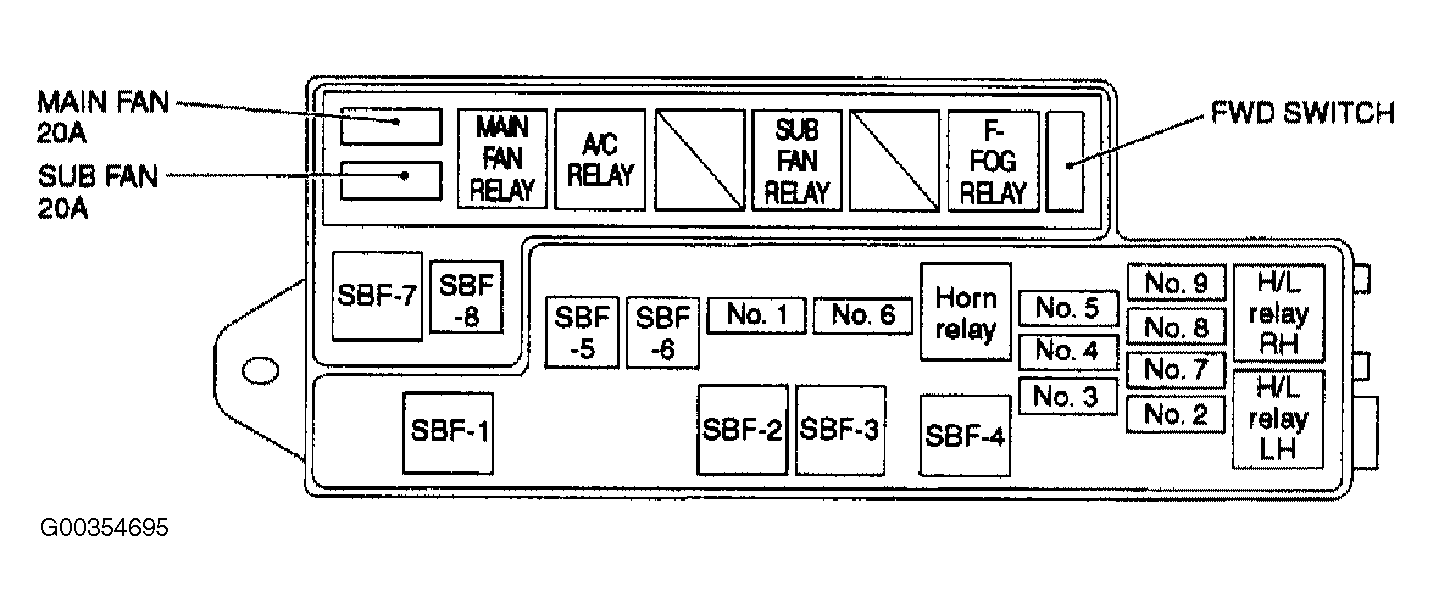

Fig 1: Identifying Under-Hood Fuse/Relay Box (4-Cylinder)

Courtesy of SUBARU OF AMERICA, INC.

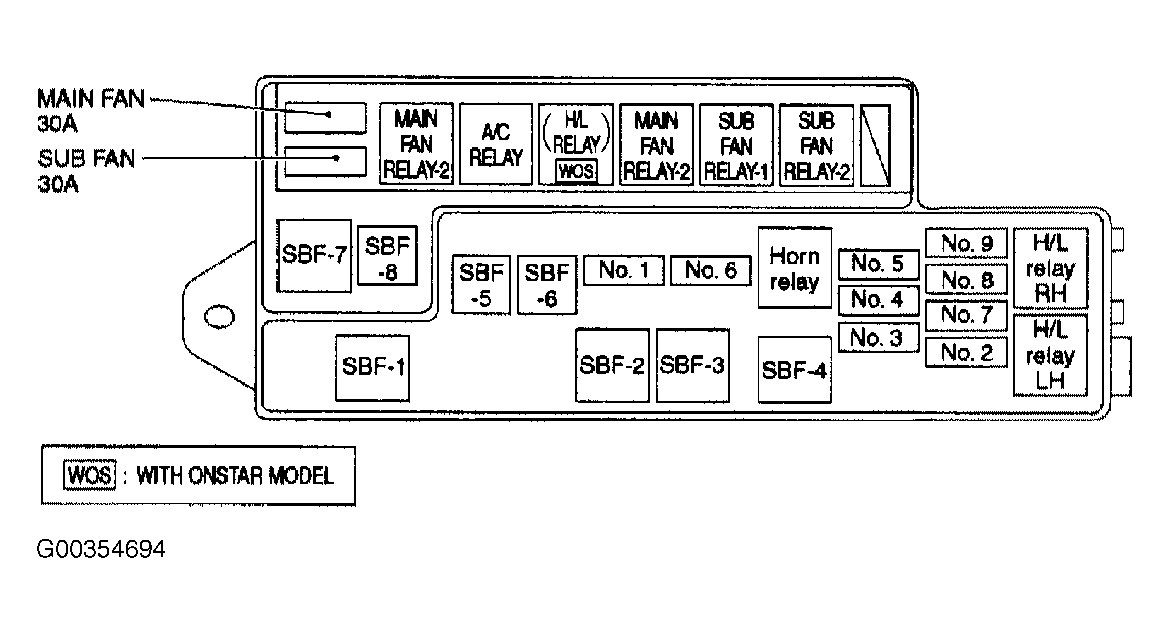

Fig 2: Identifying Under-Hood Fuse/Relay Box (6-Cylinder)

Courtesy of SUBARU OF AMERICA, INC.

UNDER-HOOD FUSE/RELAY BOX LEGEND

Fuse No.	Fuse Rating	Circuit
1	20A	Rear Window Defogger
2	15A	Clock, Interior Light
3	10A	Alternator
4	10A	Automatic Transmission Control Unit, ABS UNIT
5	15A	Meter, SRS Airbag System Warning Light
6	15A	Hazard Warning Flasher, Horn
7	20A	Lighting Switch
8	15A	Headlight (left side)
9	15A	Headlight (right side)
