Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)
Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)

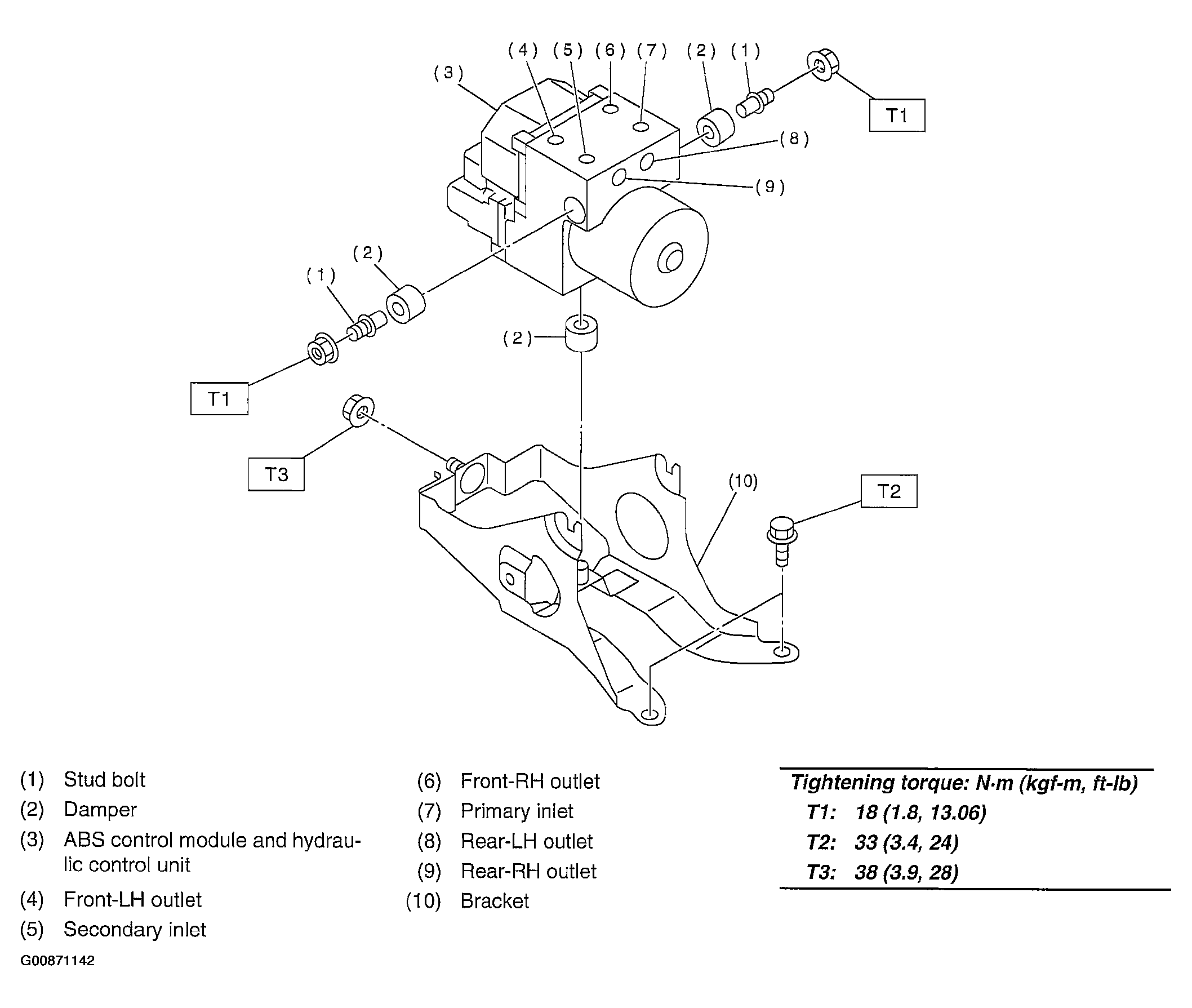

Fig 1: Identifying ABS Control Module & Hydraulic Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
