Main Switch

  1. Remove two hooks (A) of switch panel to remove power window main switch.

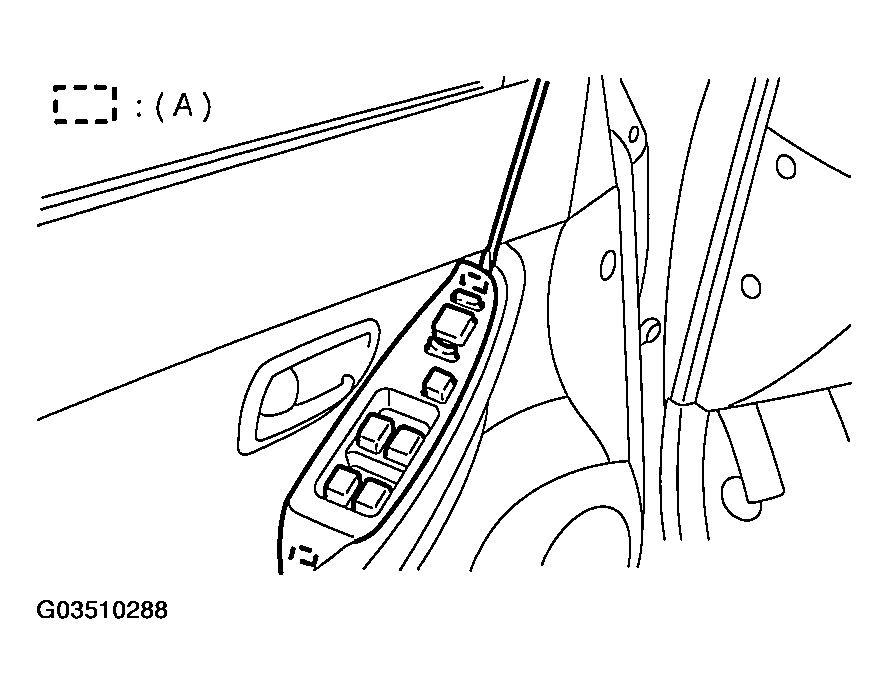

    Fig 1: Removing Hooks Of Switch Panel
    G03510288Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect electrical connectors from power window main switch and mirror switch.
    Fig 2: Disconnecting Electrical Connectors From Power Window Main Switch
    G03510289Courtesy of SUBARU OF AMERICA, INC.
