Control Module I/O Signal: Schematic

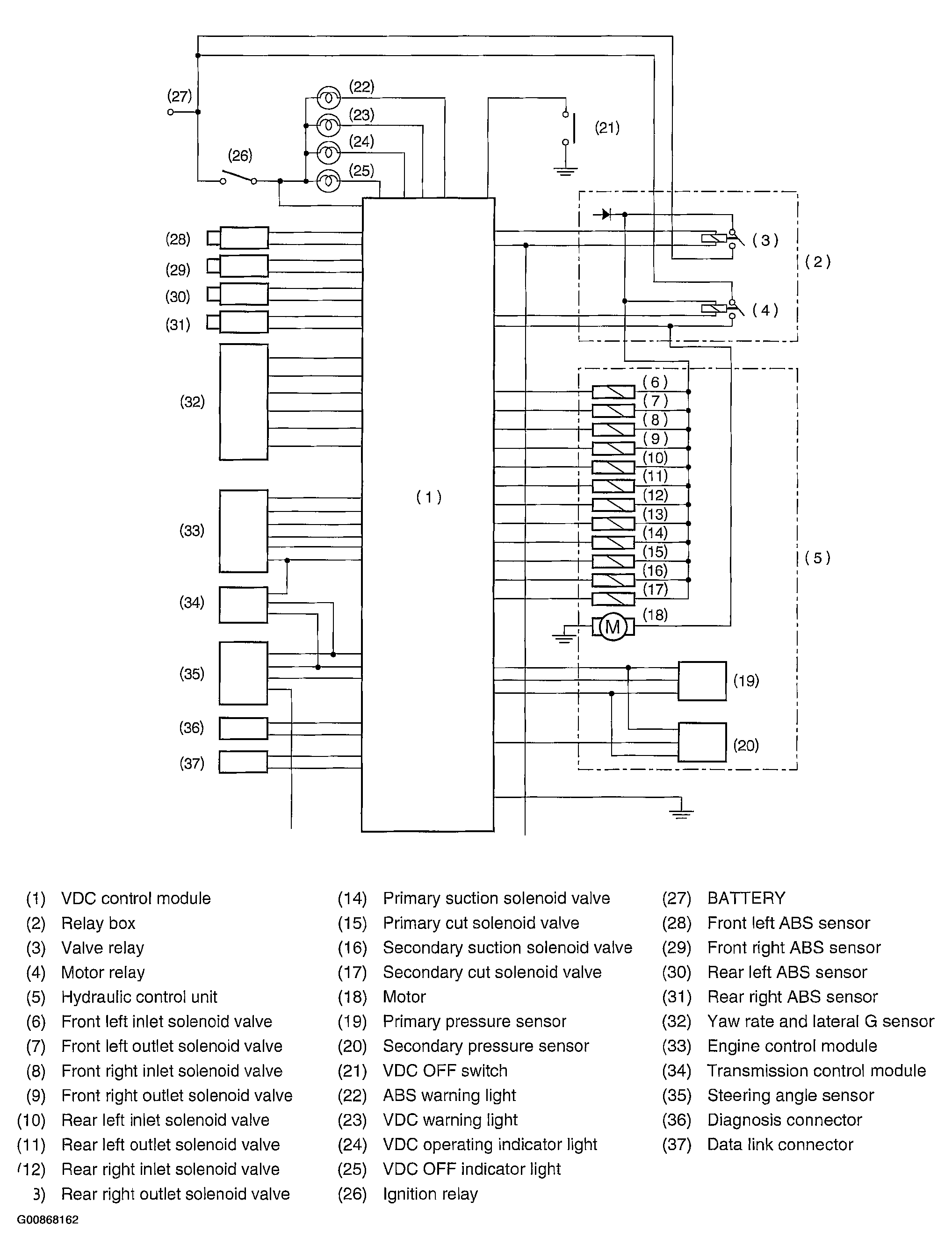

Fig 1: Control Module I/O Schematic Diagram
G00868162Courtesy of SUBARU OF AMERICA, INC.
