MT Gear Shift Lever: Installation

Install the joint to transmission and secure with the spring pin.
Insert the gear shift lever from room side.
NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.

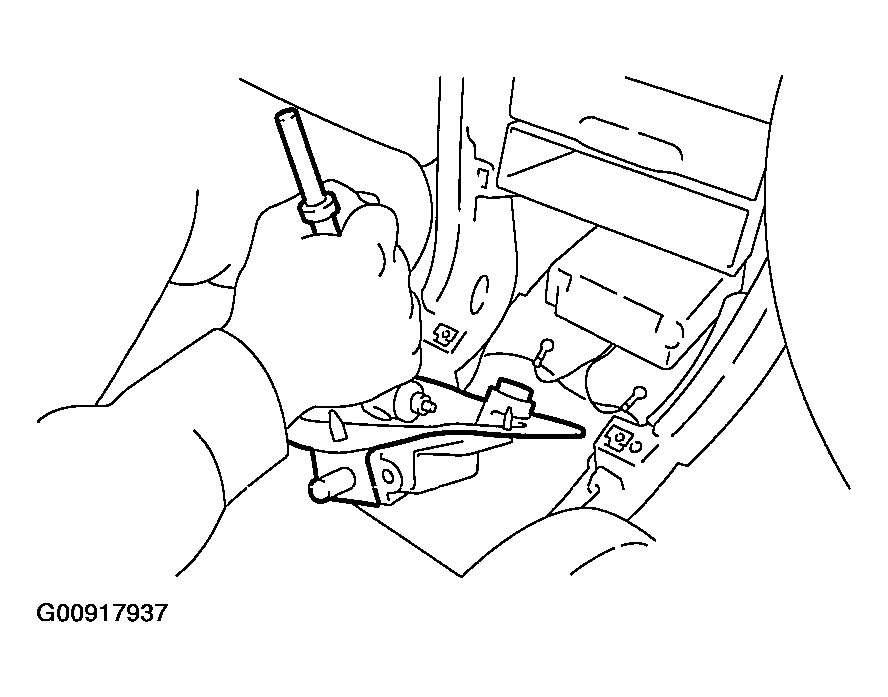

Fig 1: Inserting Gear Shift Lever From Room Side
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the joint to shifter arm.
Insert the spring pin.

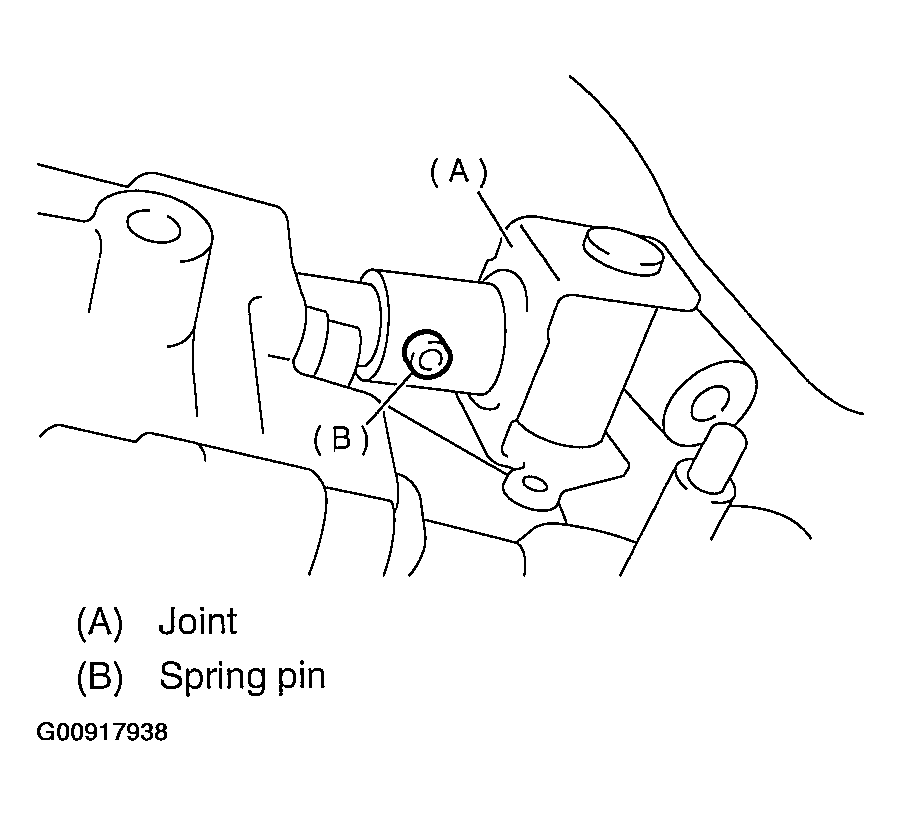

Fig 2: Inserting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the body.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

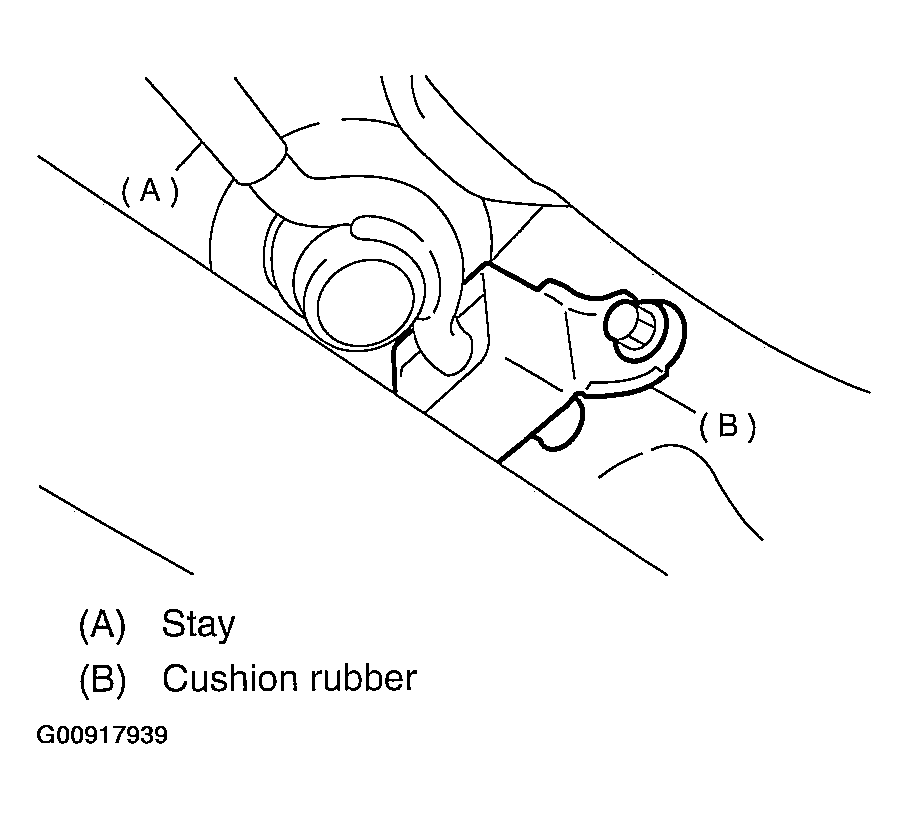

Fig 3: Mounting Cushion Rubber On Body
Courtesy of SUBARU OF AMERICA, INC.
Connect the rod to the joint.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

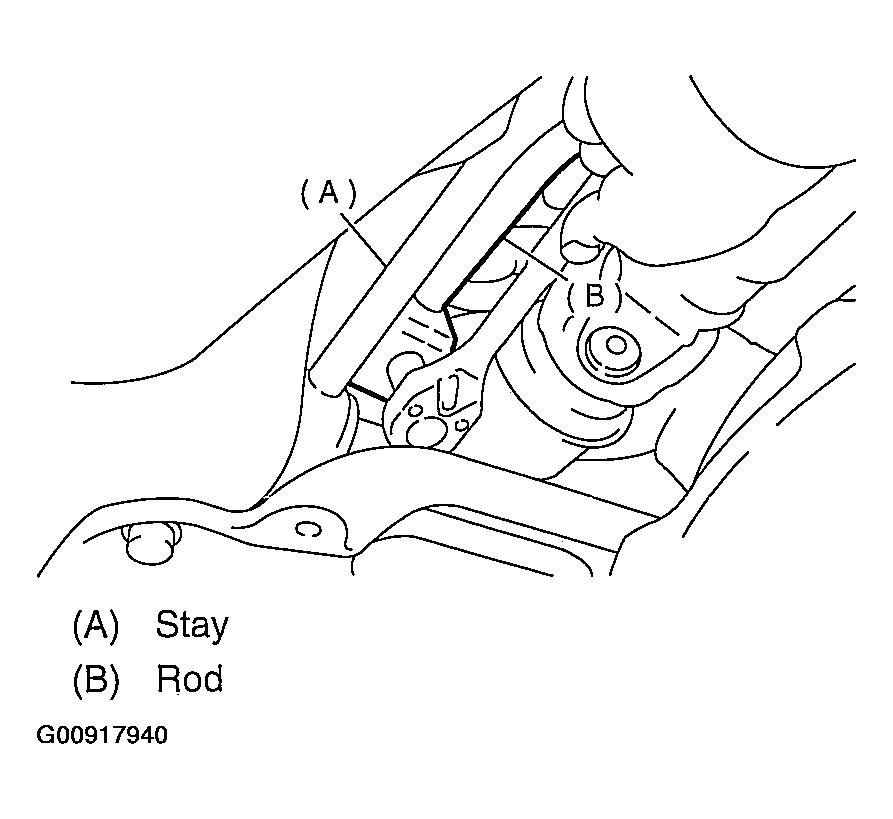

Fig 4: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.
Connect the stay to transmission bracket.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

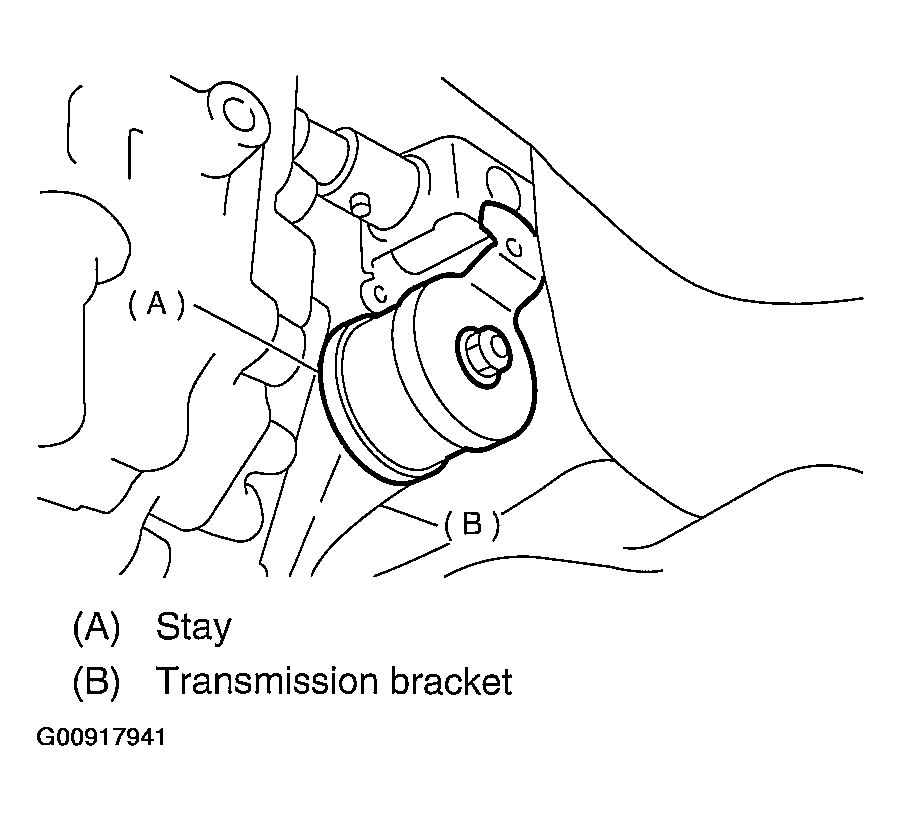

Fig 5: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Except 2.5 L U5 model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.

2.5 L U5 model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.

3.0 L model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.

TURBO model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
Lower the vehicle.
Install the plate ASSY to body.
1. Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

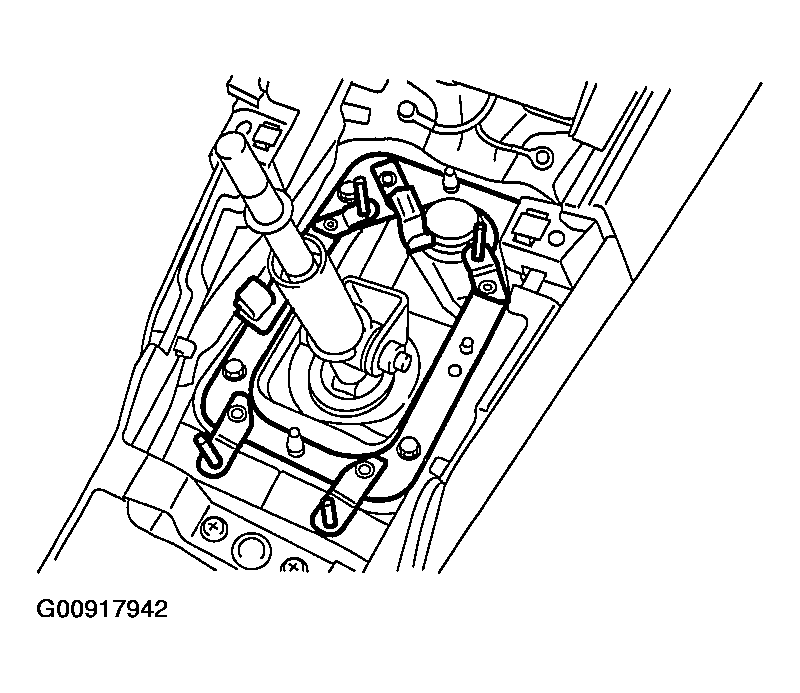

Fig 6: Installing Plate ASSY To Body
Courtesy of SUBARU OF AMERICA, INC.
Install the boot and insulator assembly to vehicle in proper direction.

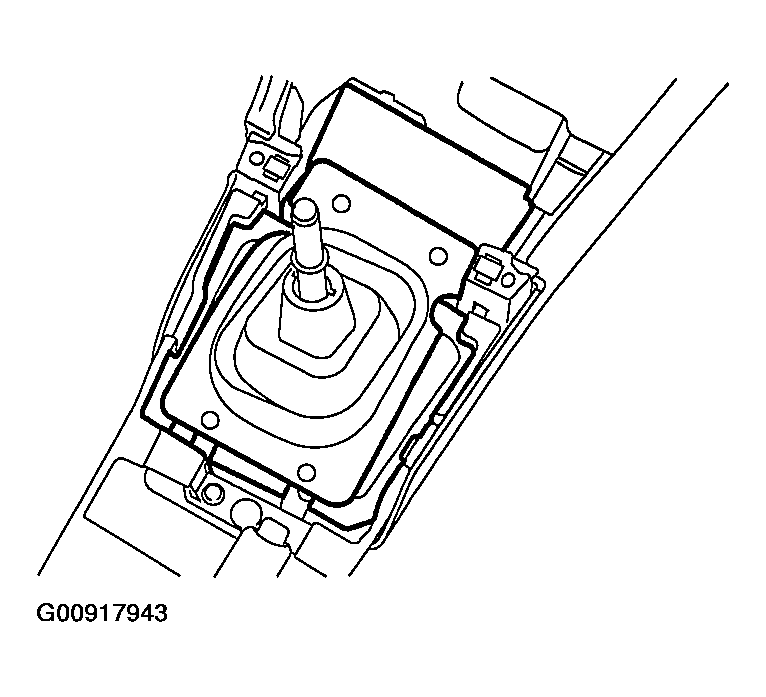

Fig 7: Installing Boot & Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp.
Install the console box. Refer to INSTALLATION , Console Box.
