Home >> Subaru >> 2004 >> Baja Base, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> AT Shift Lock System >> Key Interlock Does Not Lock Or Release >> Wiring Diagram:

Wiring Diagram:

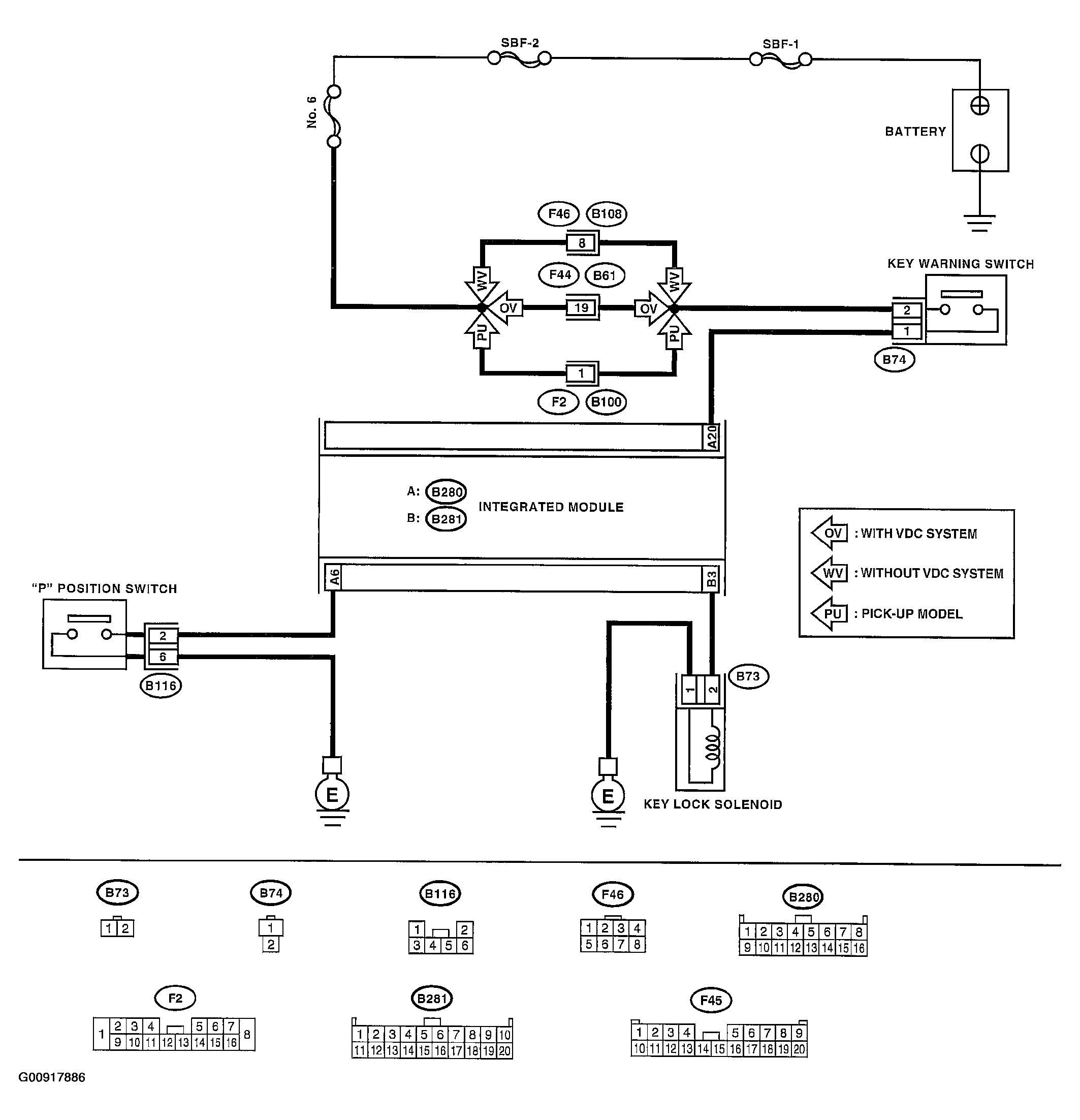

Fig 1: Key Interlock Does Not Lock Or Release Wiring Diagram
G00917886Courtesy of SUBARU OF AMERICA, INC.

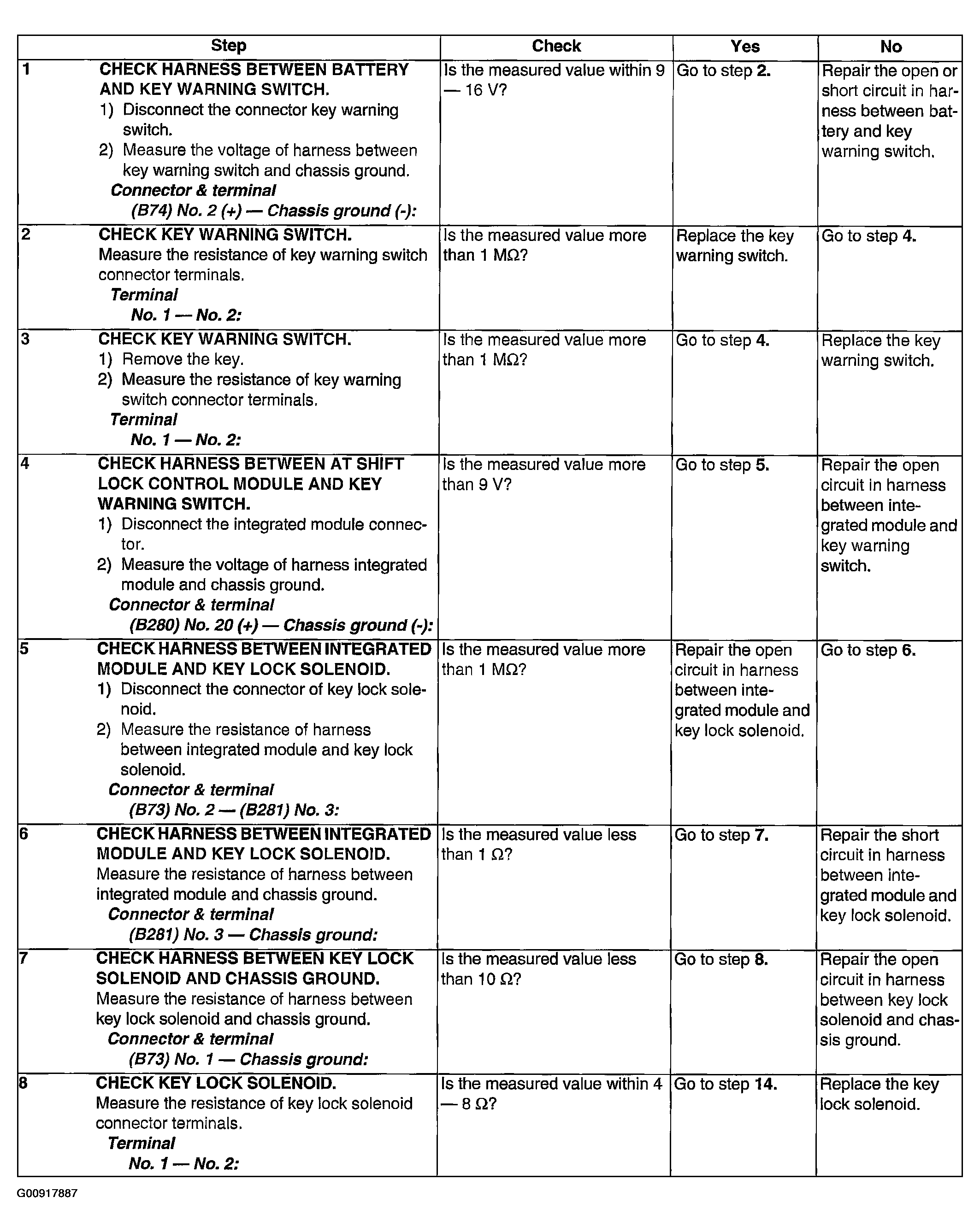

Fig 2: Inspection Chart (1 Of 2)
G00917887Courtesy of SUBARU OF AMERICA, INC.

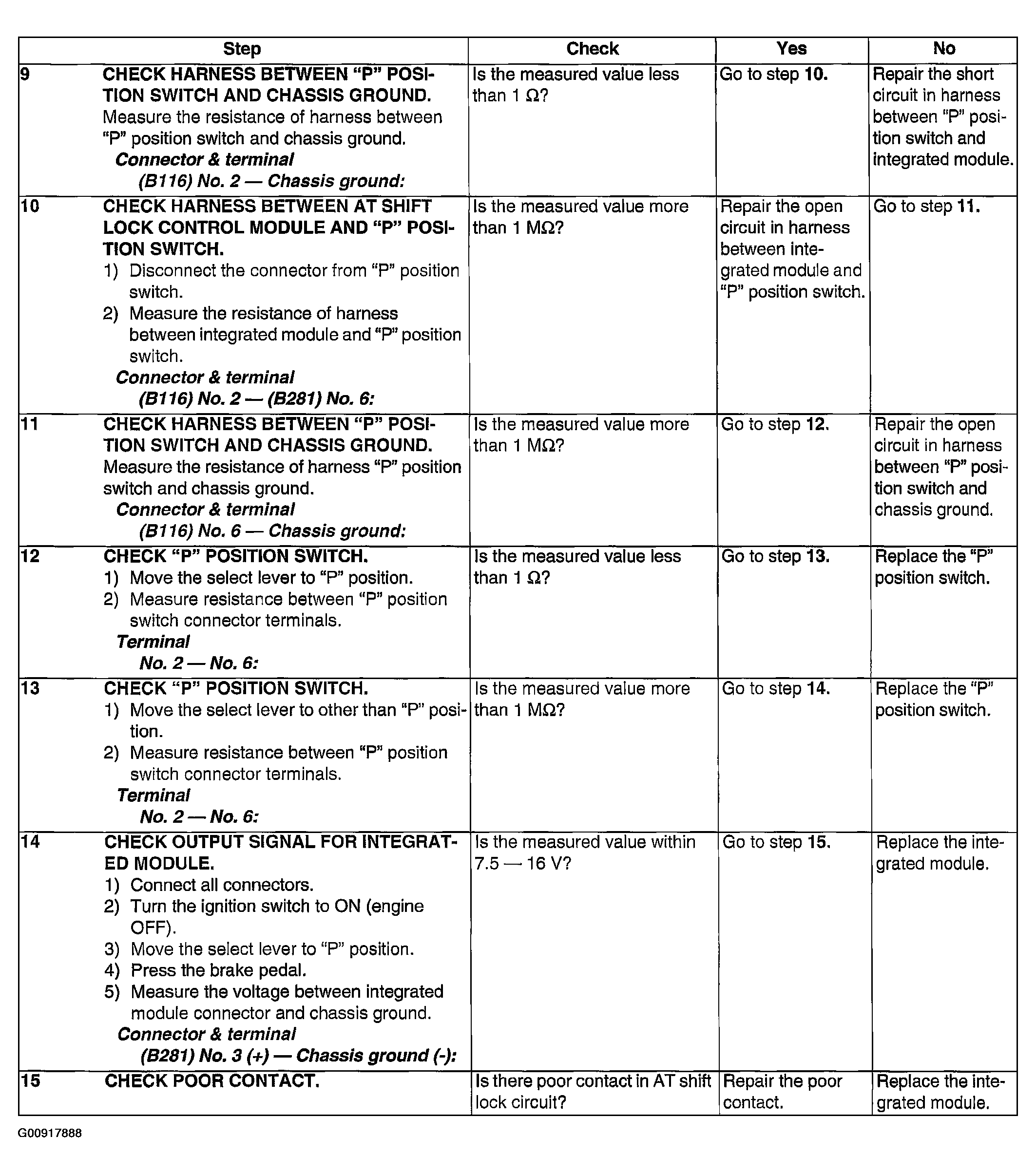

Fig 3: Inspection Chart (2 Of 2)
G00917888Courtesy of SUBARU OF AMERICA, INC.
