Subaru
>>
2004
>>
Baja Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
A/T & M/T Control Systems
>>
AT Shift Lock System
>>
Integrated Module Power Supply And Ground Line
>>
Wiring Diagram:
Wiring Diagram:

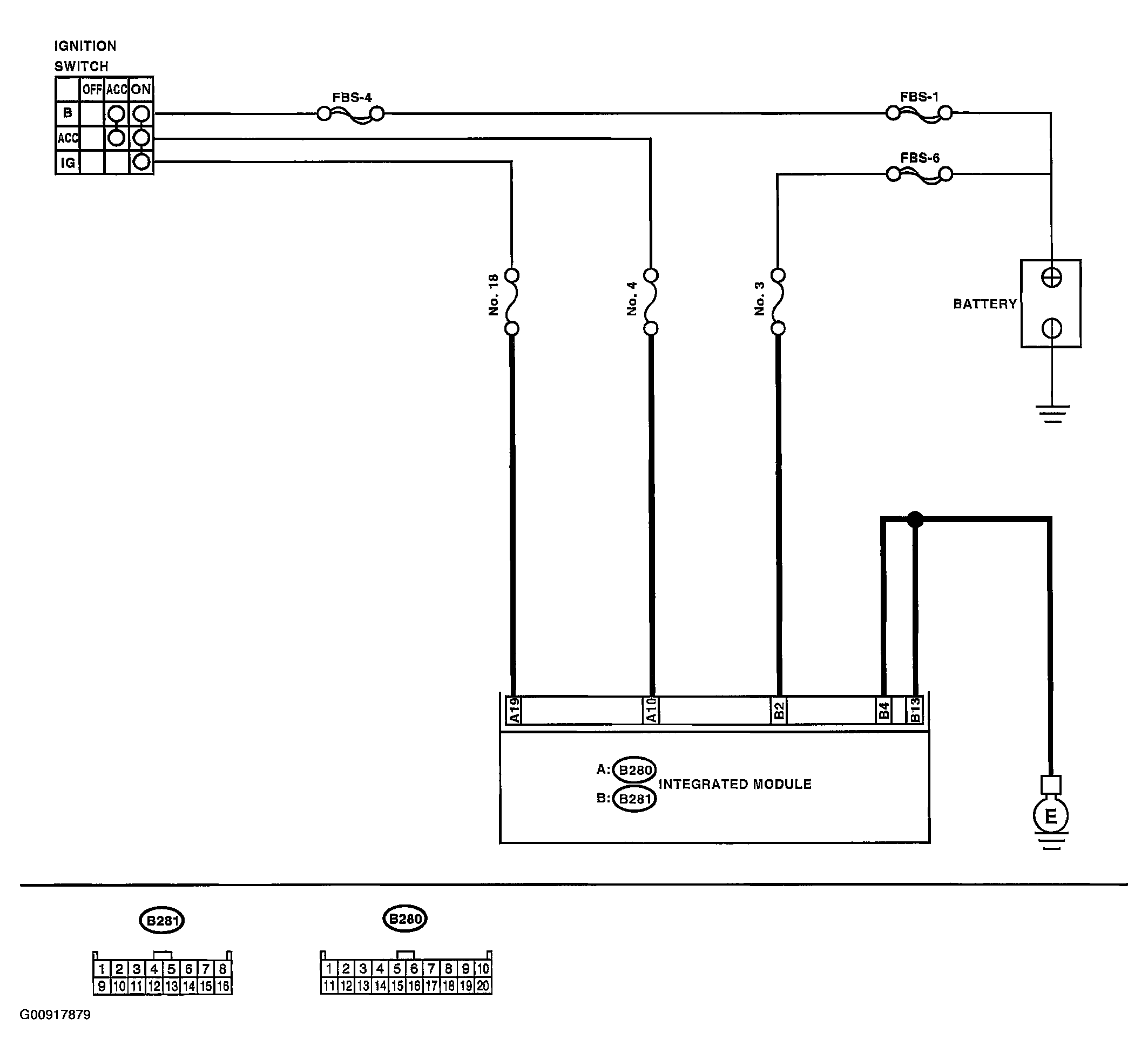

Fig 1: Integrated Module Power Supply & Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

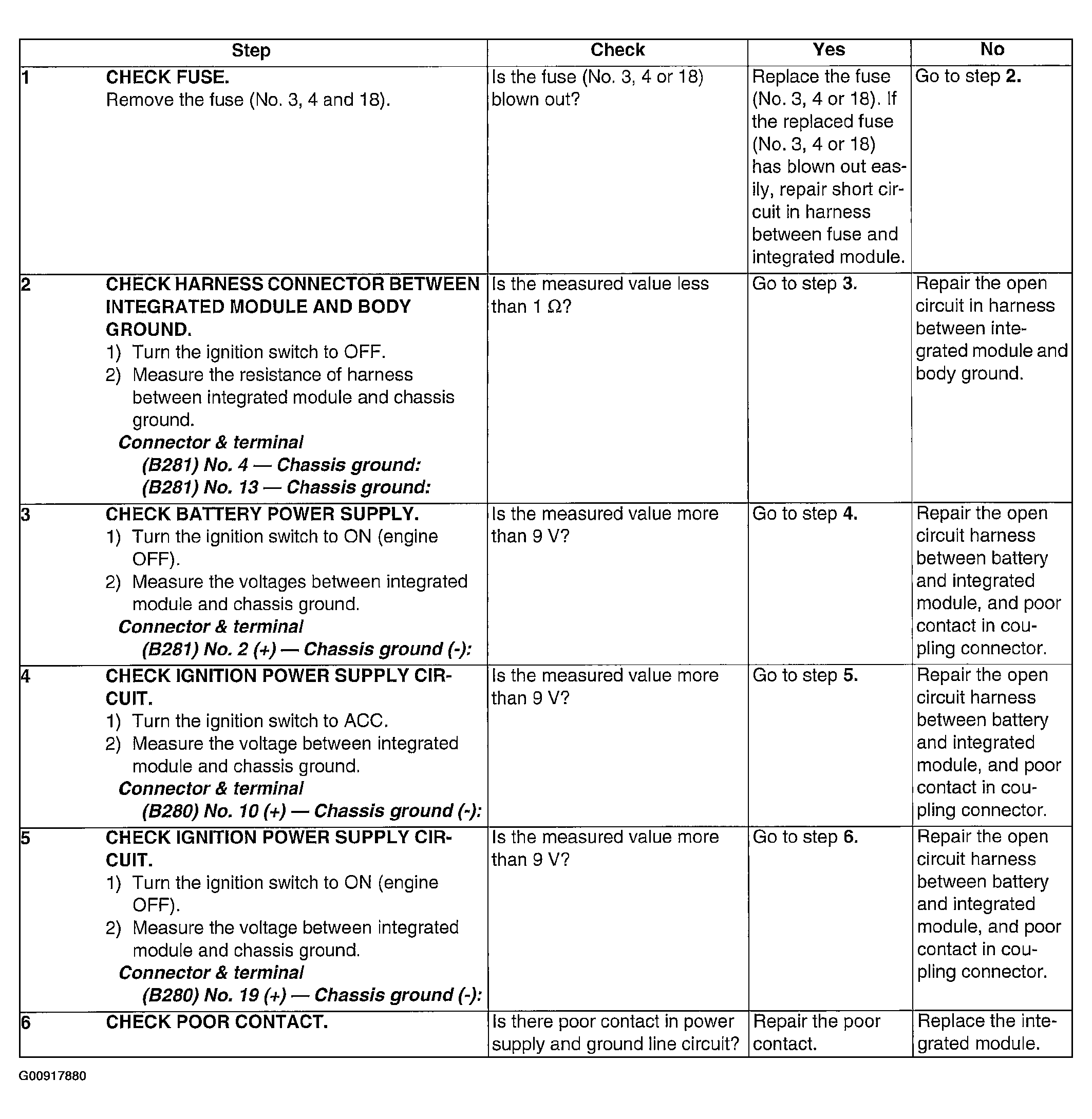

Fig 2: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
