AT Shift Lock System
>>
Electrical Specification
Electrical Specification

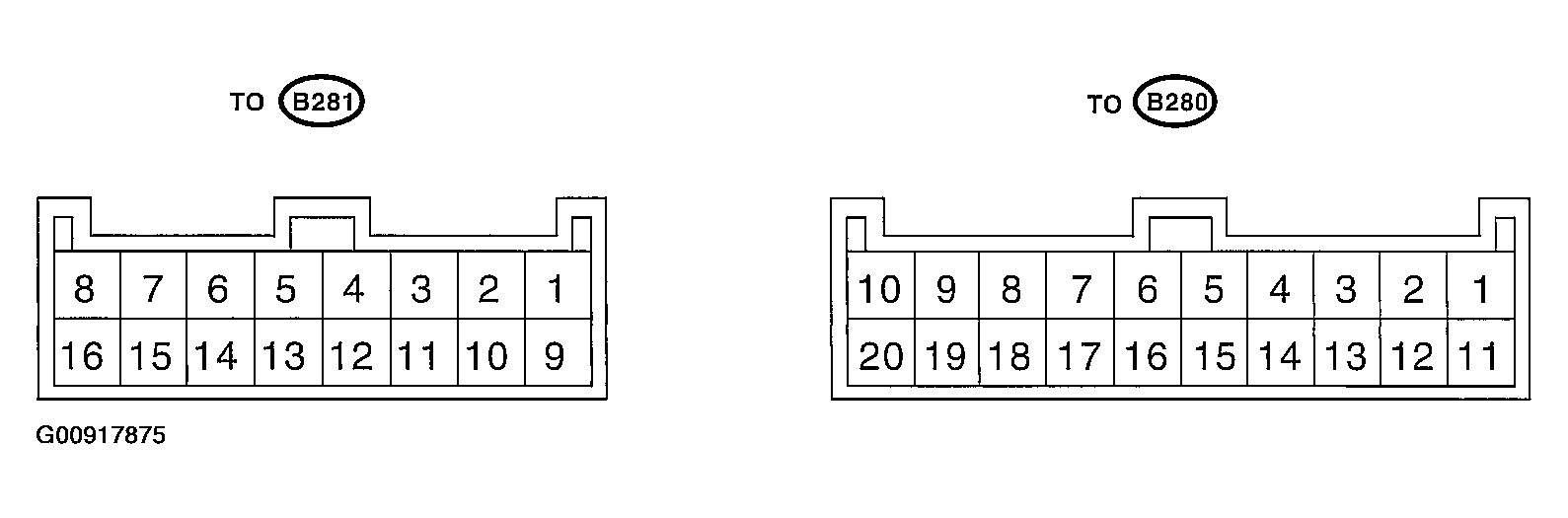

Fig 1: AT Shift Lock System Connector
Courtesy of SUBARU OF AMERICA, INC.

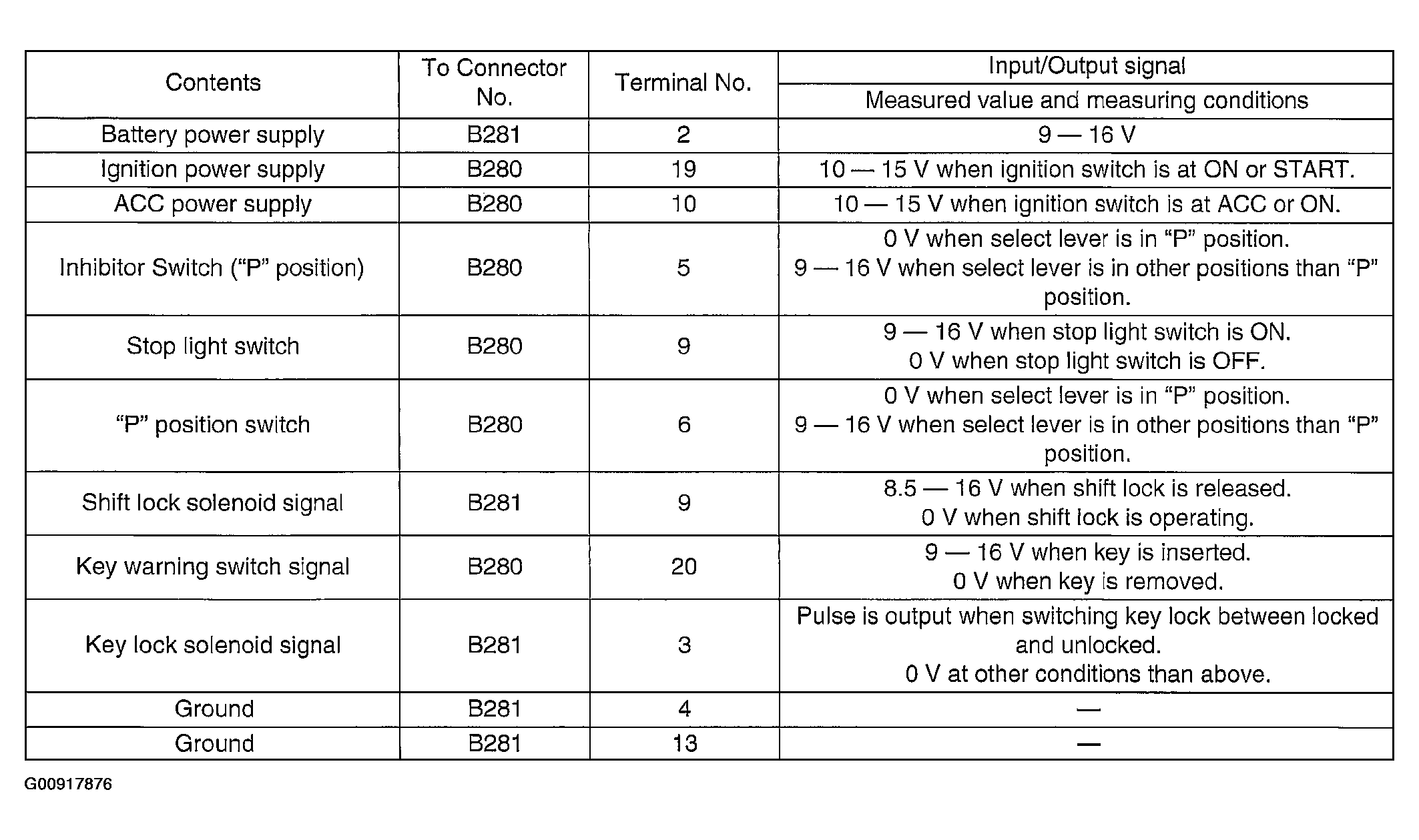

Fig 2: AT Shift Lock System Reference Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
