Home >> Subaru >> 2004 >> Baja Base, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> AT Shift Lock Solenoid and "P" Position Switch >> Inspection

AT Shift Lock Solenoid and "P" Position Switch: Inspection

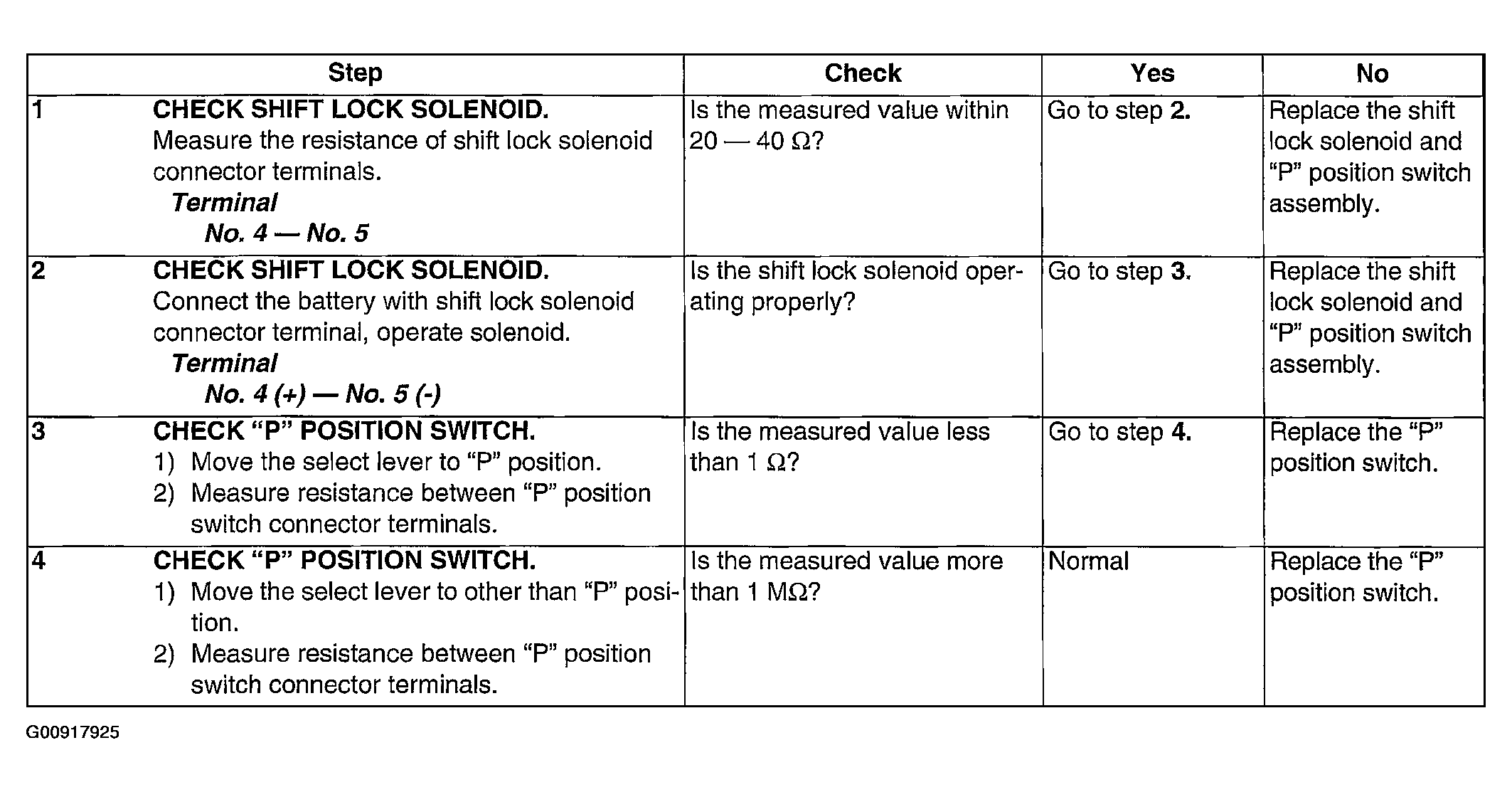

Fig 1: Inspection Chart

G00917925

Courtesy of SUBARU OF AMERICA, INC.
