2-4 Brake Duty Solenoid

This solenoid is mounted on the transmission hydraulic control valve body. Its duty ratio is controlled by signals from the TCM. It modulates the 2-4 brake pressure when the 2-4 brake is operated, reducing shifting shocks.

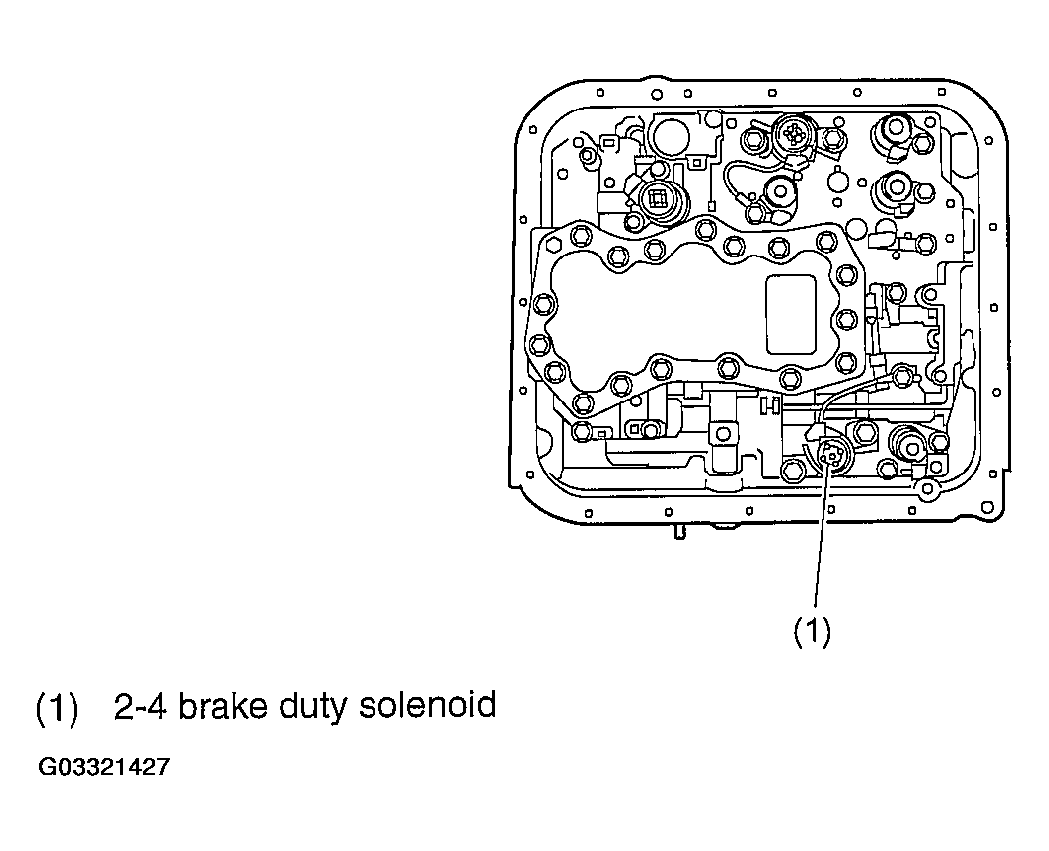

Fig 1: Identifying 2 - 4 Brake Duty Solenoid
G03321427Courtesy of SUBARU OF AMERICA, INC.


This solenoid is mounted on the transmission hydraulic control valve. Its duty ratio is controlled by signals from the TCM. It modulates the pressure applied to the 2-4 brake pressure when the 2-4 brake is operated to reduce shifting shocks.

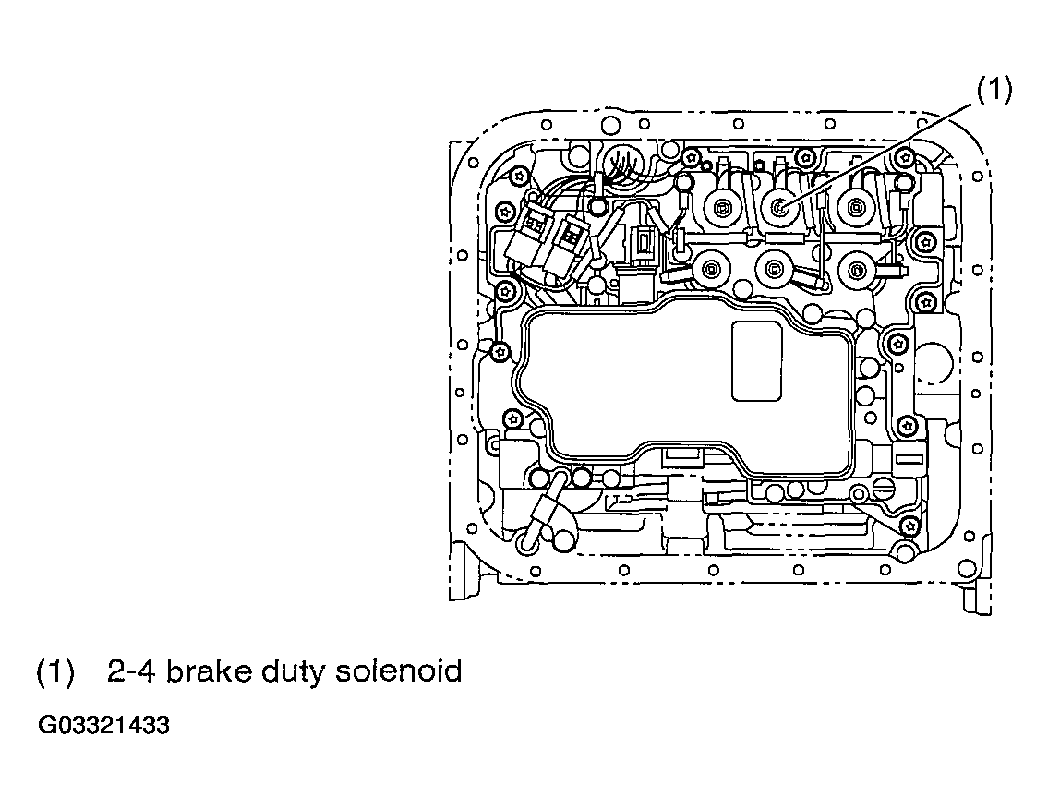

Fig 1: Identifying 2 - 4 Brake Duty Solenoid
G03321433Courtesy of SUBARU OF AMERICA, INC.
