Inhibitor Switch: Installation

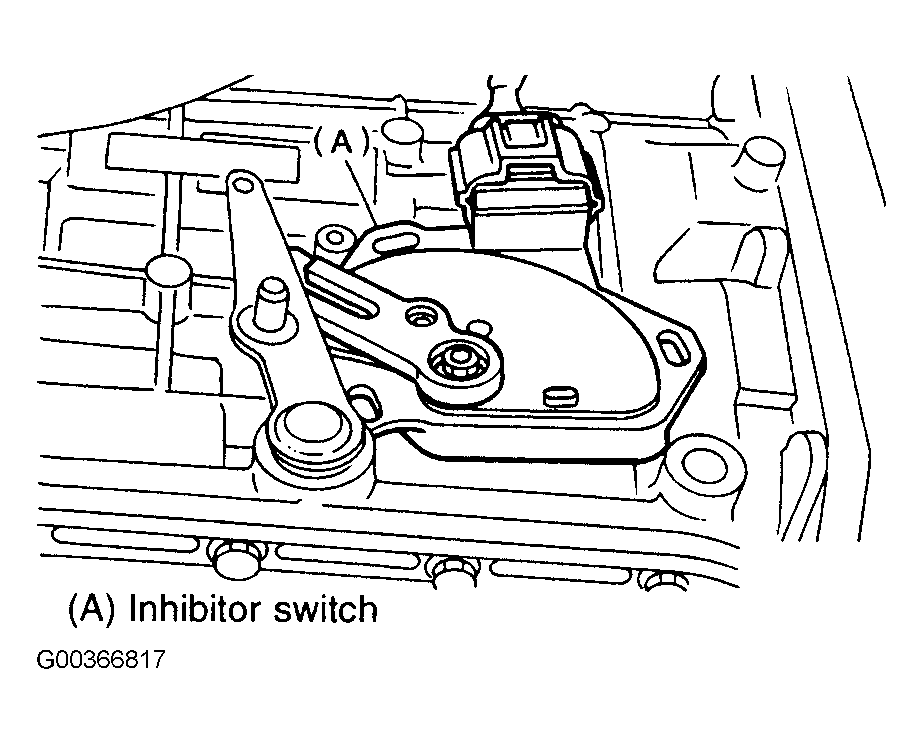

  1. Install inhibitor switch to transmission case. See Figure .
  2. Move range select lever to neutral position.

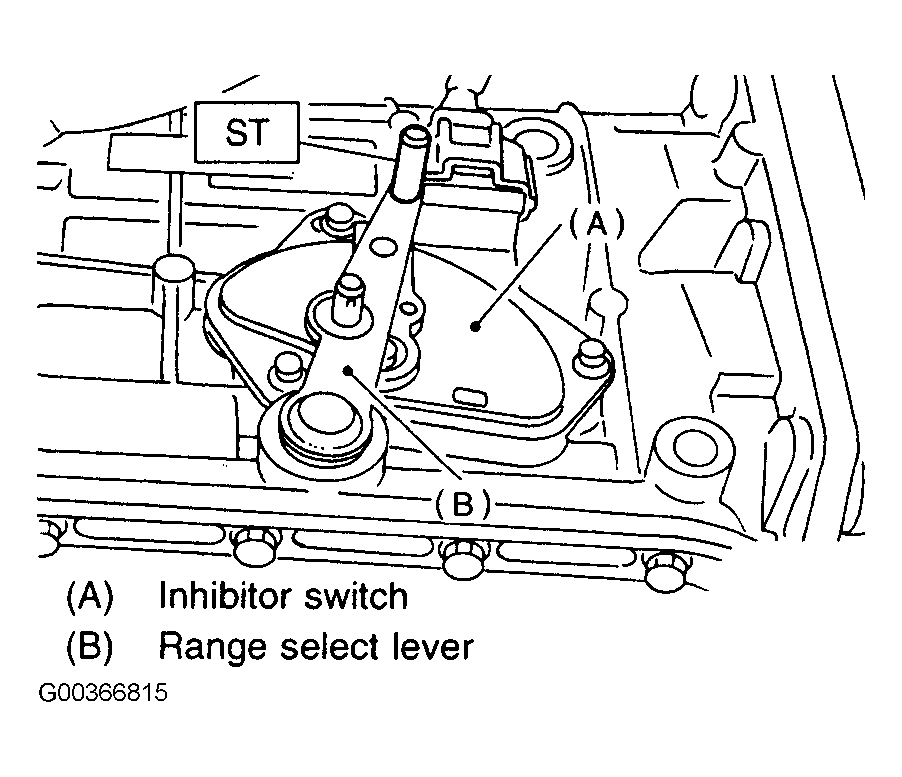

  3. Using stopper pin, tighten bolts of inhibitor switch. See Figure .
  4. Install select cable to range select lever.

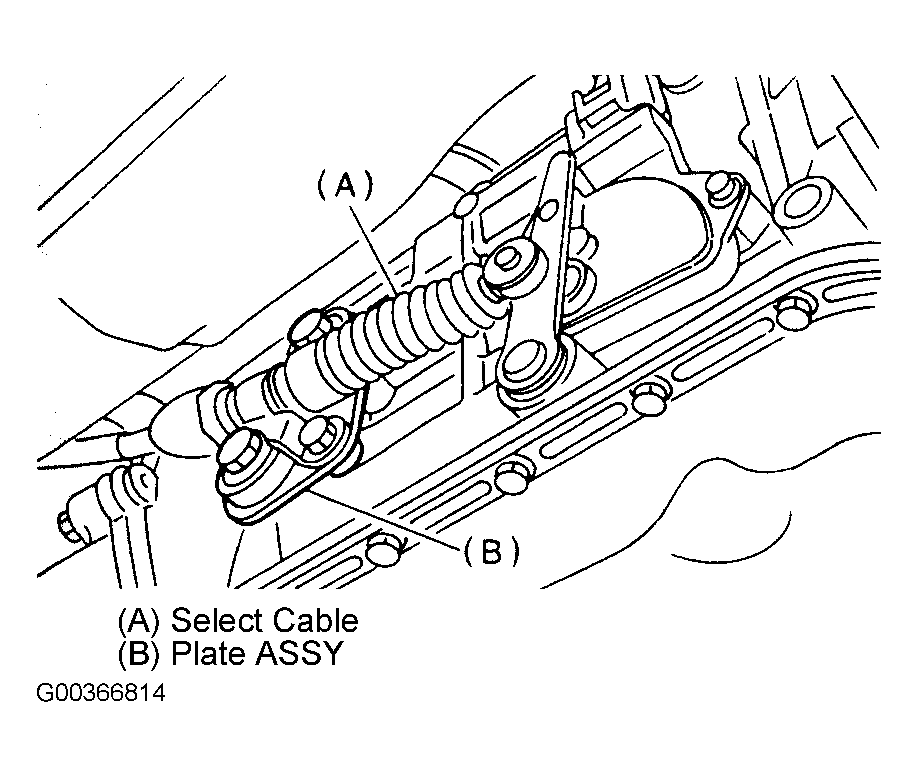

  5. Install plate assembly to transmission. See Figure .

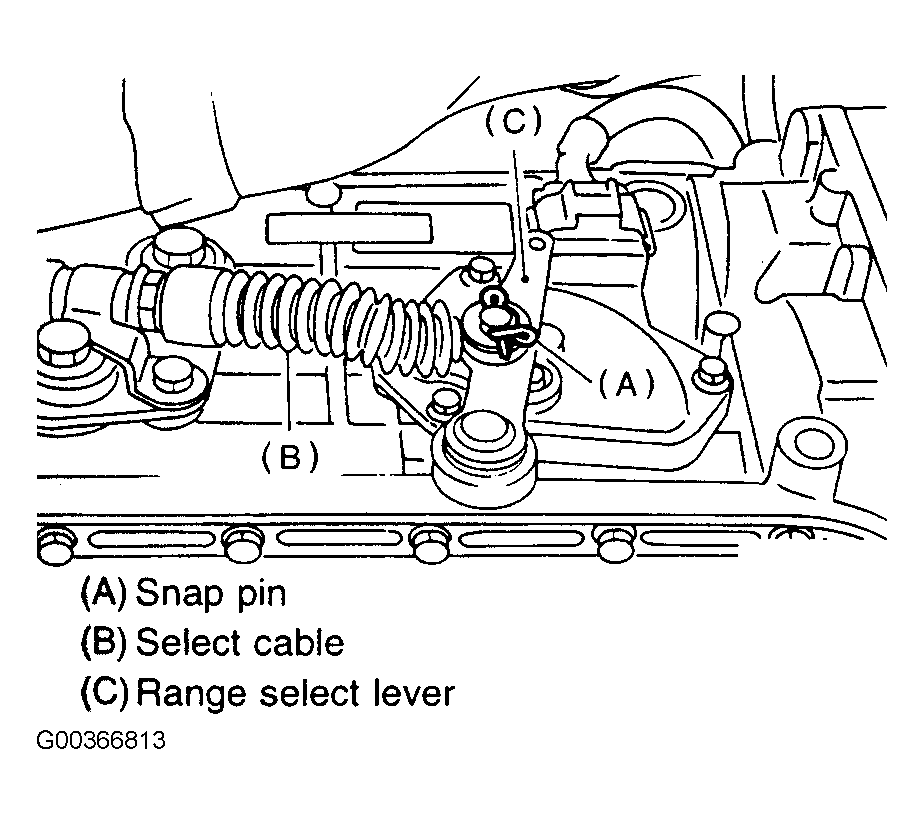

  6. Install snap pin to range select lever. See Figure .
  7. Install center exhaust pipe.

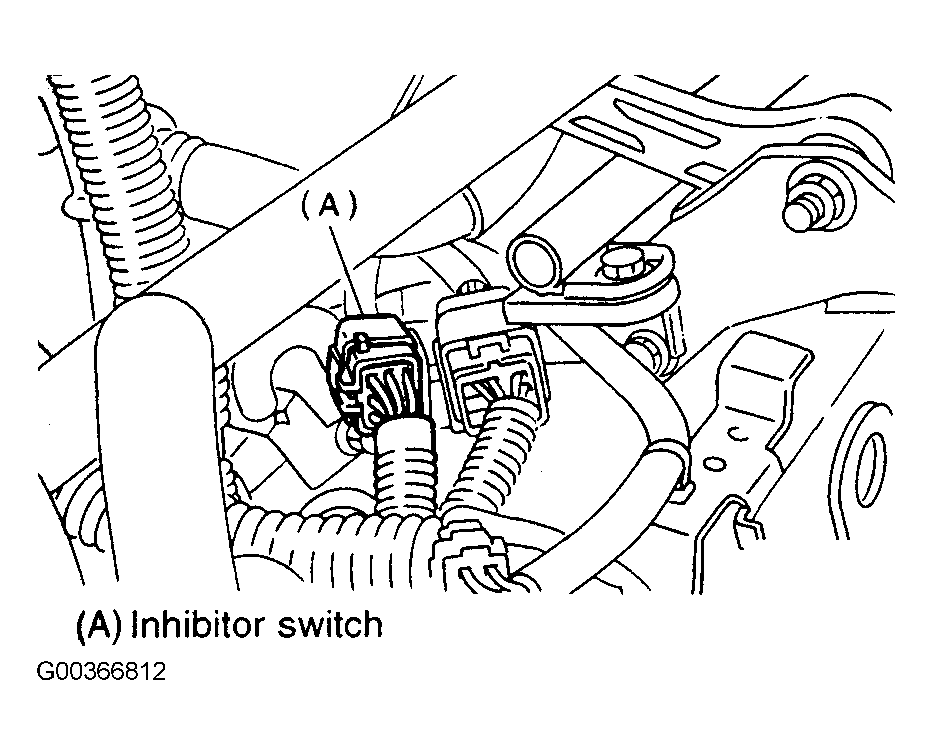

  8. Connect inhibitor switch connector. See Figure .
  9. Install air intake chamber and duct.
