BAJA (Pickup): Electrical

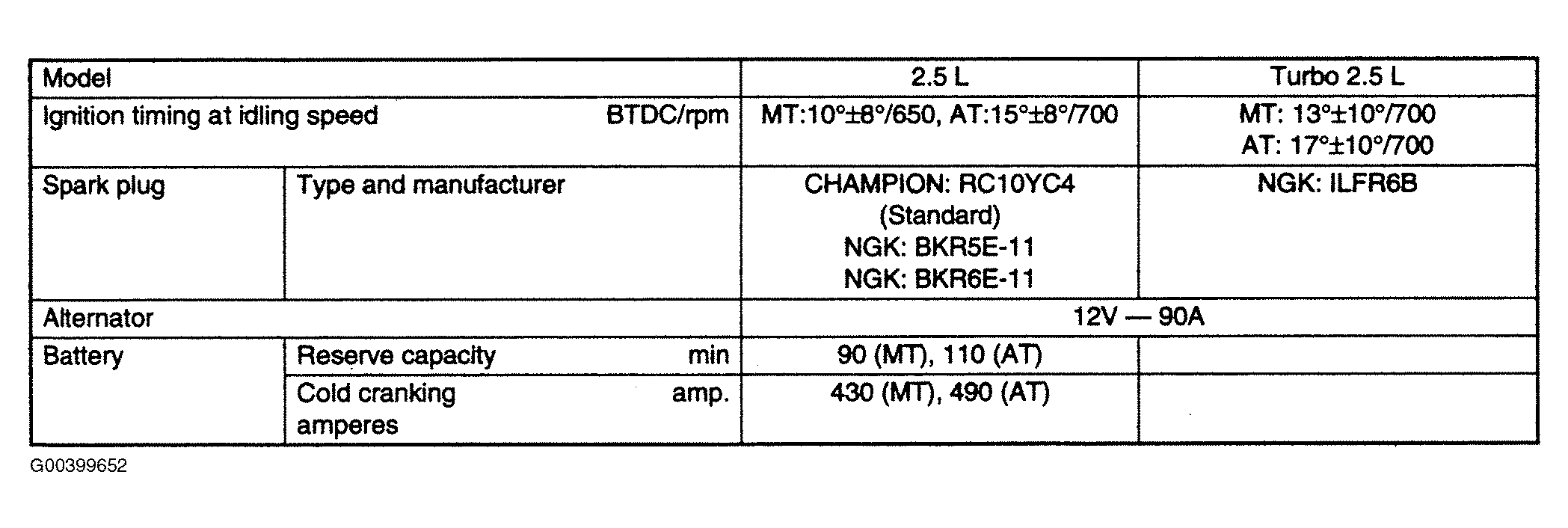

Fig 1: Electrical Specifications Chart
G00399652Courtesy of SUBARU OF AMERICA, INC.
