Idle Air Control Solenoid Valve: Removal

  1. Disconnect ground cable from battery.

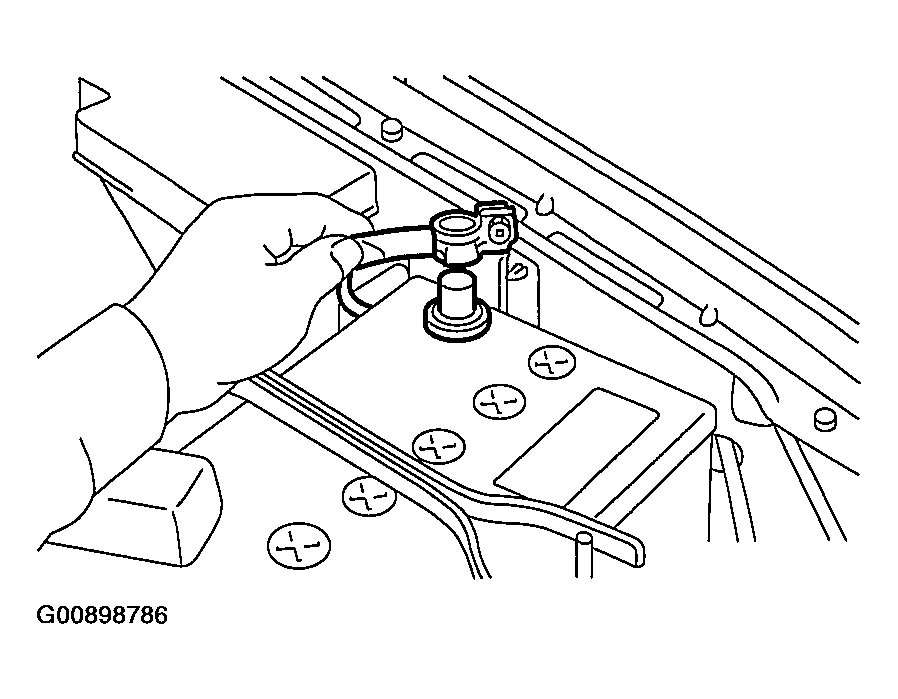

    Fig 1: Disconnecting Ground Cable From Battery
    G00898786Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from idle air control solenoid valve.
    Fig 2: Disconnecting Connector From Idle Air Control Solenoid Valve
    G00898787Courtesy of SUBARU OF AMERICA, INC.
  3. Remove idle air control solenoid valve from throttle body.
    Fig 3: Removing Idle Air Control Solenoid Valve From Throttle Body
    G00898788Courtesy of SUBARU OF AMERICA, INC.
