LH Side

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open fuel flap lid, and remove fuel filler cap.
Disconnect battery ground cable.

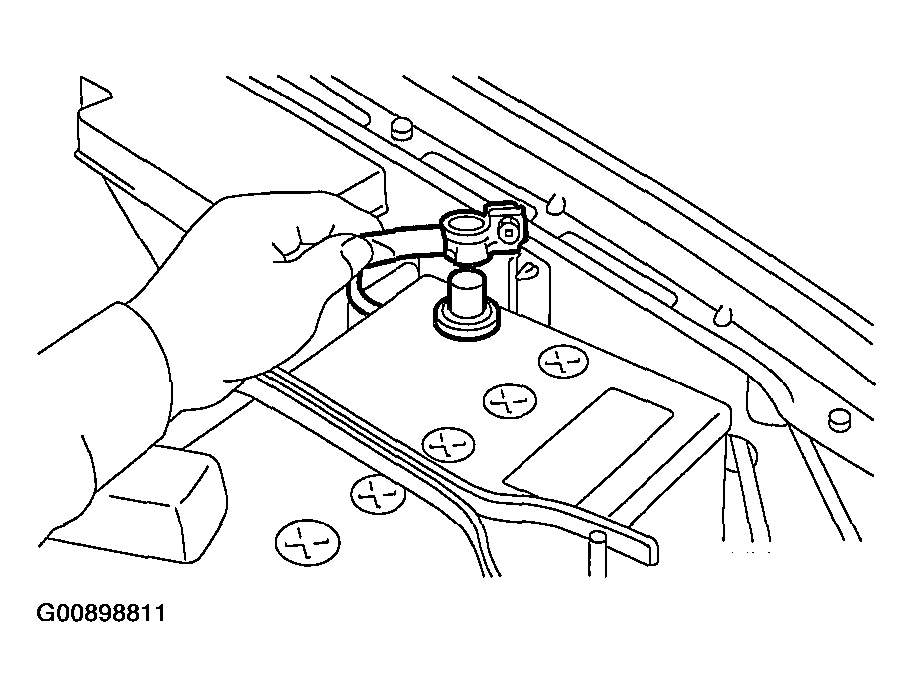

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install washer tank on body.

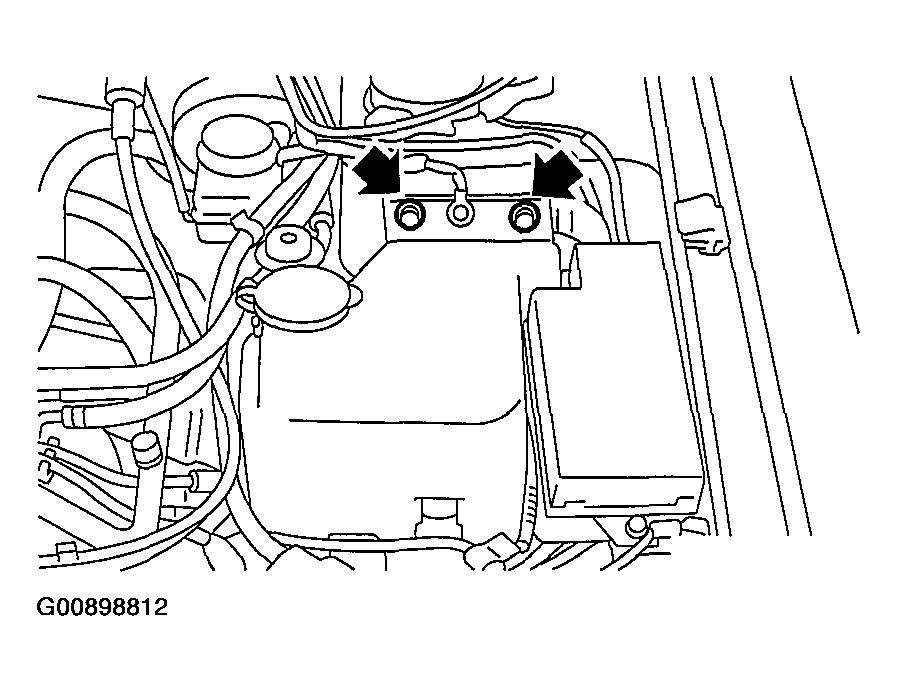

Fig 2: Removing Two Bolts Which Install Washer Tank On Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.
Disconnect connector from rear gate glass washer motor.

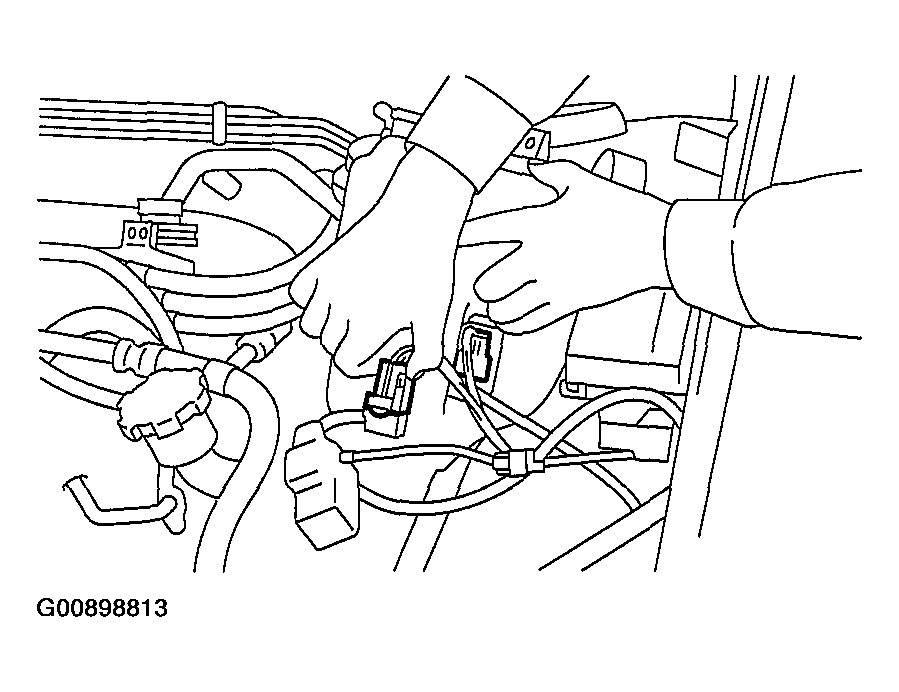

Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor & Front Window Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Move washer tank, and secure it away from working area.

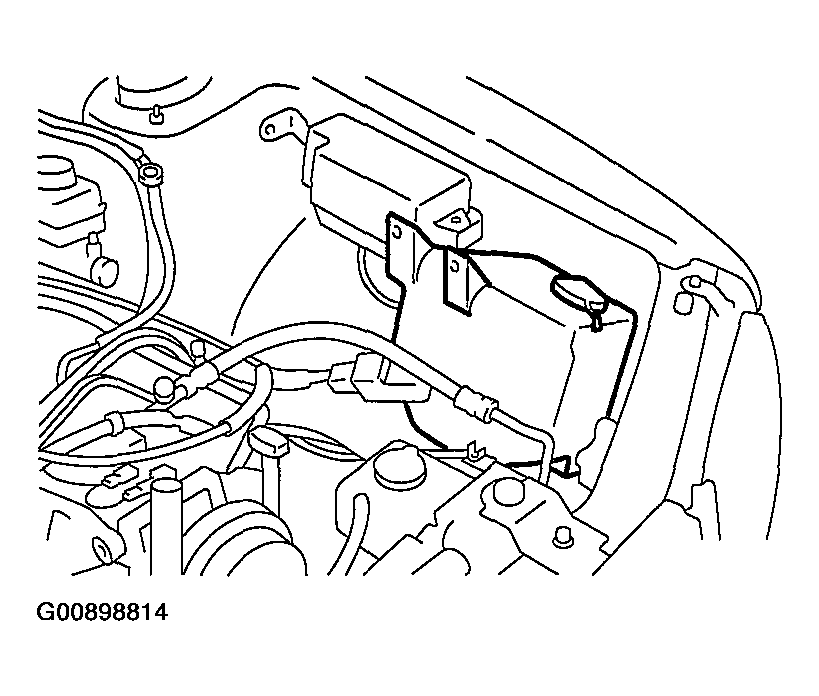

Fig 4: Removing Washer Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug cords from spark plugs (#2 and #4 cylinders).

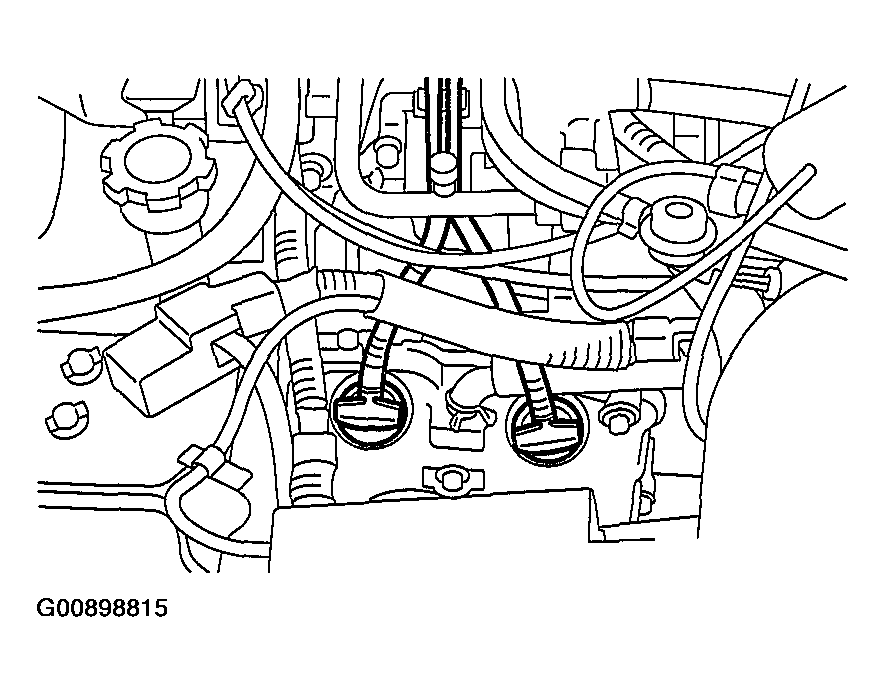

Fig 5: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector LH.

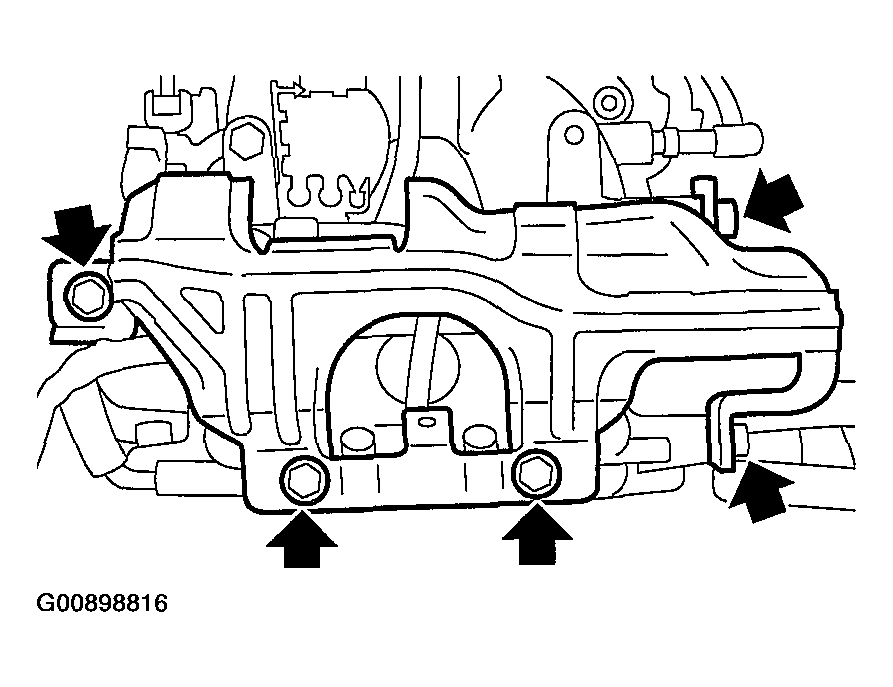

Fig 6: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel injector.

Fig 7: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds injector pipe to intake manifold.

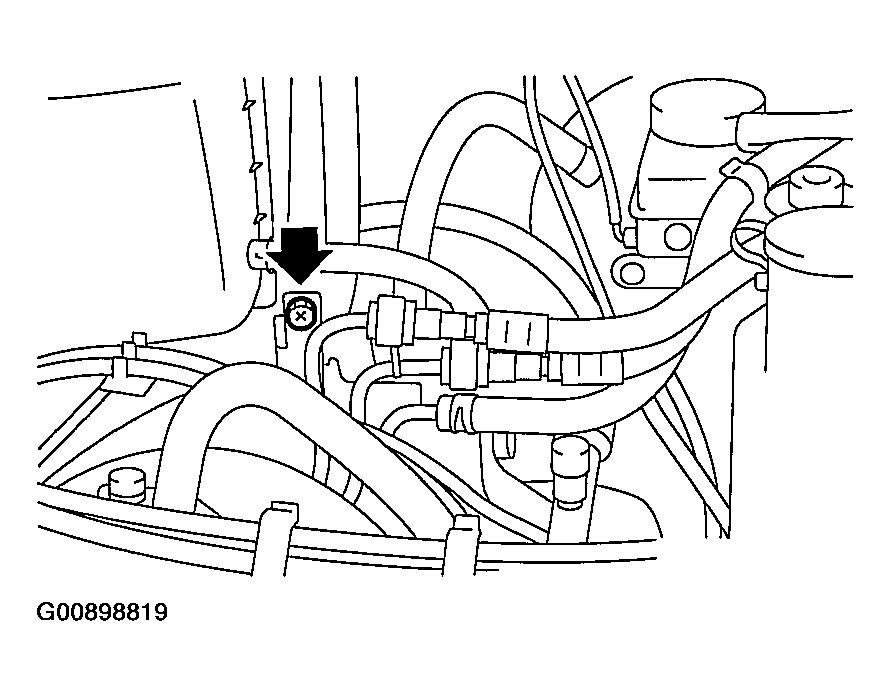

Fig 8: Removing Bolt Which Holds Injector Pipe To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds fuel pipe on the left side intake manifold.

Fig 9: Removing Bolt Which Holds Fuel Pipe On Left Side Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip.

  Fig 10: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove fuel injector while lifting up fuel injector pipe.

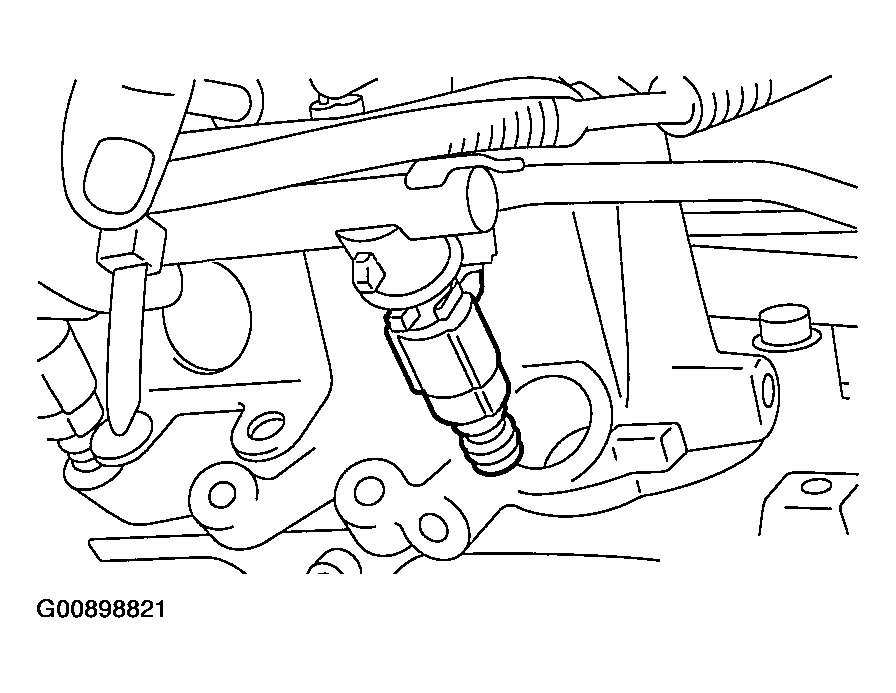

Fig 11: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
