Fuel Filler Pipe: Disassembly

  1. Disconnect evaporation hose from evaporation pipe assembly.

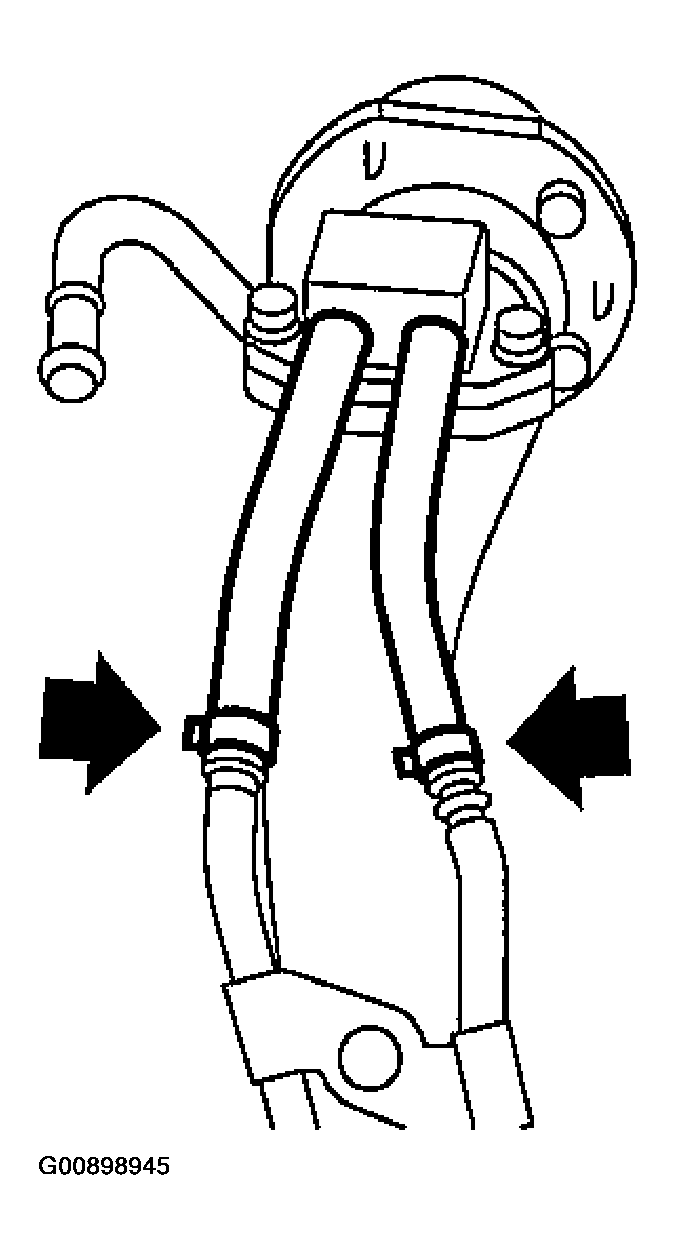

    Fig 1: Removing Evaporation Hose From Evaporation Pipe Assembly
    G00898945Courtesy of SUBARU OF AMERICA, INC.
  2. Remove shut valve from fuel filler pipe.

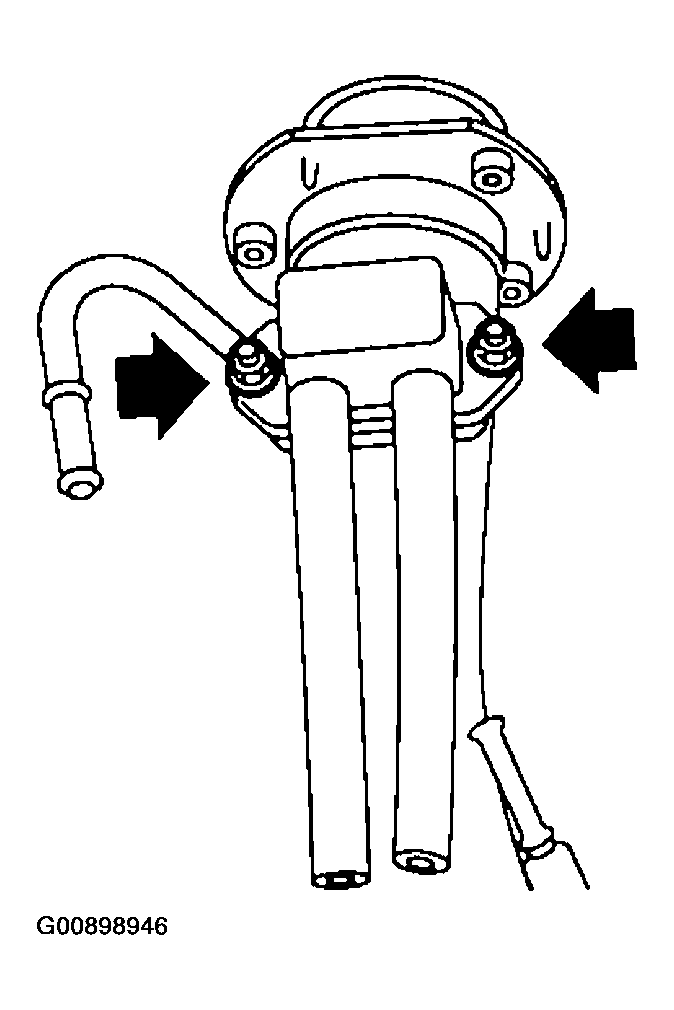

    Fig 2: Removing Shut Valve From Fuel Filler Pipe
    G00898946Courtesy of SUBARU OF AMERICA, INC.
  3. Remove nut which holds evaporation pipe assembly on fuel filler pipe.

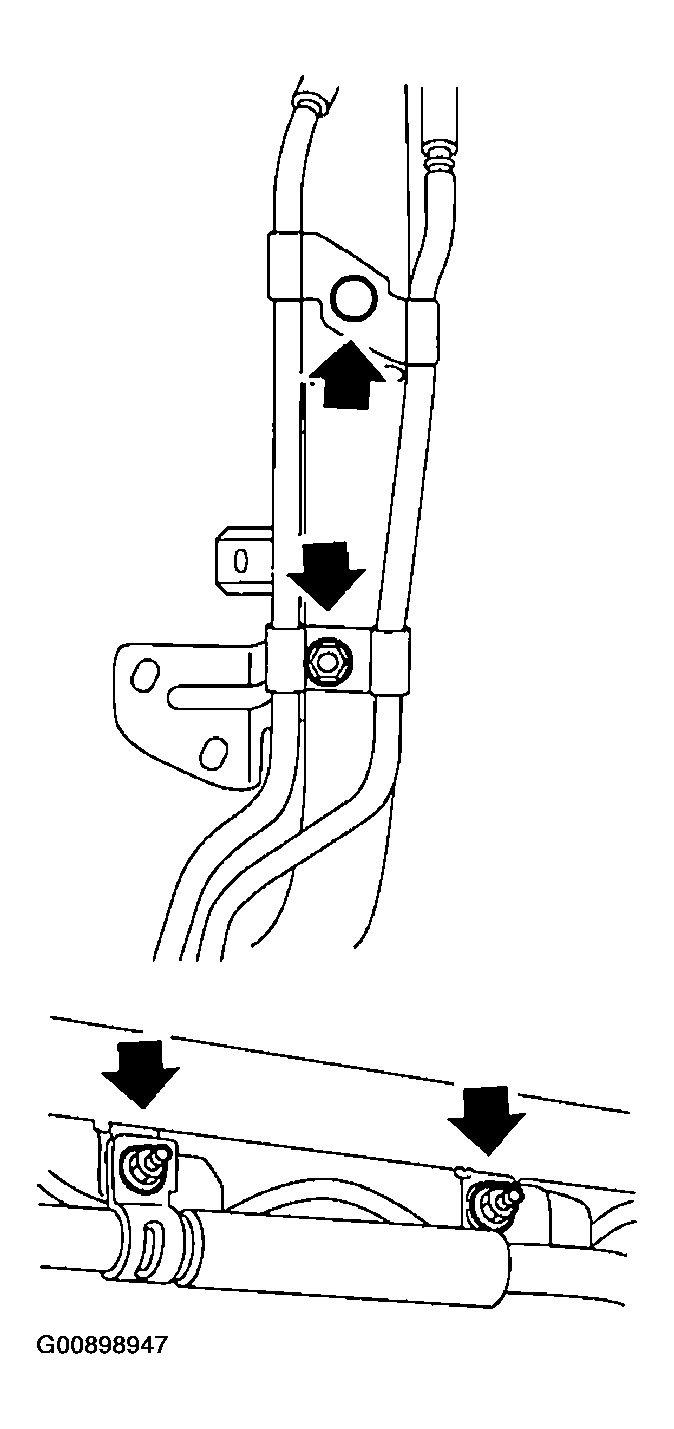

    Fig 3: Removing Nut Holding Evaporation Pipe Assembly On Fuel Filler Pipe
    G00898947Courtesy of SUBARU OF AMERICA, INC.
