Removal & Installation: INTERCOOLER: Removal

1. Disconnect PCV hose from PCV pipe. See Fig 1.
2. Remove PCV pipe from intercooler. See Fig 2.
3. Disconnect hose from air bypass valve. See Fig 3.
4. Remove bolt which secure intercooler to bracket. See Fig 4.
5. Loosen clamp (A) which connects turbocharger and intercooler duct. See Fig 5.
6. Loosen clamp (B) which connects throttle body and intercooler.
7. Disconnect intercooler duct from turbocharger.
8. Remove intercooler from throttle body.

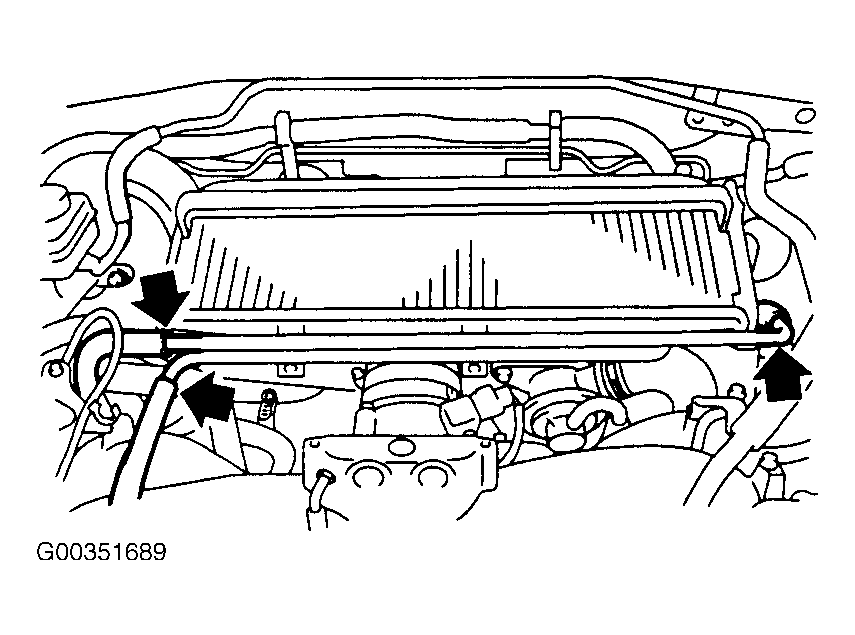

Fig 1: Disconnecting PCV Hose From PCV Pipe

Courtesy of SUBARU OF AMERICA, INC.

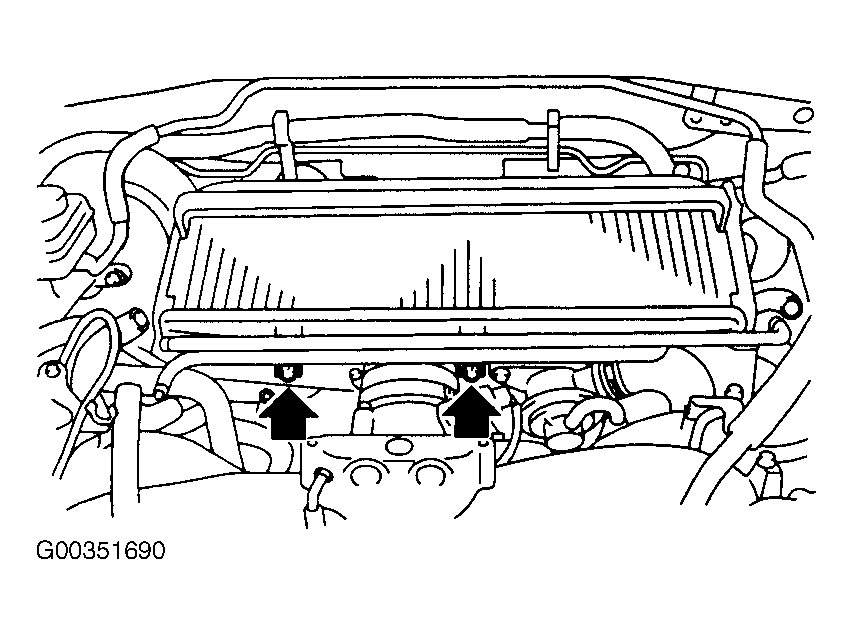

Fig 2: Removing PCV Pipe From Intercooler

Courtesy of SUBARU OF AMERICA, INC.

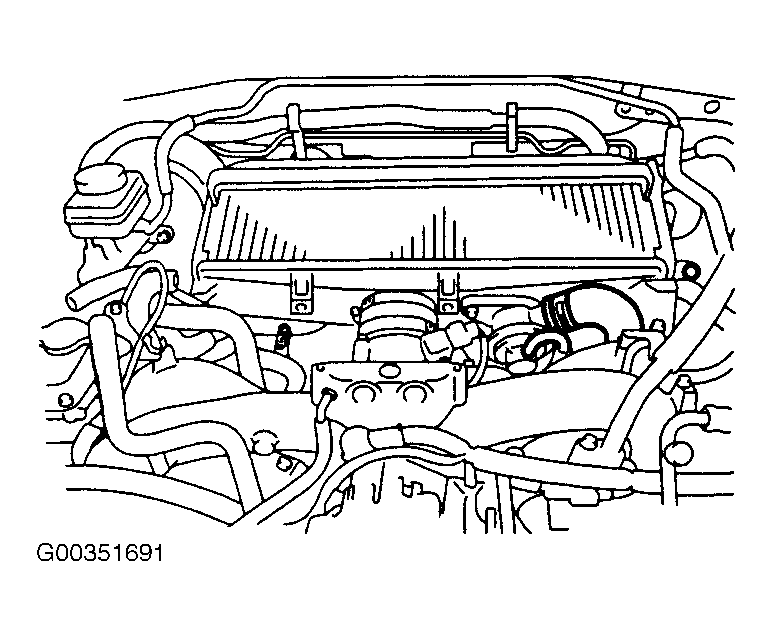

Fig 3: Disconnecting Hose From Air Bypass Valve

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Removing Bolt Securing Intercooler

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Locating Clamp Connecting Turbocharger & Intercooler

Courtesy of SUBARU OF AMERICA, INC.
