Belt Tension

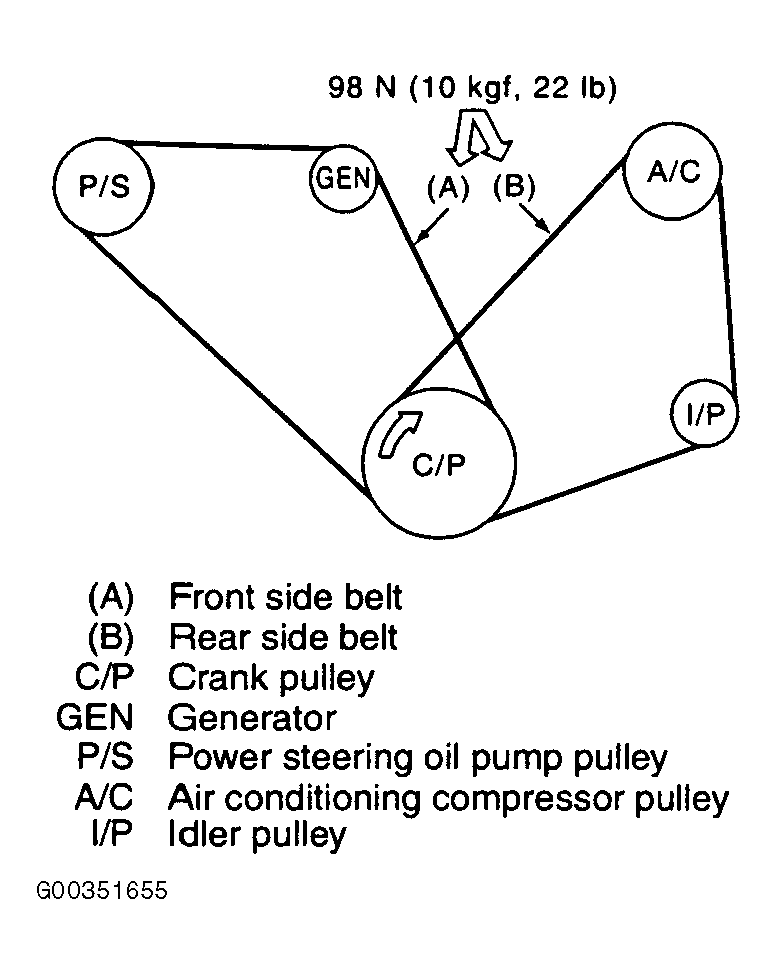

Measure deflection with 22 Lbs. (98 N) of force applied between generator and crankshaft pulley belt run. See Fig 1 . If deflection is not within specification, adjust belt. See BELT DEFLECTION table.
BELT DEFLECTION
| Application | In. (mm) |
|---|---|
| New | .276-.354 (7-9) |
| Used | .354-.433 (9-11) |
