Fuel Filler Pipe: Disassembly

  1. Disconnect evaporation hose (M) and (N) from evaporation pipe assembly.

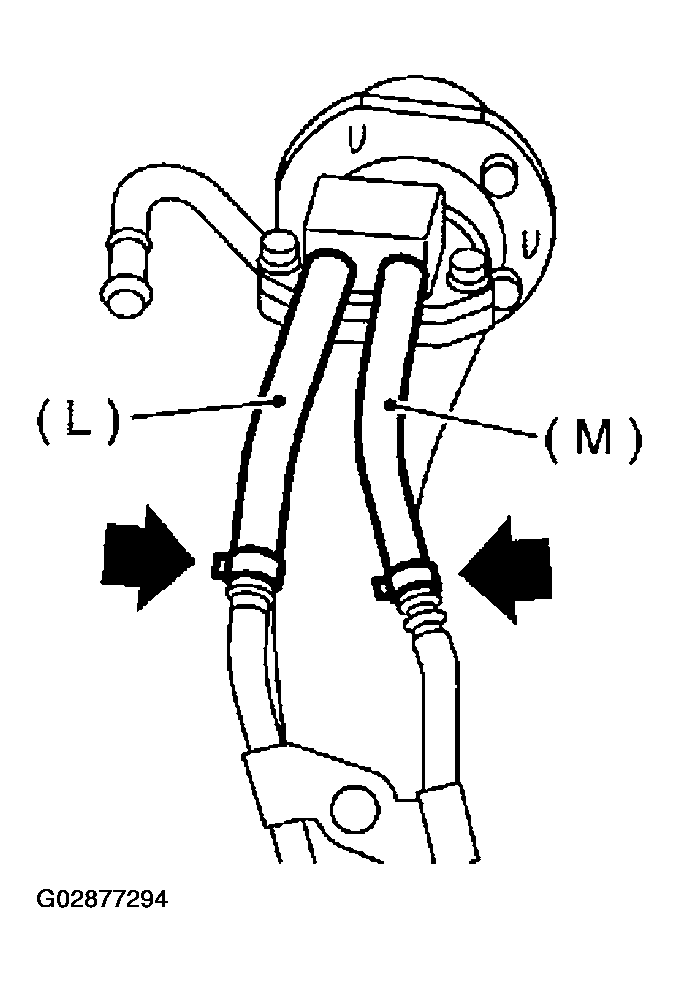

    Fig 1: Disconnecting Evaporation Hose
    G02877294Courtesy of SUBARU OF AMERICA, INC.
  2. Remove shut valve from fuel filler pipe.

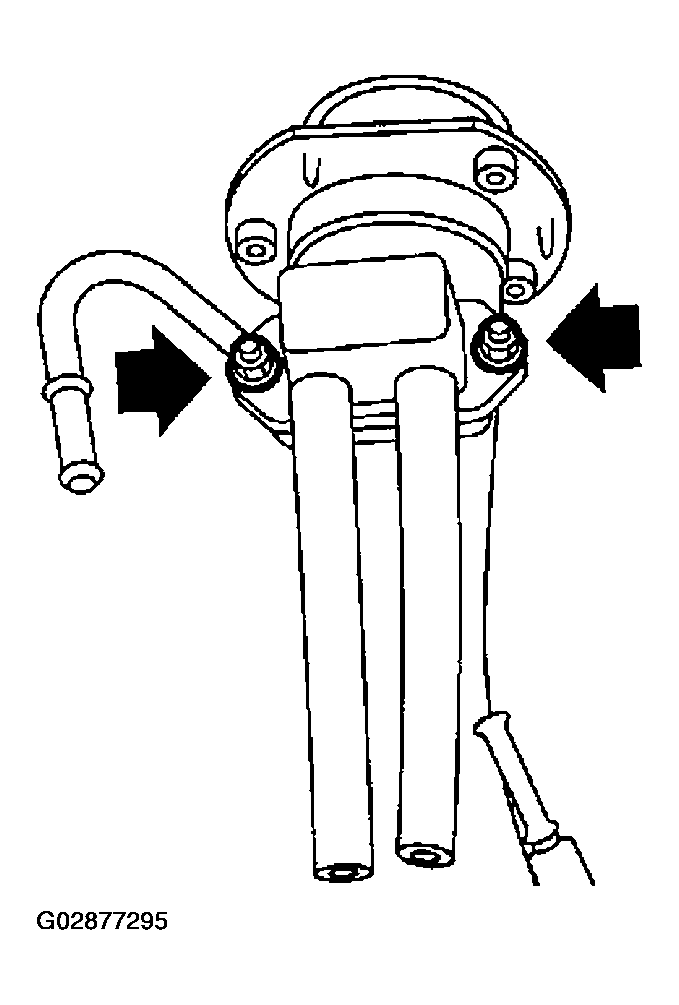

    Fig 2: Removing Shut Valve From Fuel Filler Pipe
    G02877295Courtesy of SUBARU OF AMERICA, INC.
  3. Remove nut which holds evaporation pipe assembly on fuel filler pipe.

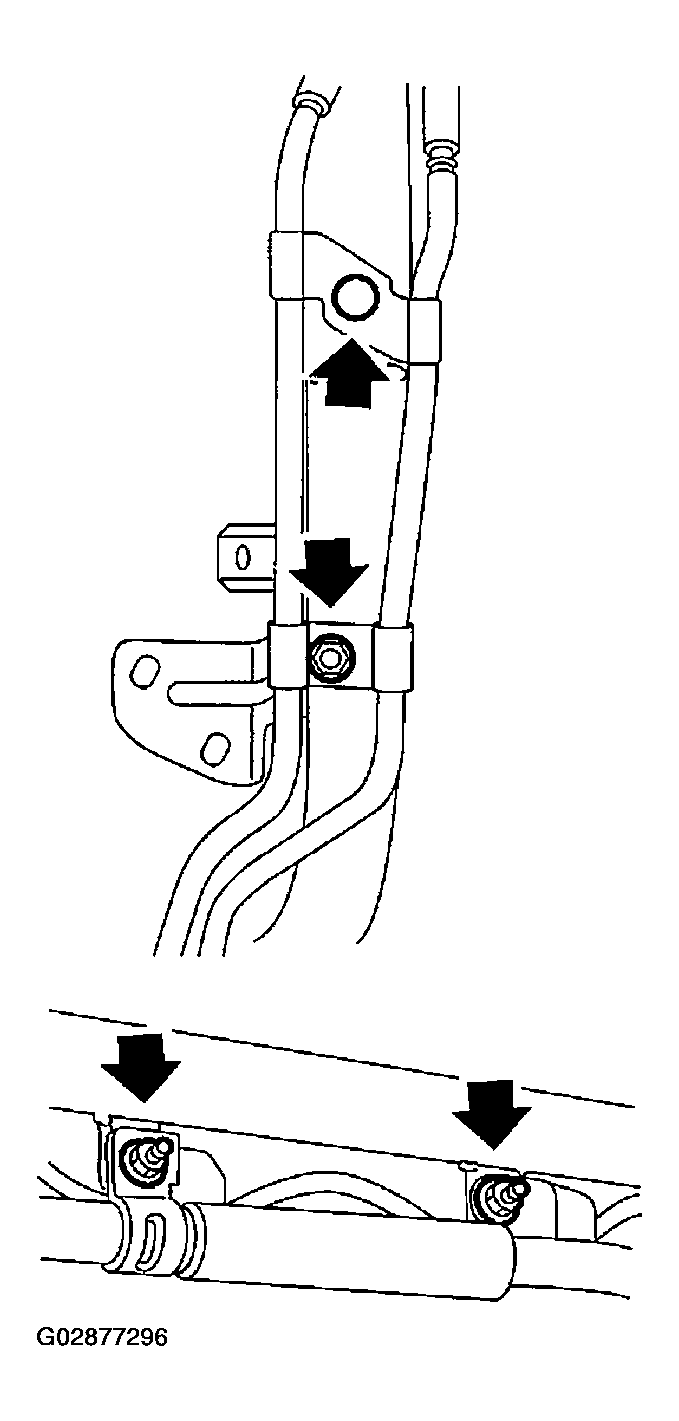

    Fig 3: Removing Evaporation Pipe Assembly
    G02877296Courtesy of SUBARU OF AMERICA, INC.
