Clutch Fluid: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Park the vehicle on a level surface.
  2. Inspect the fluid level using scale on the outside of the reservoir tank. If the level is below "MIN", add fluid to bring it up to "MAX", and also inspect for leakage.

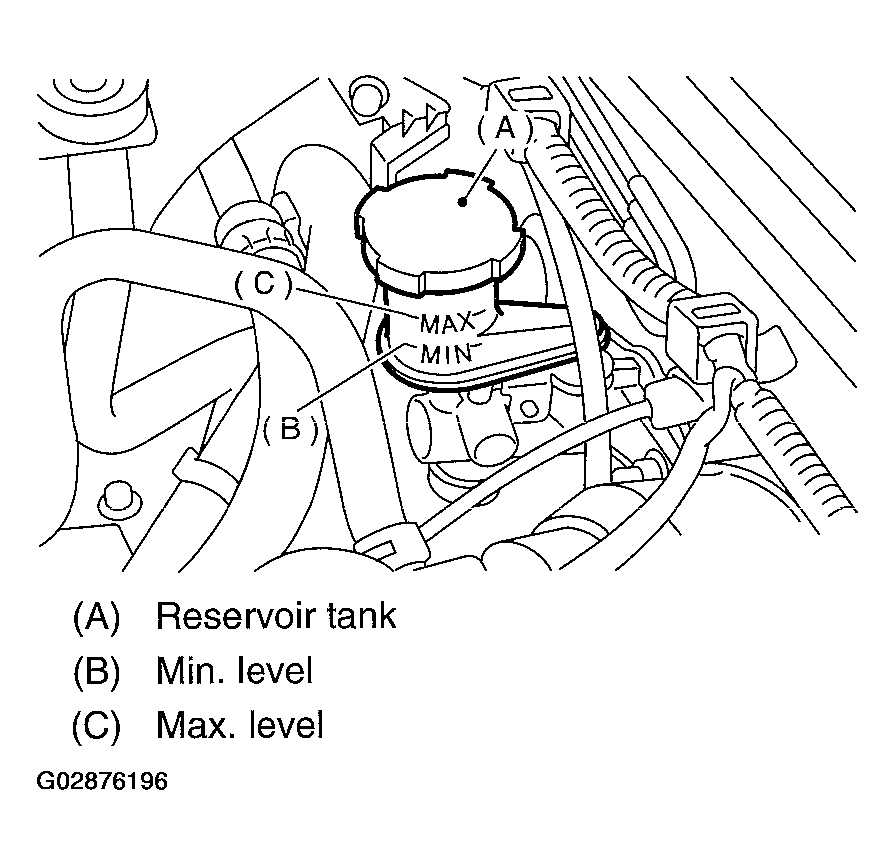

    Fig 1: Inspecting Fluid Level
    G02876196Courtesy of SUBARU OF AMERICA, INC.
