Horn Switch: Inspection

Measure horn switch resistance.

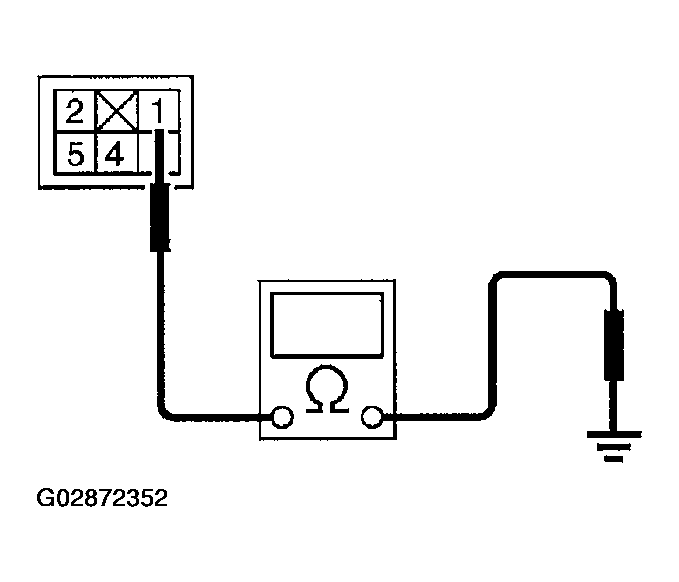

Fig 1: Measuring Horn Switch Resistance
G02872352Courtesy of SUBARU OF AMERICA, INC.

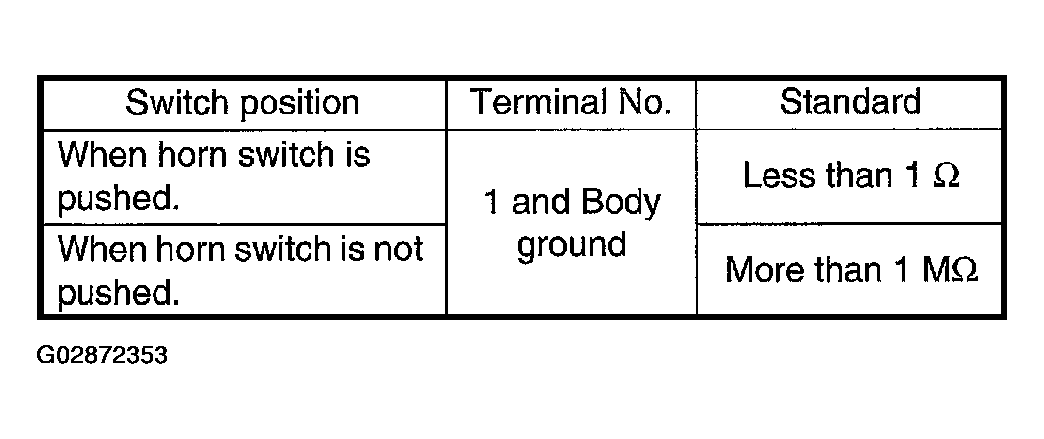

Fig 2: Measuring Horn Resistance Chart
G02872353Courtesy of SUBARU OF AMERICA, INC.
