Diagnostics Chart with Subaru Select Monitor
>>
No Trouble Code
>>
Diagnostic Procedures:
Diagnostic Procedures:

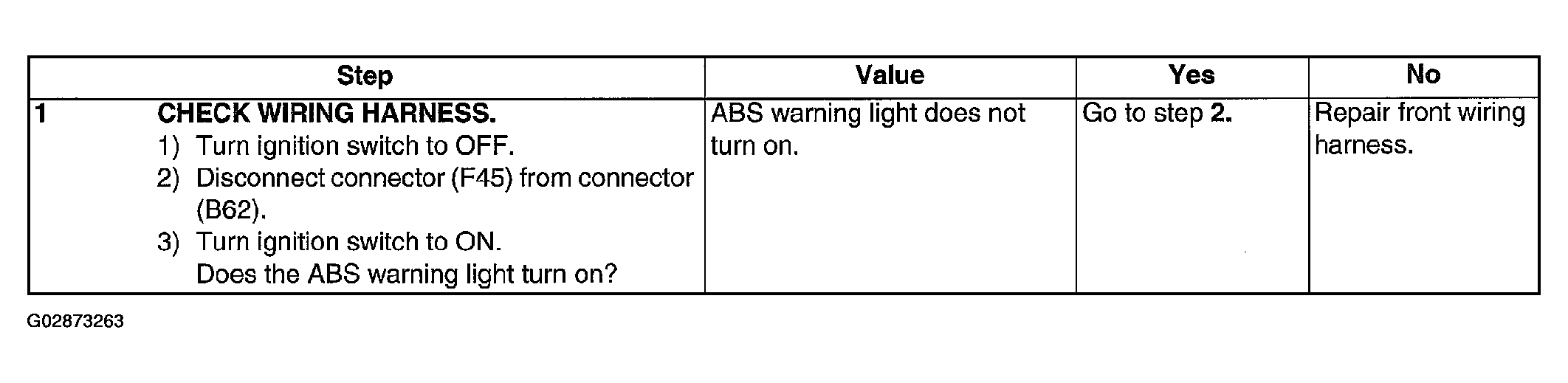

Fig 1: No Trouble Code Diagnostic Chart (Step 1)
Courtesy of SUBARU OF AMERICA, INC.

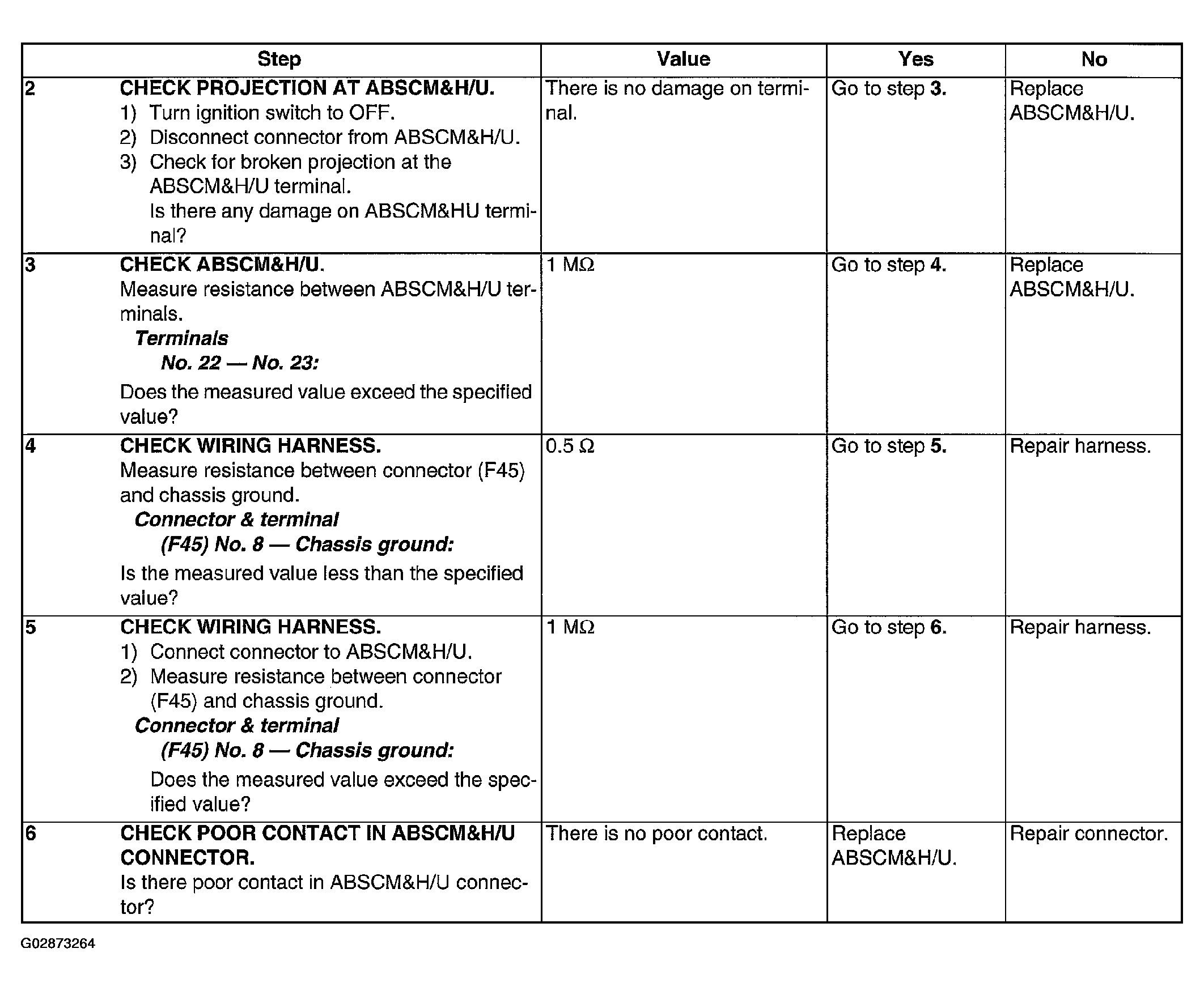

Fig 2: No Trouble Code Diagnostic Chart (Steps 2 - 6)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
