Reverse Clutch: Construction

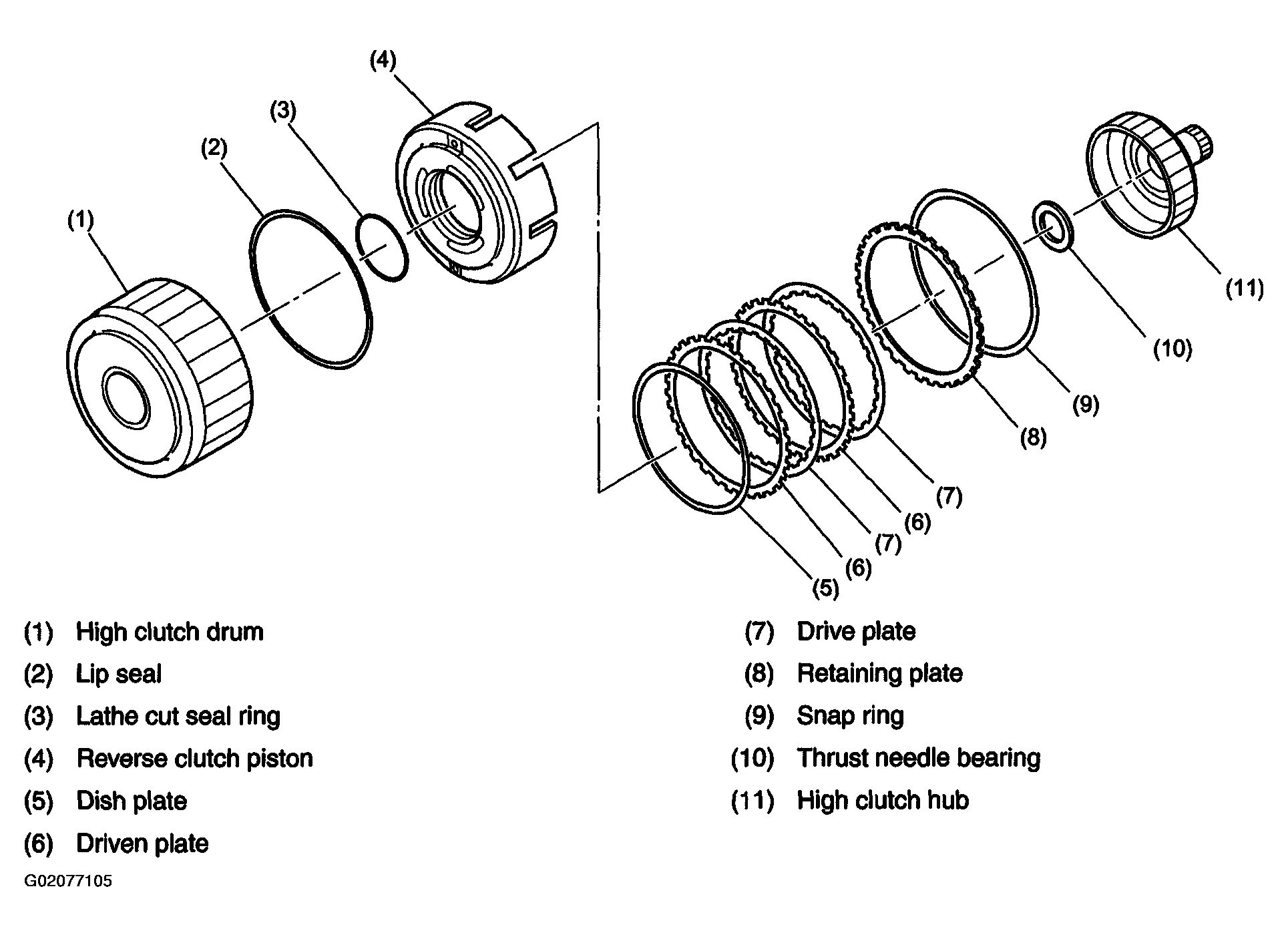

Fig 1: Exploded View Of Reverse Clutch

G02077105

Courtesy of SUBARU OF AMERICA, INC.
