Pitching Stopper

WARNING: This page is about a different variant/trim than selected.

Install the pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

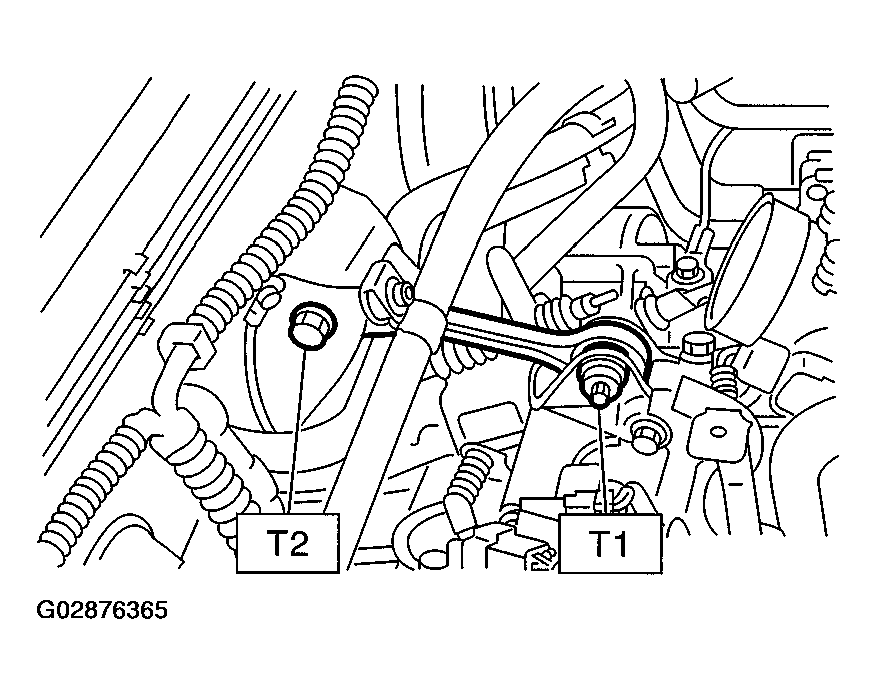

Fig 1: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case.
< Ref. to INSTALLATION , Air Cleaner Case (H4SO).>
Connect battery ground cable.
