Transfer Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install bearing cup to extension case and transfer case.

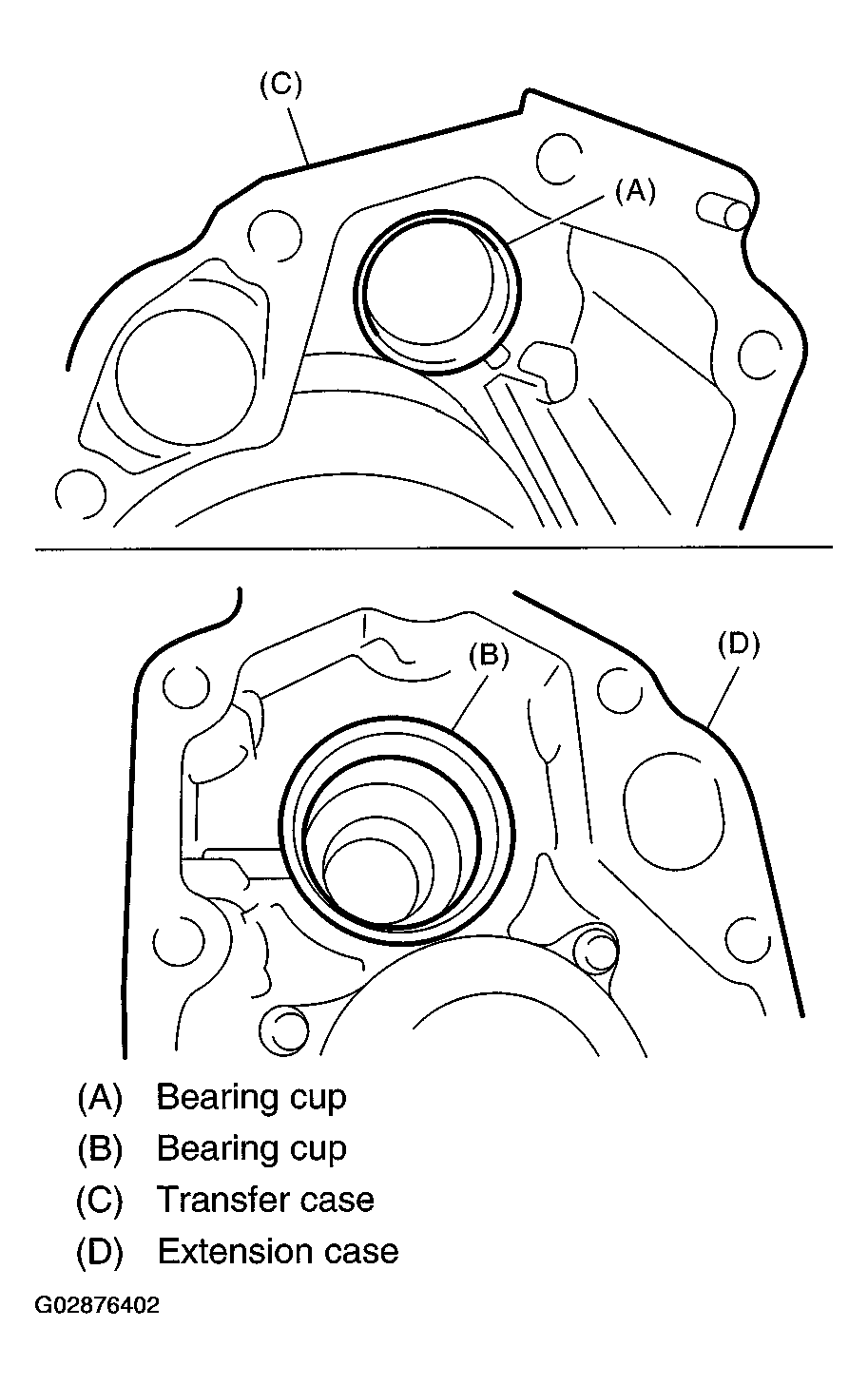

    Fig 1: Installing Bearing Cup To Extension Case & Transfer Case
    G02876402Courtesy of SUBARU OF AMERICA, INC.
  2. Install transfer driven gear.

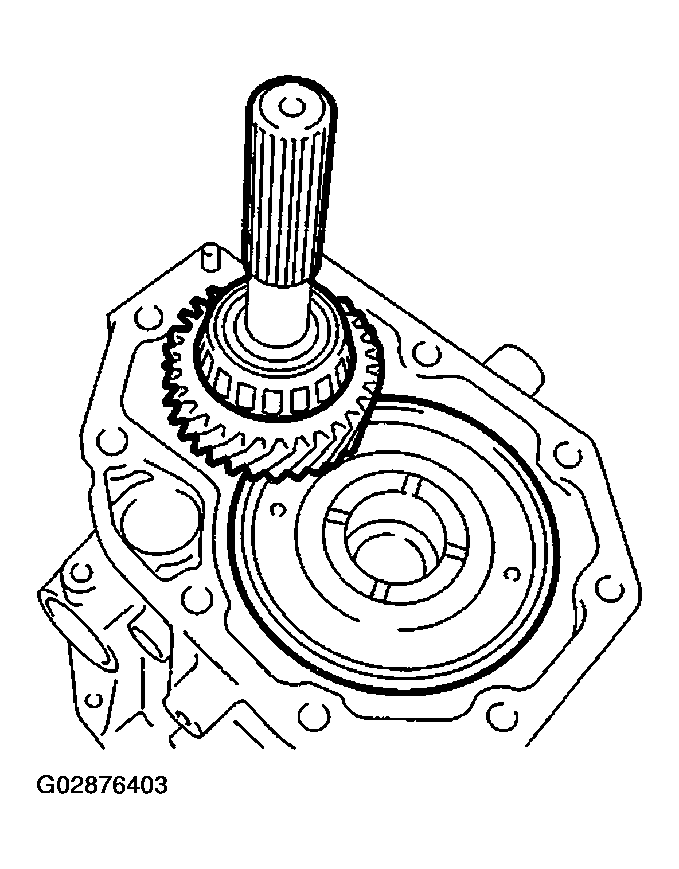

    Fig 2: Installing Transfer Driven Gear
    G02876403Courtesy of SUBARU OF AMERICA, INC.
  3. Install transfer case and extension case assembly. < Ref. to INSTALLATION , Transfer Case and Extension Case Assembly.>
  4. Install back-up light switch and neutral position switch. < Ref. to INSTALLATION , Switches and Harness.>
  5. Install the manual transmission assembly to vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly.>
