Transfer Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Using ST, remove roller bearing (extension case side).

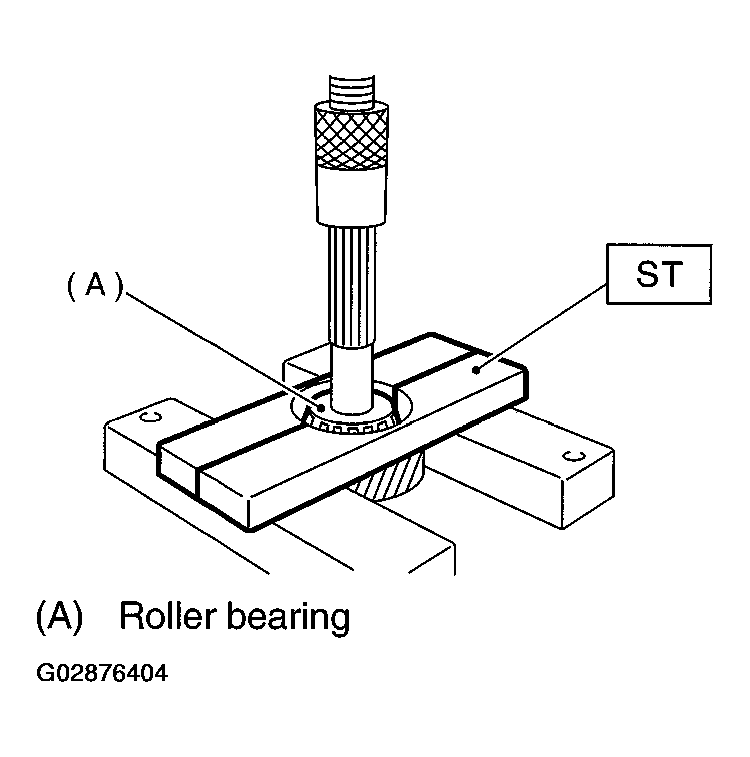

1. ST 498077000 REMOVER
Fig 1: Removing Roller Bearing (Extension Case Side)
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, remove roller bearing (transfer case side).

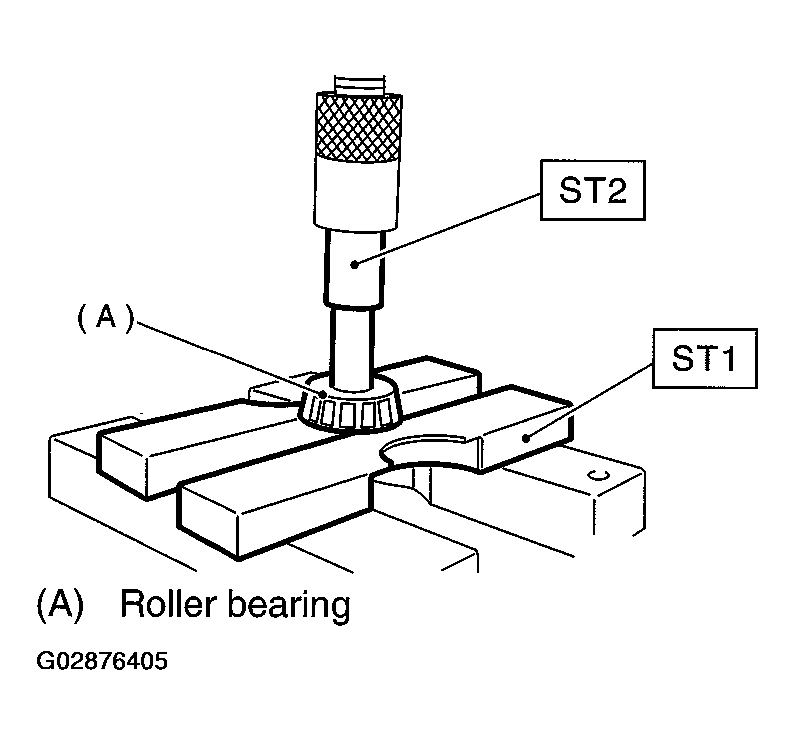

1. ST1 498077000 REMOVER

Fig 2: Removing Roller Bearing (Transfer Case Side)

Courtesy of SUBARU OF AMERICA, INC.
