Transfer Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Using ST, install roller bearing (extension case side).
1. ST1 398177700 INSTALLER
2. ST2 899864100 REMOVER
NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

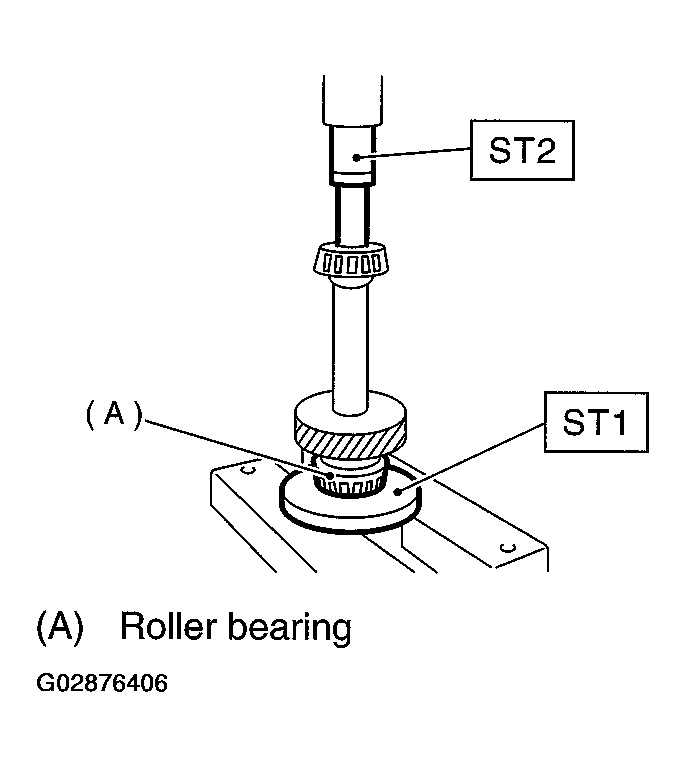

Fig 1: Installing Roller Bearing (Extension Case Side)
Courtesy of SUBARU OF AMERICA, INC.
Using ST, install roller bearing (transfer case side).
1. ST 499757002 INSTALLER
NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

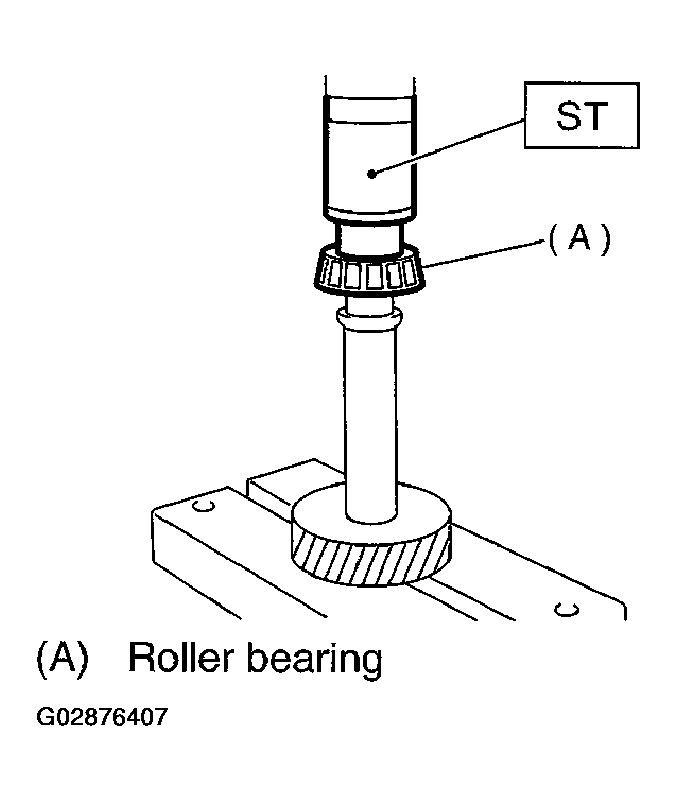

Fig 2: Removing Roller Bearing (Transfer Case Side)
Courtesy of SUBARU OF AMERICA, INC.
