Transfer Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Set ST to inner race of bearing and install to drive shaft.
1. ST 39817700 INSTALLER
NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

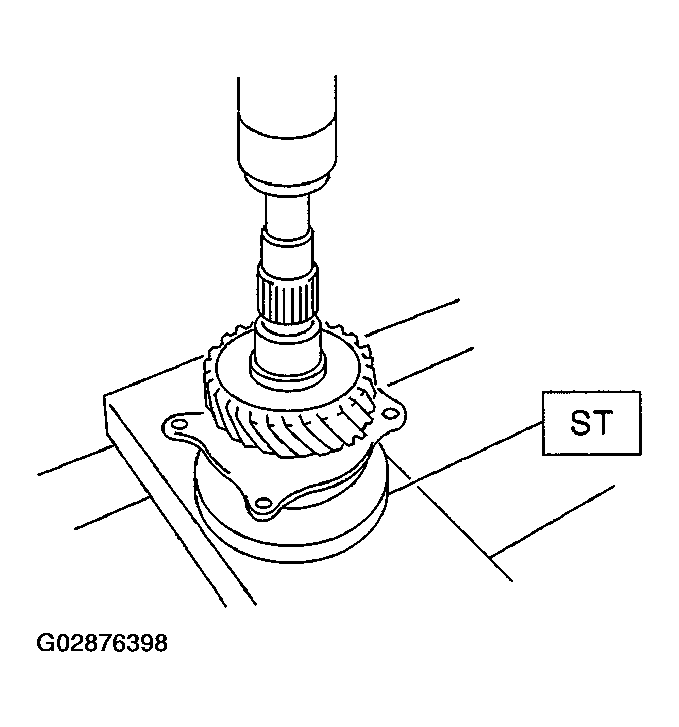

Fig 1: Installing Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install snap ring on transfer drive shaft.
Inspect clearance between snap ring and inner race of ball bearing. < Ref. to INSPECTION , Transfer Drive Gear.>
