Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove back-up light switch and neutral position switch. < Ref. to REMOVAL , Switches and Harness.>
  3. Remove transfer case with extension case assembly.

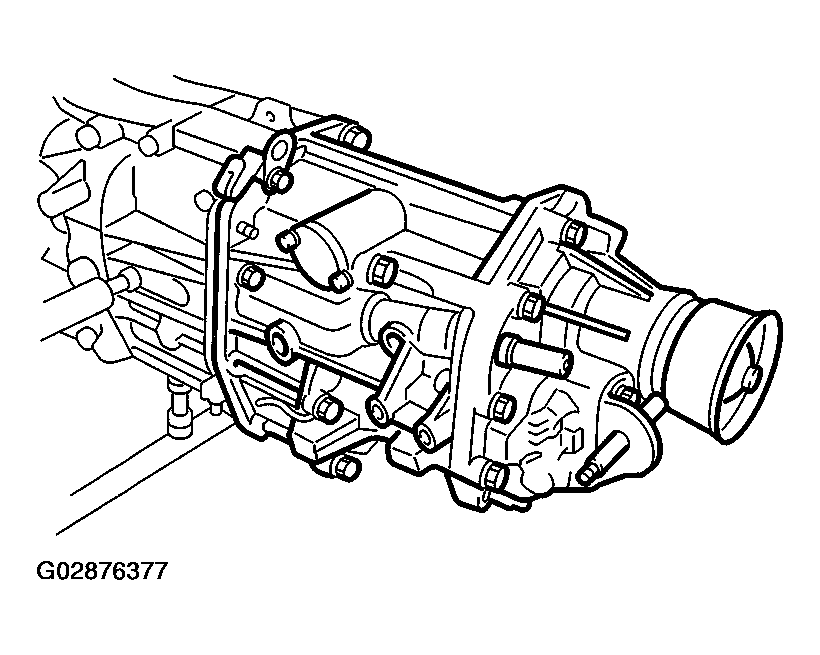

    Fig 1: Removing Transfer Case Assembly
    G02876377Courtesy of SUBARU OF AMERICA, INC.
  4. Remove shifter arm.
  5. Remove extension case assembly.

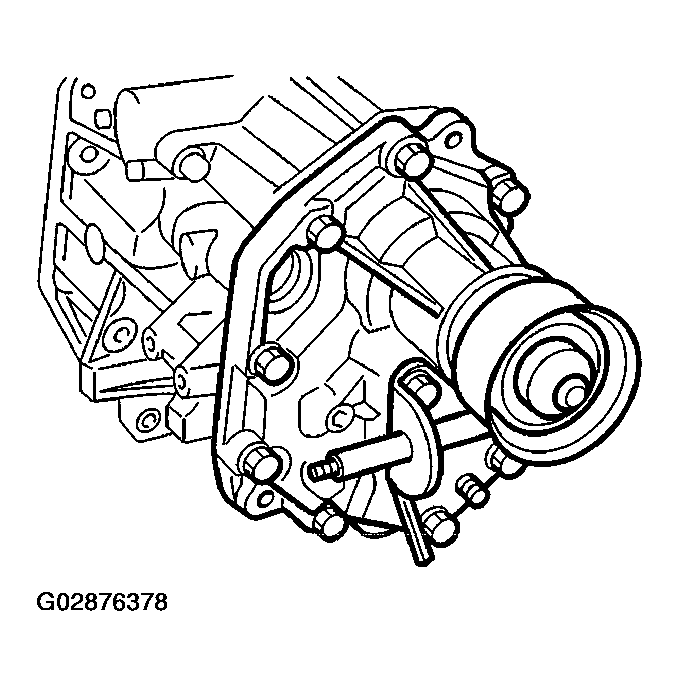

Fig 2: Removing Extension Case Assembly
G02876378Courtesy of SUBARU OF AMERICA, INC.
