Transfer Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove reverse check assembly. < Ref. to REMOVAL , Reverse Check Sleeve.>
  2. Remove oil guide.

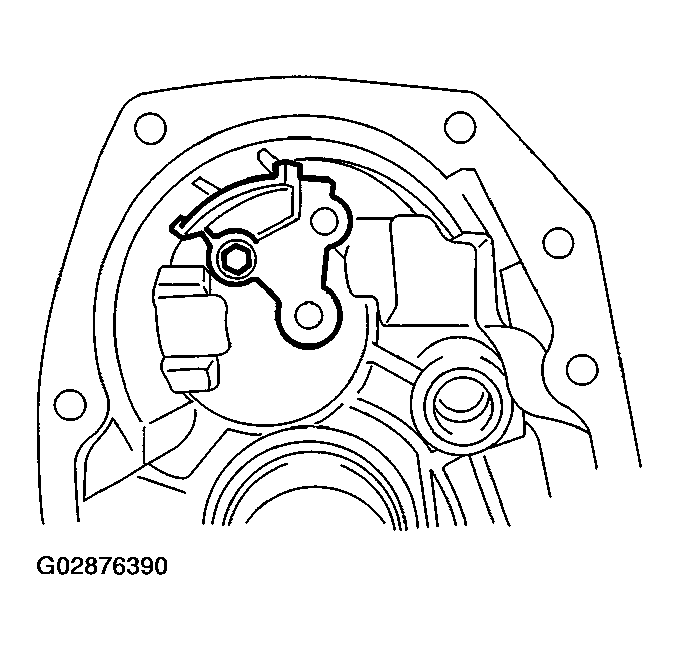

Fig 1: Removing Oil Guide
G02876390Courtesy of SUBARU OF AMERICA, INC.
