Extension Case
WARNING: This page is about a different variant/trim than selected.
- Remove transfer drive gear assembly. < Ref. to
REMOVAL , Transfer Drive Gear.>

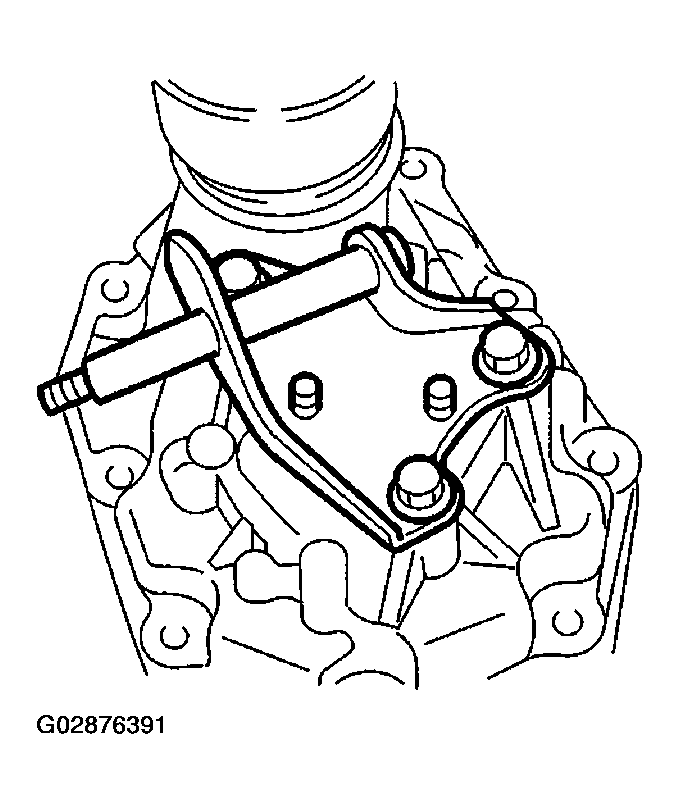

- Remove shift bracket.
Courtesy of SUBARU OF AMERICA, INC.
- Remove oil seal from extension case. < Ref. to
OIL SEAL .>
