Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Using ST, install oil seal to extension case. < Ref. to OIL SEAL >
    NOTE: Use new oil seal.
  2. Install shift bracket to extension case.
    1. Tightening torque:  24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

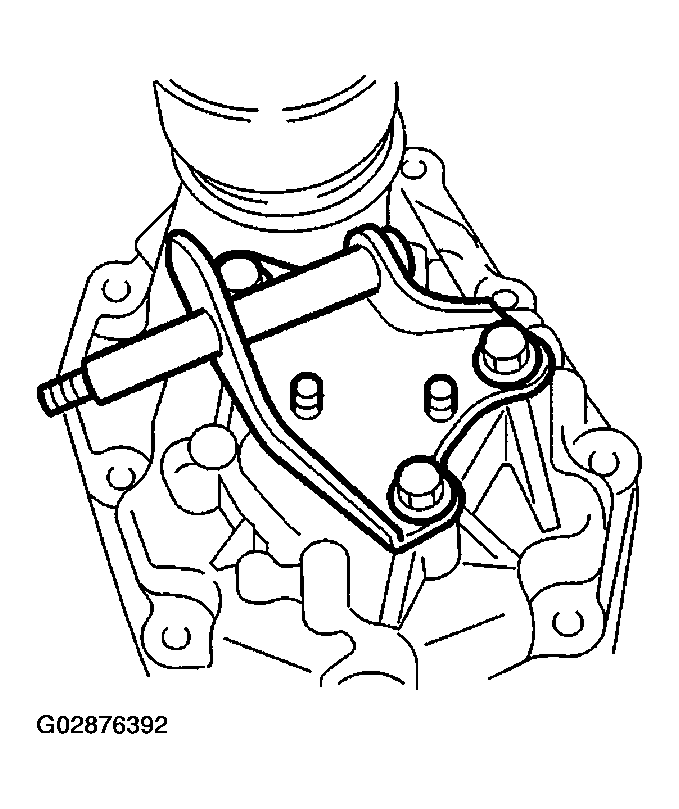

    Fig 1: Installing Shift Bracket To Extension Case
    G02876392Courtesy of SUBARU OF AMERICA, INC.
  3. Install transfer drive gear to extension case. < Ref. to INSTALLATION , Transfer Drive Gear.>
