Reverse Check Sleeve: Assembly

WARNING: This page is about a different variant/trim than selected.

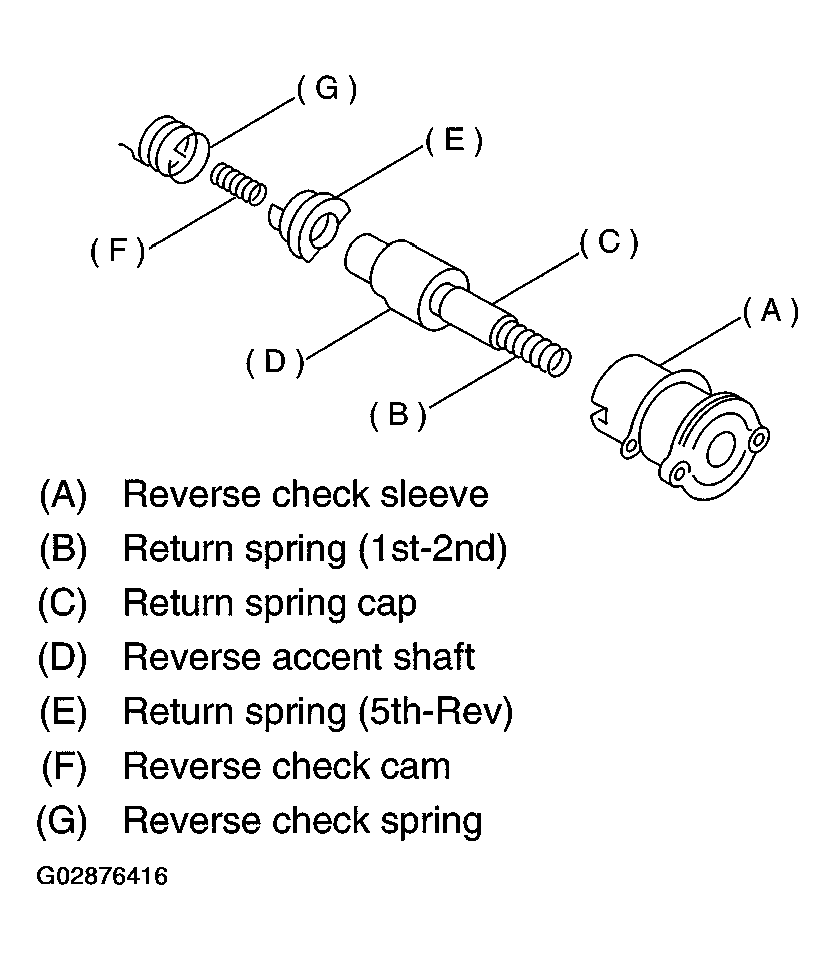

Install return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring and check spring onto reverse check sleeve.
NOTE: Be sure the bent section of reverse check spring is positioned in the groove in check cam.

Fig 1: Installing Reverse Check Sleeve Plate
Courtesy of SUBARU OF AMERICA, INC.
Hook the bent section of reverse check spring over reverse check plate.
Rotate cam so that the protrusion of reverse check cam is at the opening in plate.
With cam held in that position, install plate onto reverse check sleeve and hold with snap ring.
Position new O-ring in groove in sleeve.
