Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean oil, grease, dirt and dust from transmission.
  2. Remove drain plug to drain oil.
  3. Replace gasket with a new one, and tighten drain plug.
    1. Tightening torque:  44 N.m (4.5 kgf-m, 32.5 ft-lb)

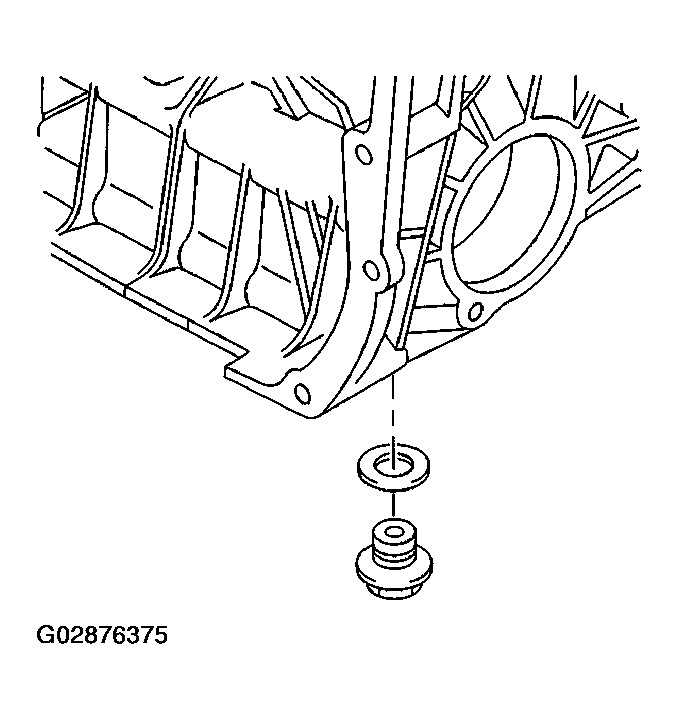

    Fig 1: Installing Drain Plug With Gasket
    G02876375Courtesy of SUBARU OF AMERICA, INC.
  4. Attach transmission to ST.
    1. ST 499937100 TRANSMISSION STAND SET

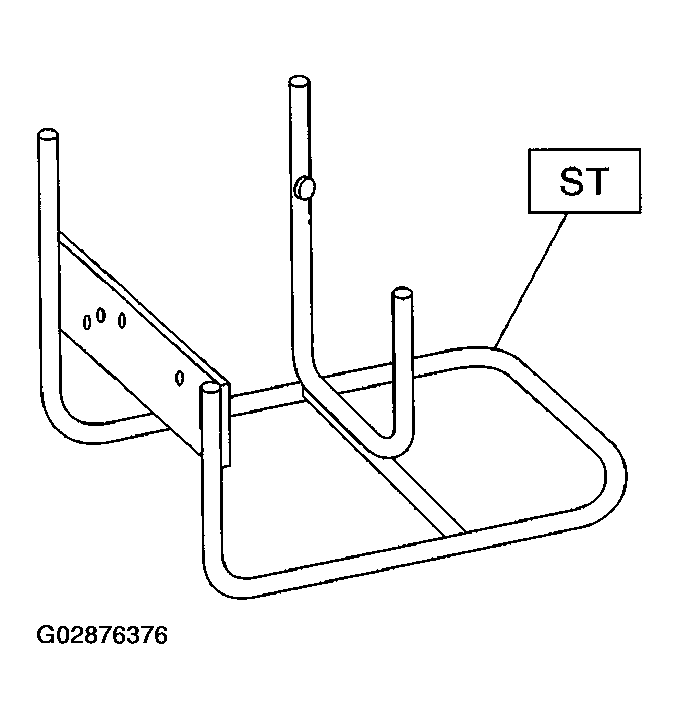

    Fig 2: Identifying Transmission Stand Set
    G02876376Courtesy of SUBARU OF AMERICA, INC.
  5. Rotating parts should be coated with oil prior to assembly.
  6. All disassembled parts, if to be reused, should be reinstalled in the original positions and directions.
  7. Gaskets, lock washers and lock nut must be replaced with new ones.
  8. Liquid gasket should be used where specified to prevent leakage.
