Main Shaft Assembly for Single-Range: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the needle bearing and oil seal onto the front of transmission main shaft assembly.
    NOTE:
    • Wrap clutch splined section with vinyl tape to prevent damage to oil seal.
    • Apply grease (Unilube #2 or equivalent) to the sealing lip of oil seal.
    • Use a new one.
  2. Install needle bearing outer race knock pin hole into transmission case knock pin.

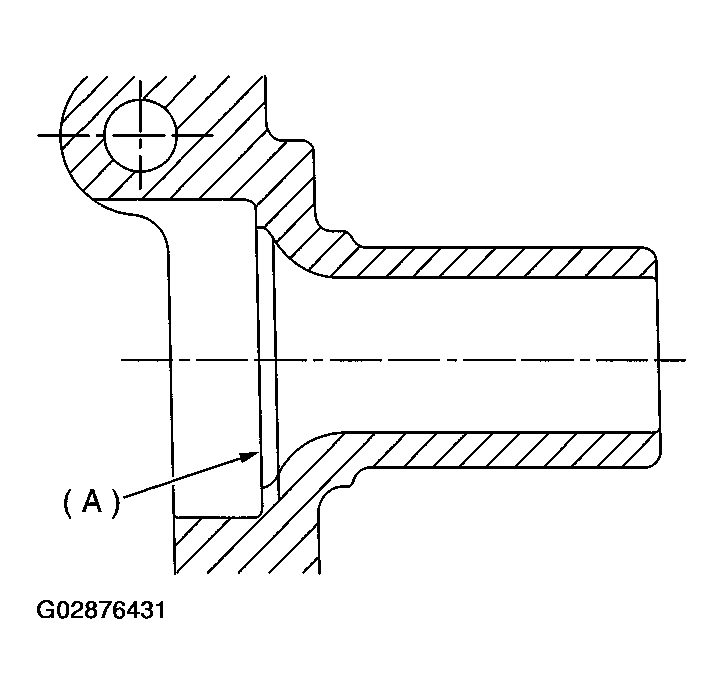

    NOTE: Align the end face of seal with surface (A) when installing oil seal.
    Fig 1: Aligning End Face Of Seal With Surface
    G02876431Courtesy of SUBARU OF AMERICA, INC.
  3. Install the drive pinion assembly. < Ref. to INSTALLATION , Drive Pinion Shaft Assembly.>
  4. Install transmission case. < Ref. to INSTALLATION , Transmission Case.>
  5. Install transfer case with extension case assembly. < Ref. to INSTALLATION , Transfer Case and Extension Case Assembly.>
  6. Install the manual transmission assembly to vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly.>
