Special Tools

WARNING: This page is about a different variant/trim than selected.

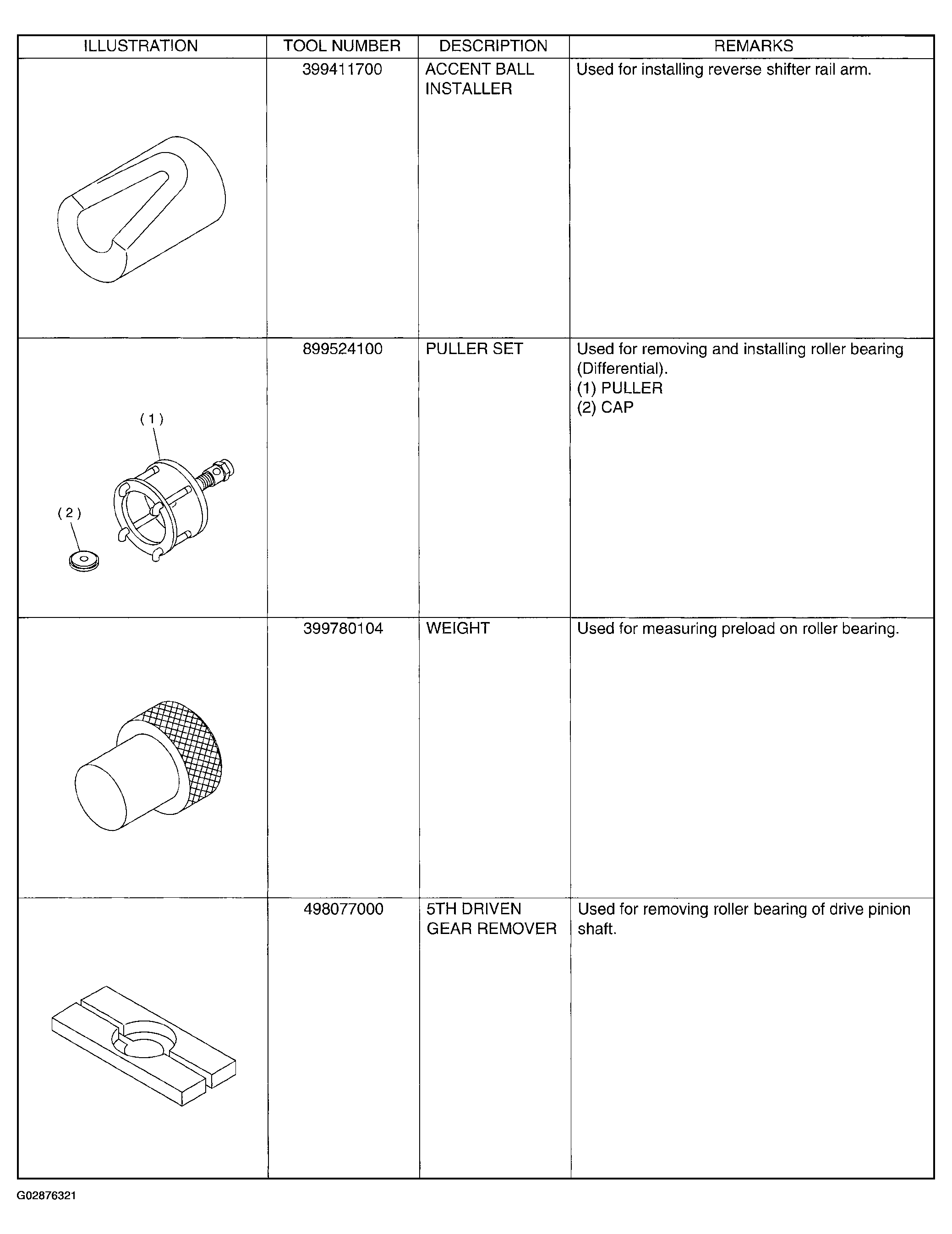

Fig 1: Identifying Special Tools (1 Of 11)

G02876321

Courtesy of SUBARU OF AMERICA, INC.

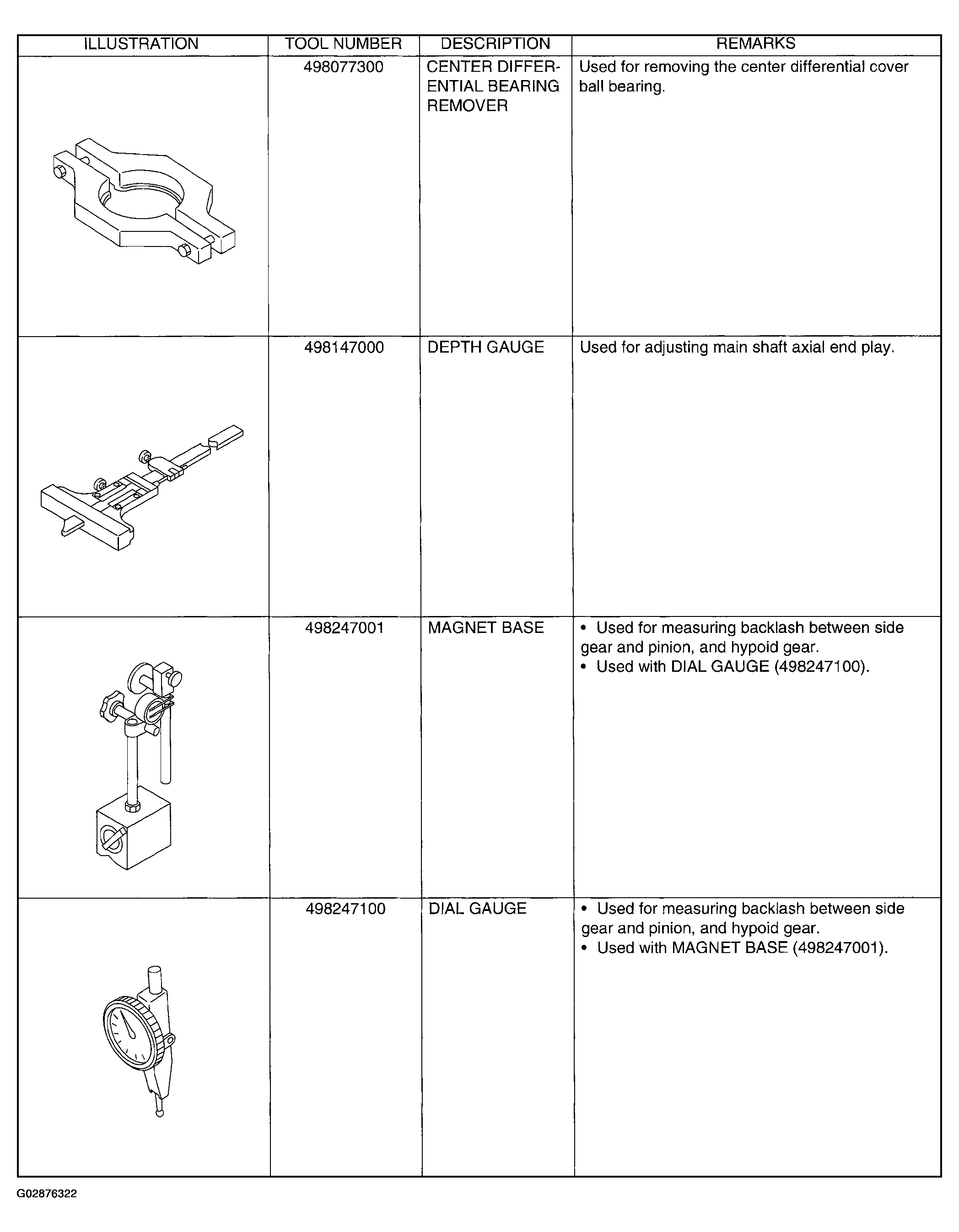

Fig 2: Identifying Special Tools (2 Of 11)

G02876322

Courtesy of SUBARU OF AMERICA, INC.

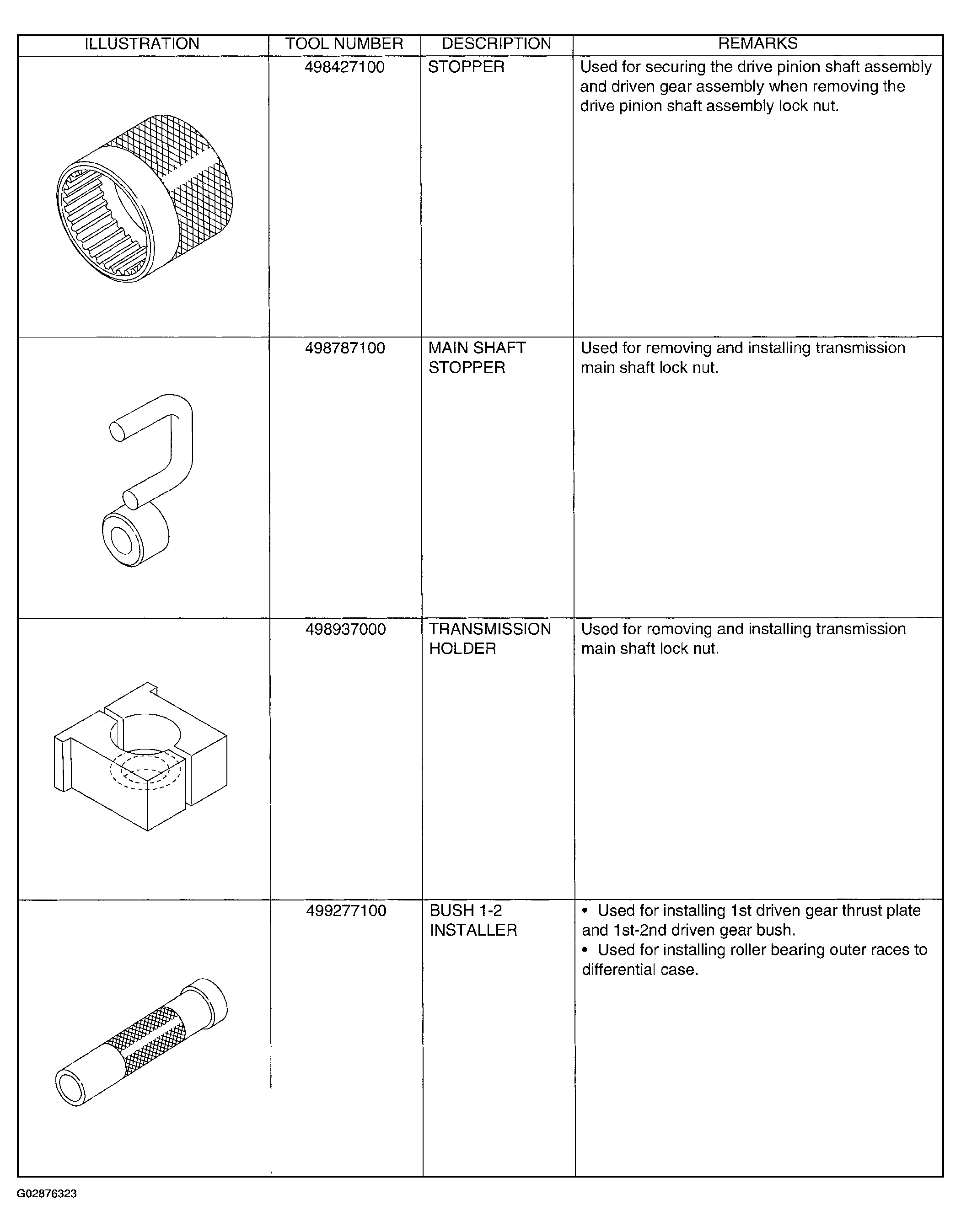

Fig 3: Identifying Special Tools (3 Of 11)

G02876323

Courtesy of SUBARU OF AMERICA, INC.

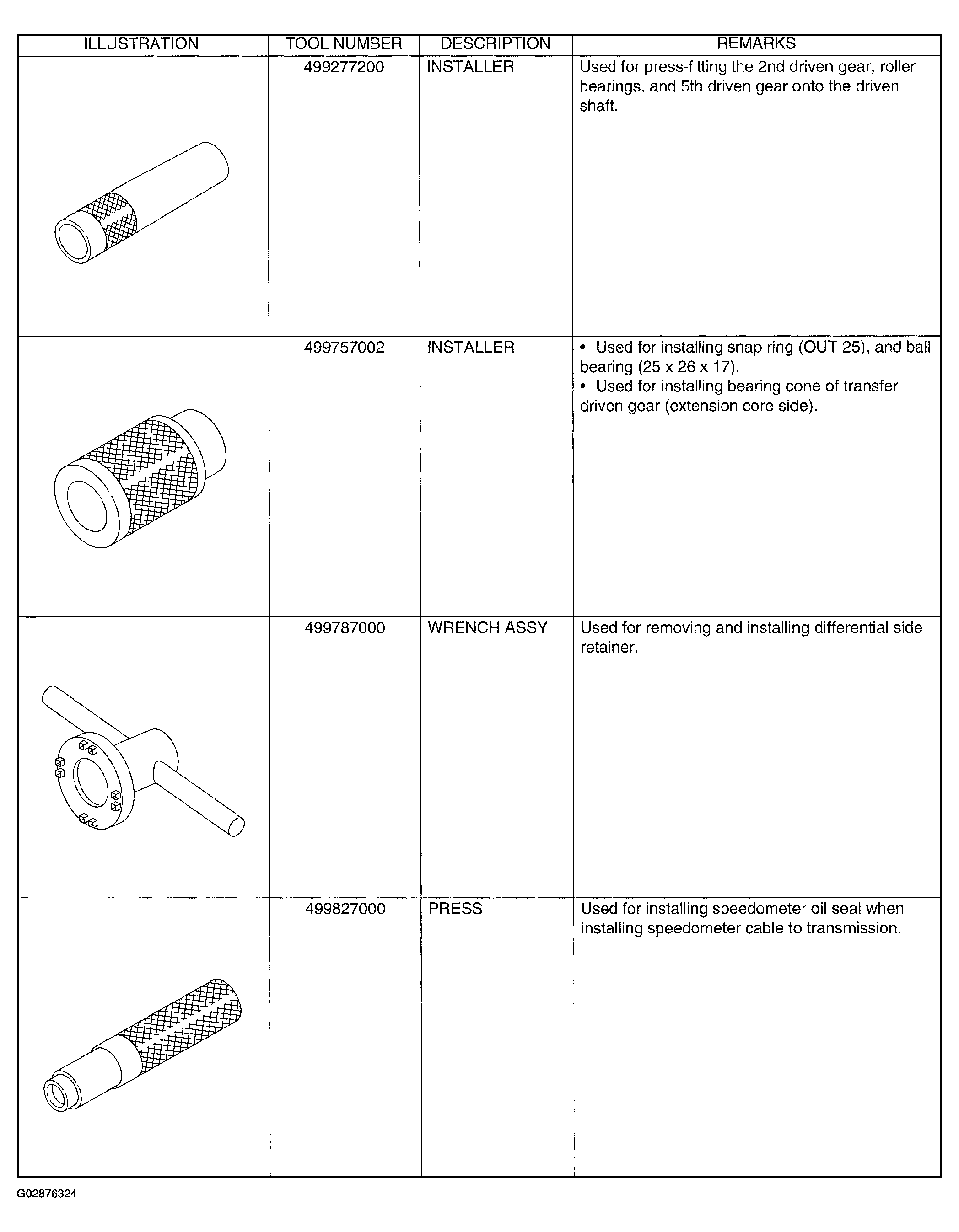

Fig 4: Identifying Special Tools (4 Of 11)

G02876324

Courtesy of SUBARU OF AMERICA, INC.

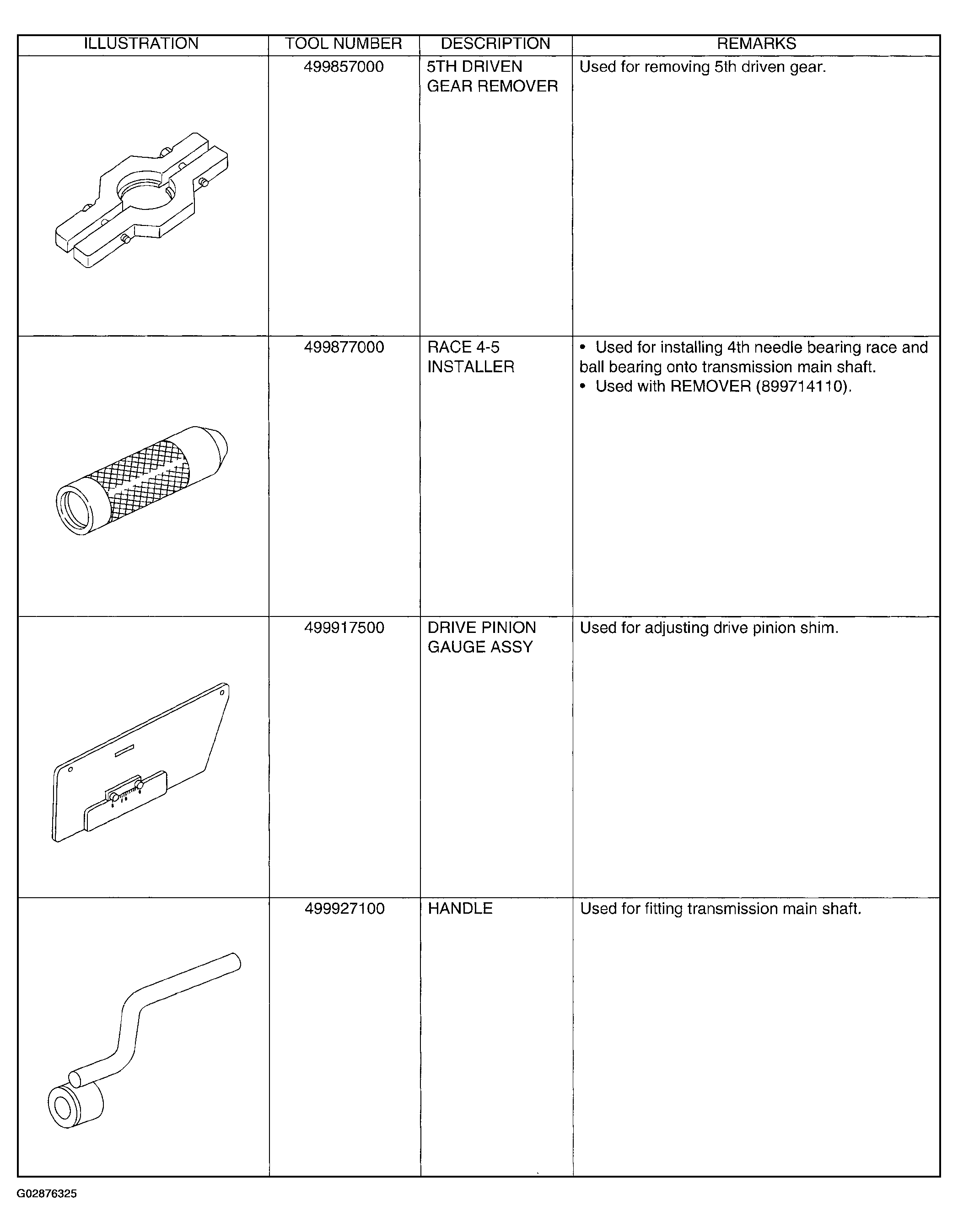

Fig 5: Identifying Special Tools (5 Of 11)

G02876325

Courtesy of SUBARU OF AMERICA, INC.

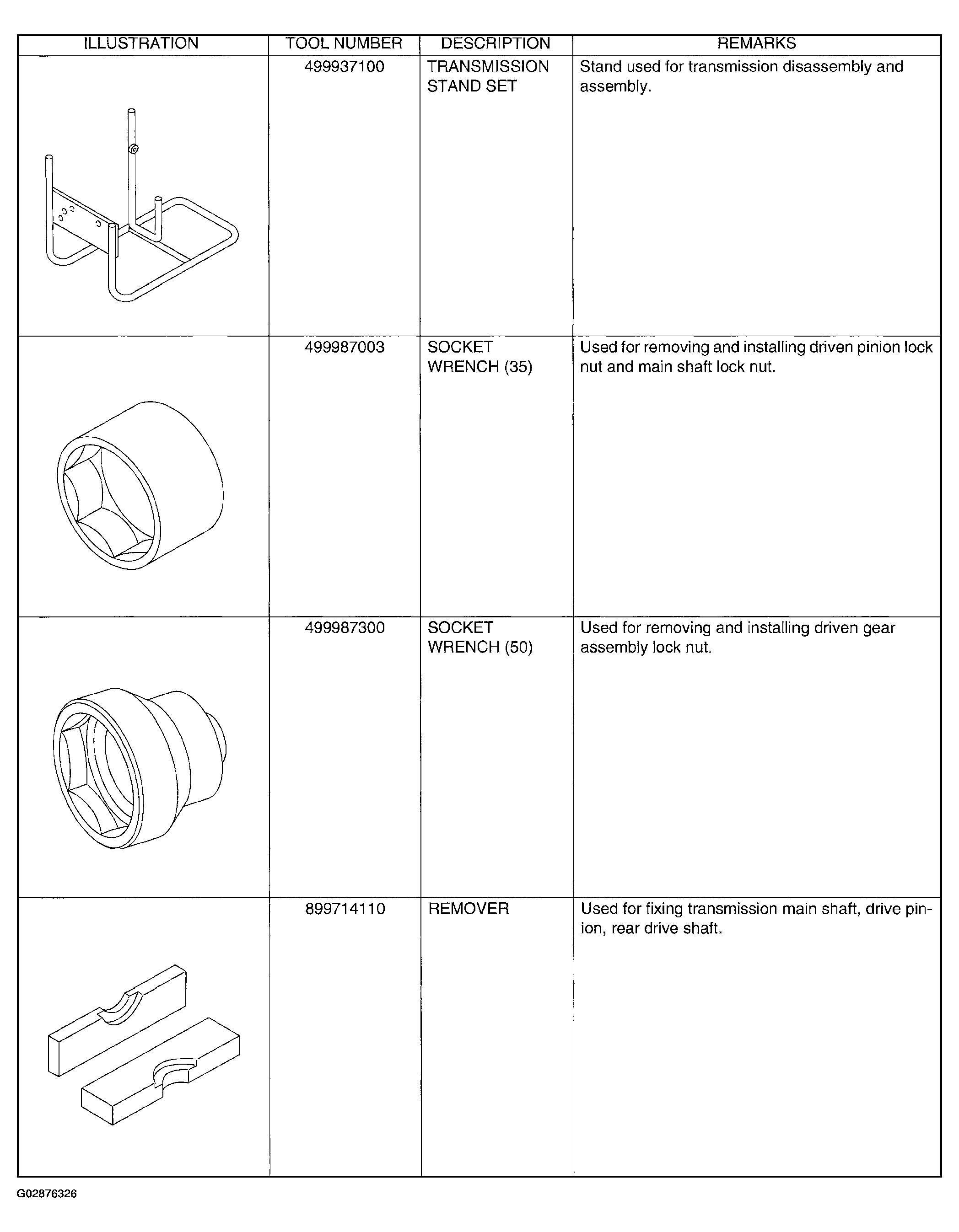

Fig 6: Identifying Special Tools (6 Of 11)

G02876326

Courtesy of SUBARU OF AMERICA, INC.

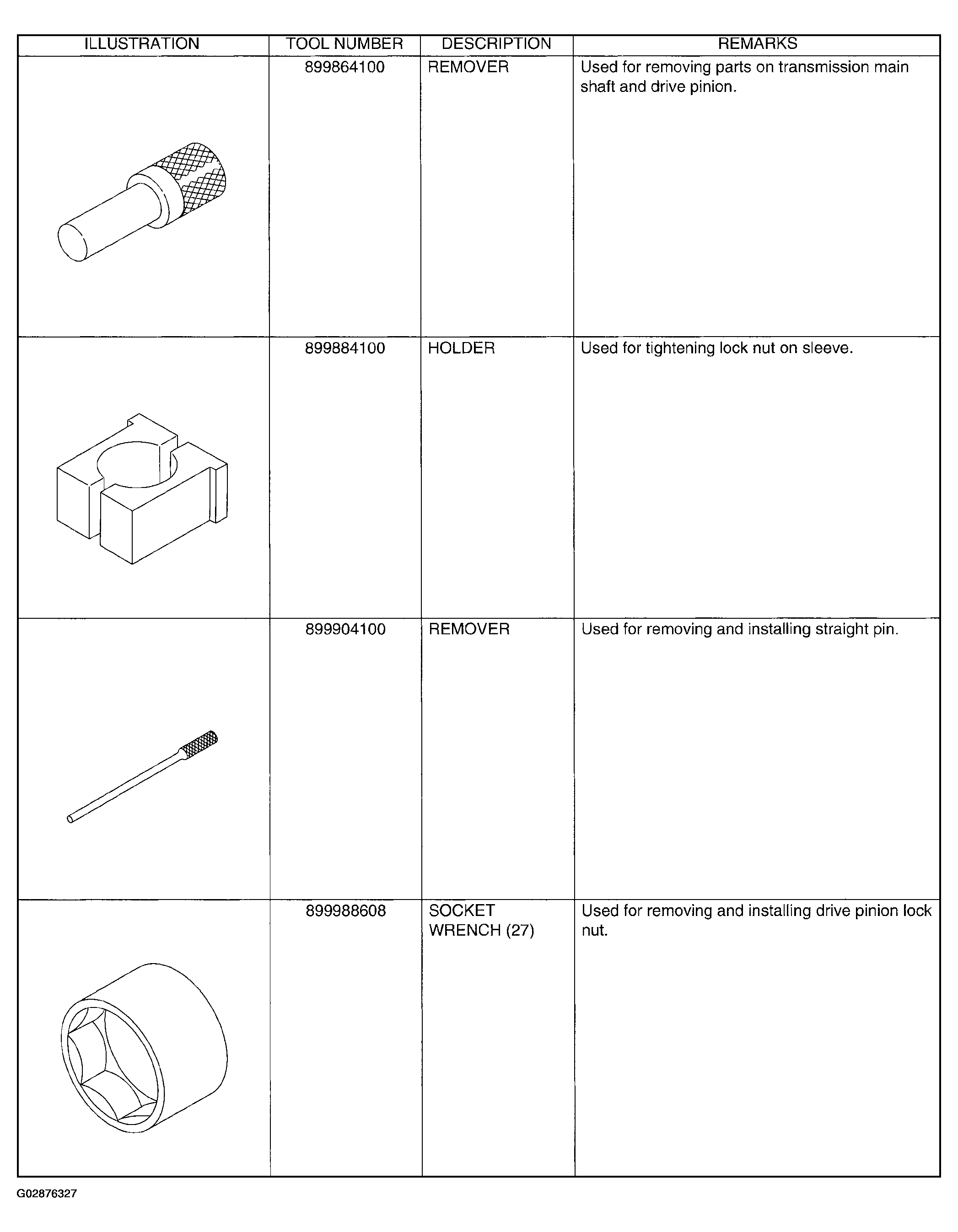

Fig 7: Identifying Special Tools (7 Of 11)

G02876327

Courtesy of SUBARU OF AMERICA, INC.

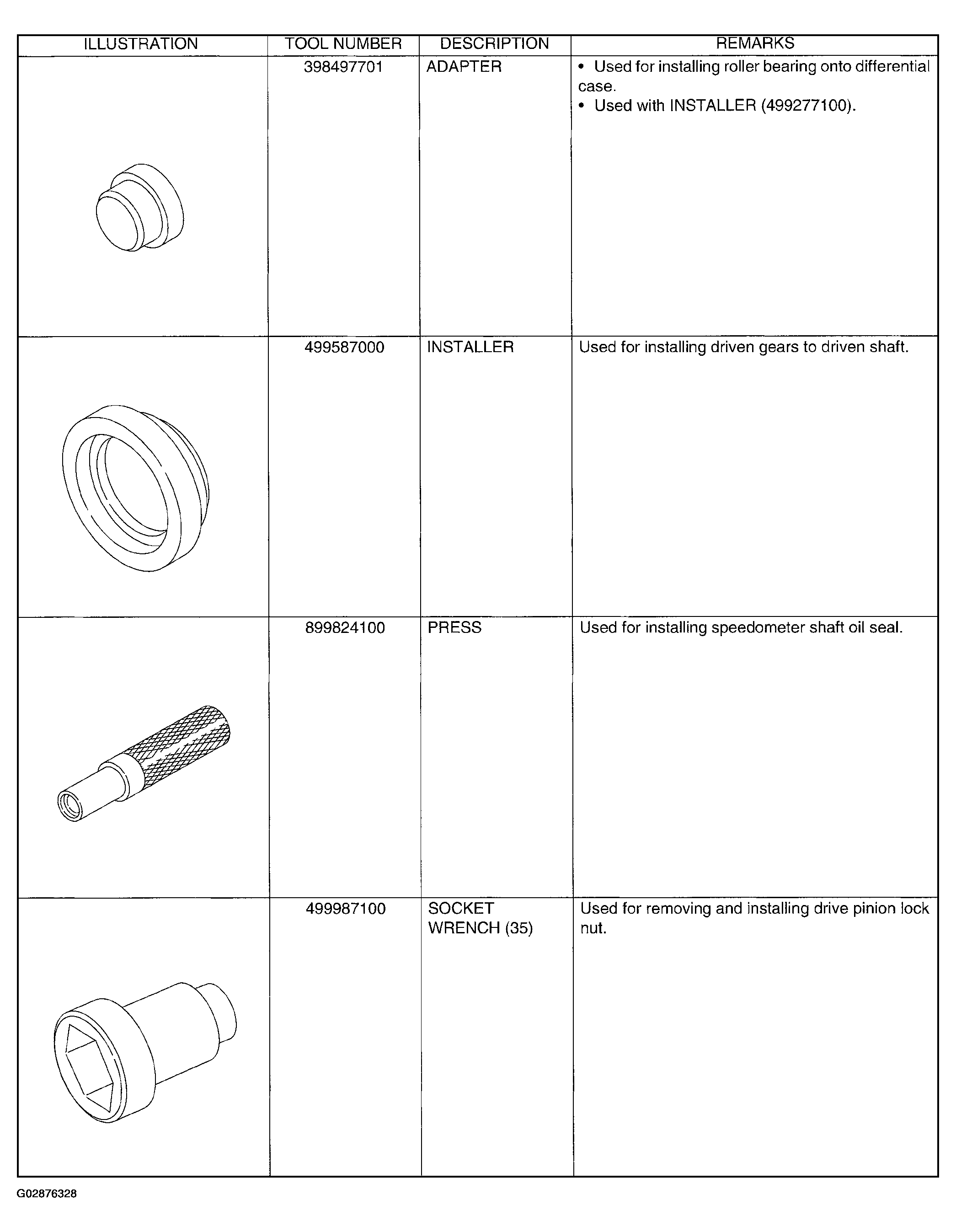

Fig 8: Identifying Special Tools (8 Of 11)

G02876328

Courtesy of SUBARU OF AMERICA, INC.

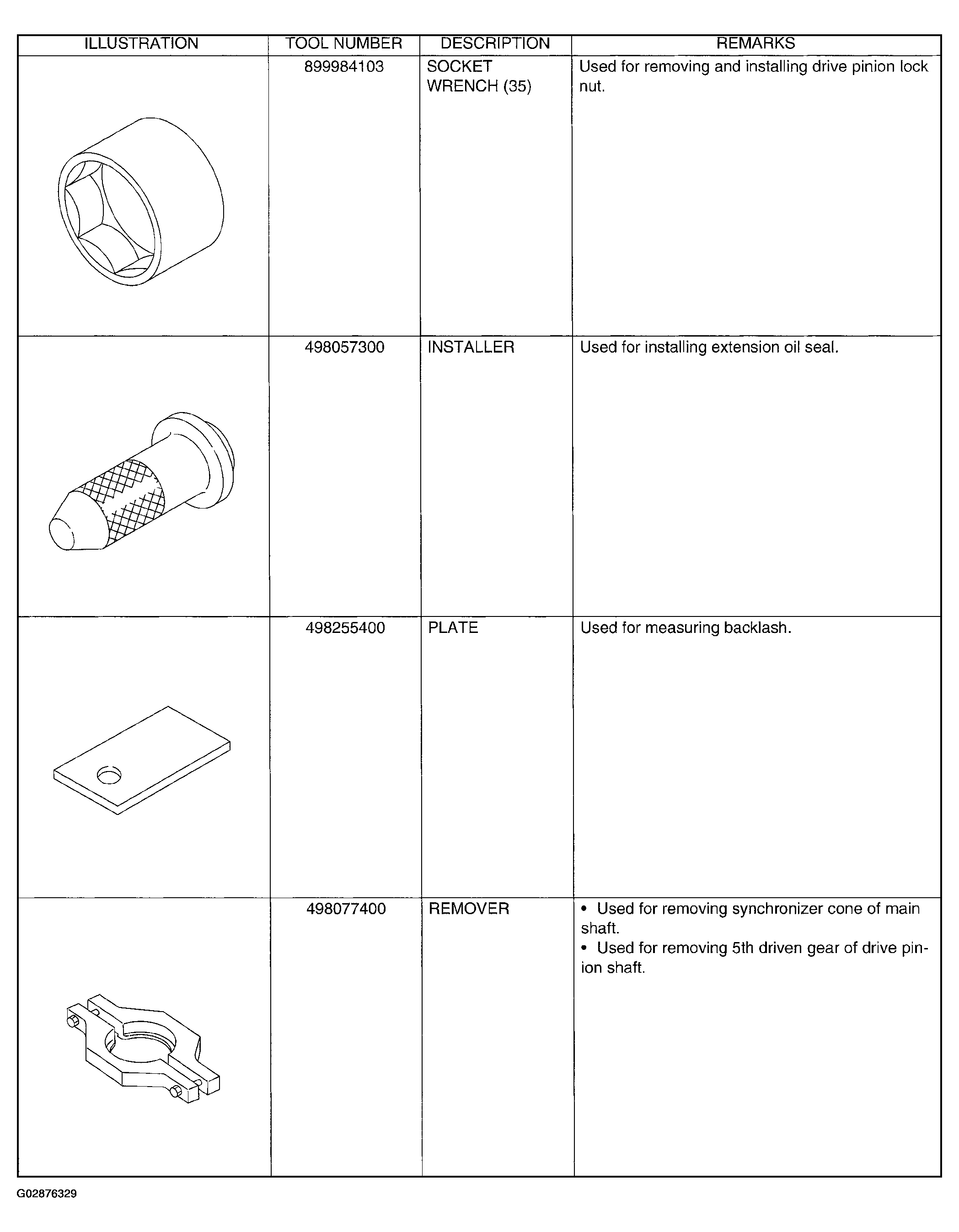

Fig 9: Identifying Special Tools (9 Of 11)

G02876329

Courtesy of SUBARU OF AMERICA, INC.

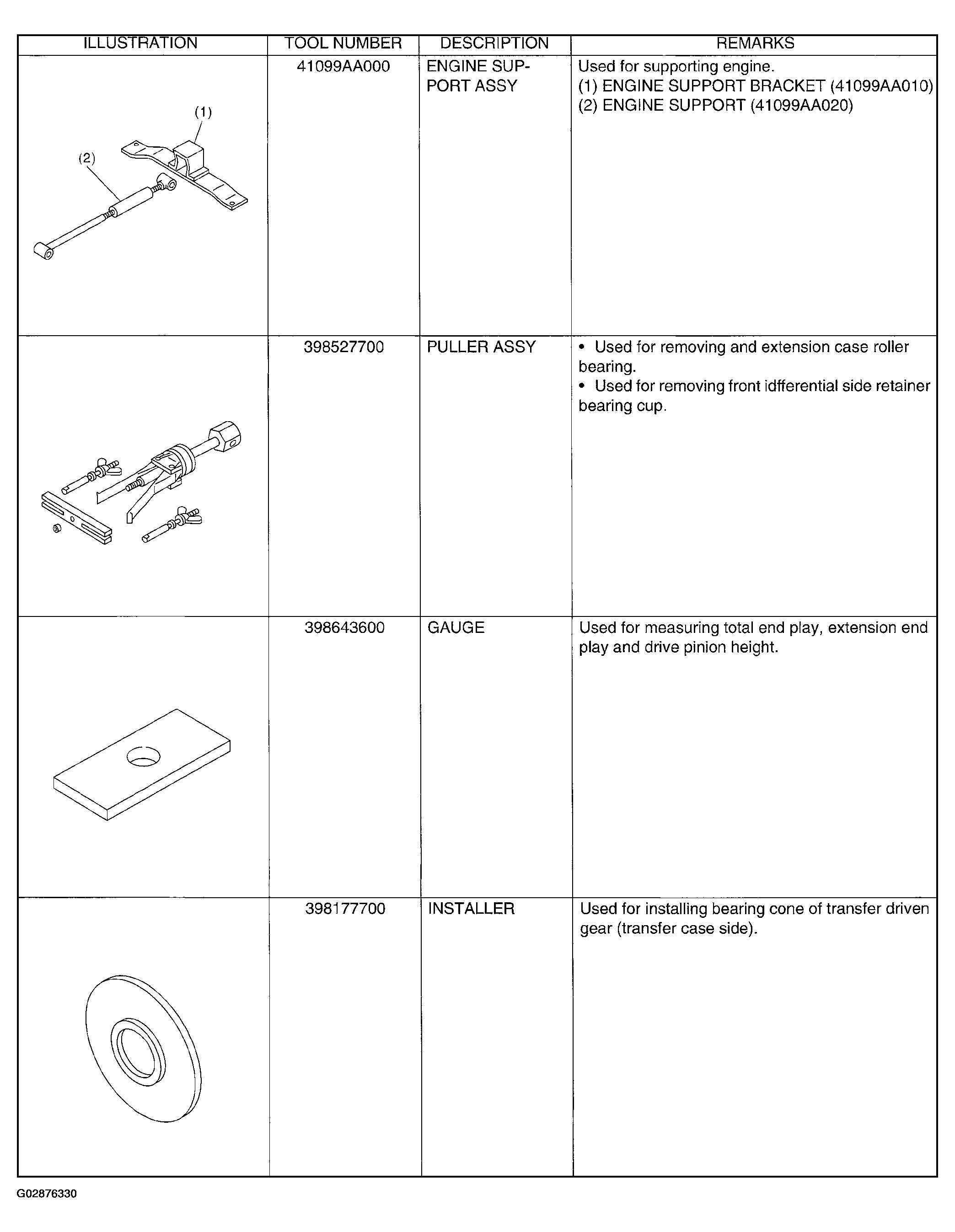

Fig 10: Identifying Special Tools (10 Of 11)

G02876330

Courtesy of SUBARU OF AMERICA, INC.

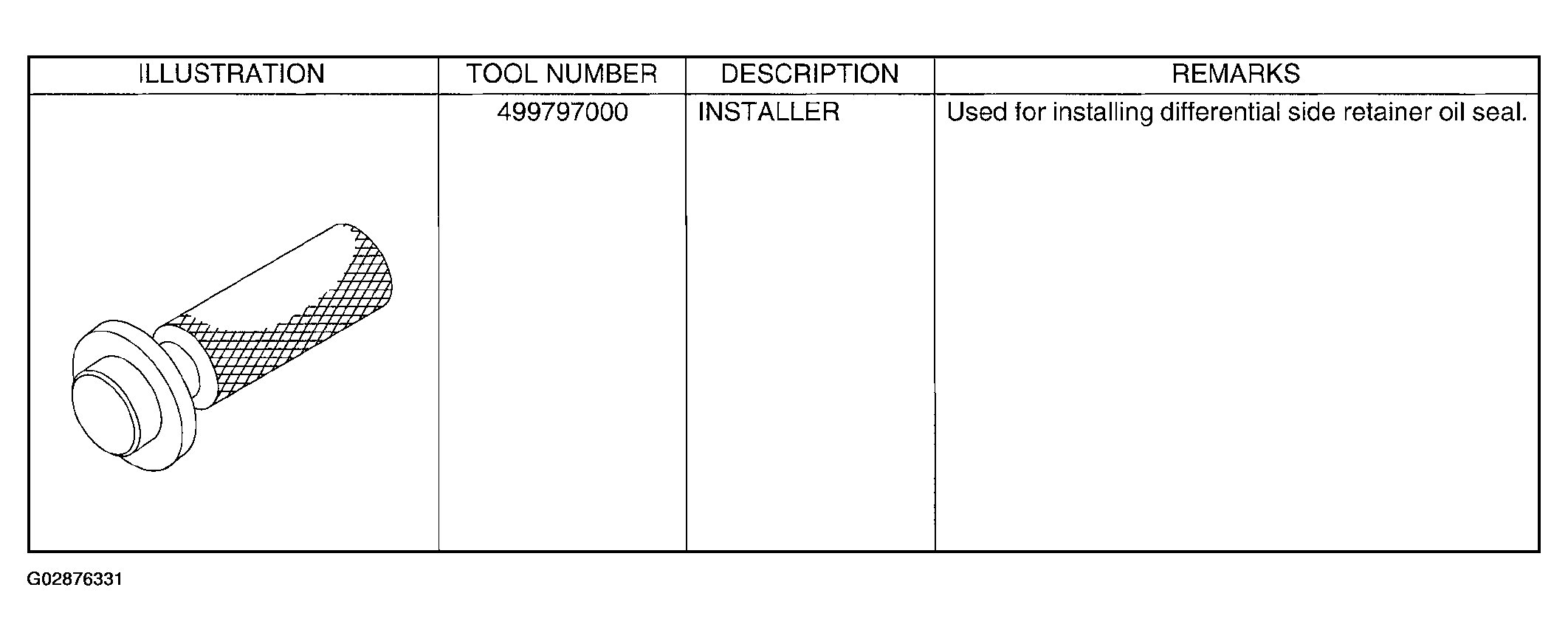

Fig 11: Identifying Special Tools (11 Of 11)

G02876331

Courtesy of SUBARU OF AMERICA, INC.
