Section 8 (Manual Trans & Differential)
>>
General Description
>>
Component
>>
Transmission Case
Transmission Case
WARNING:
This page is about a different variant/trim than selected.

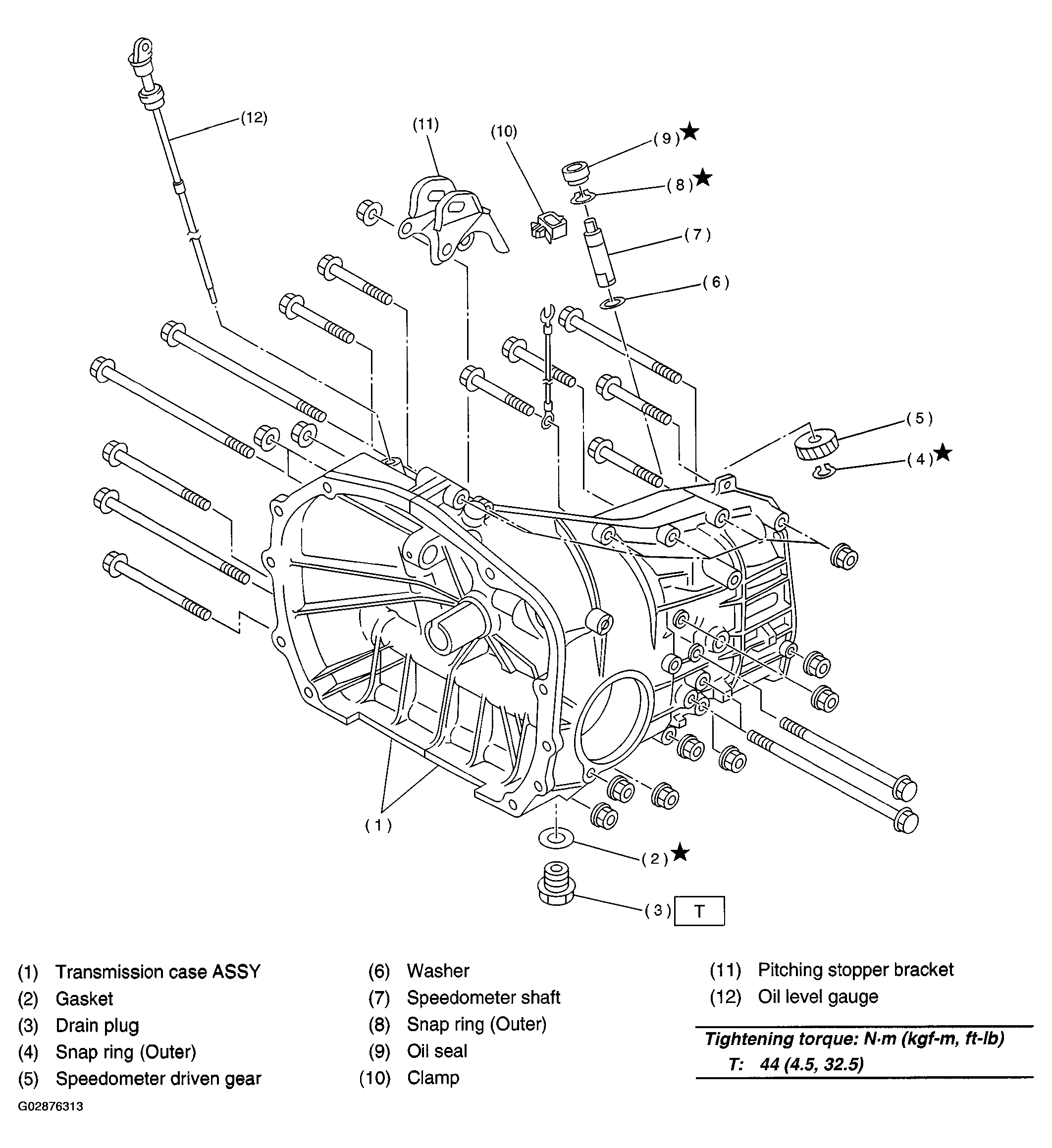

Fig 1: Transmission Case Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Transmission case tightening torque

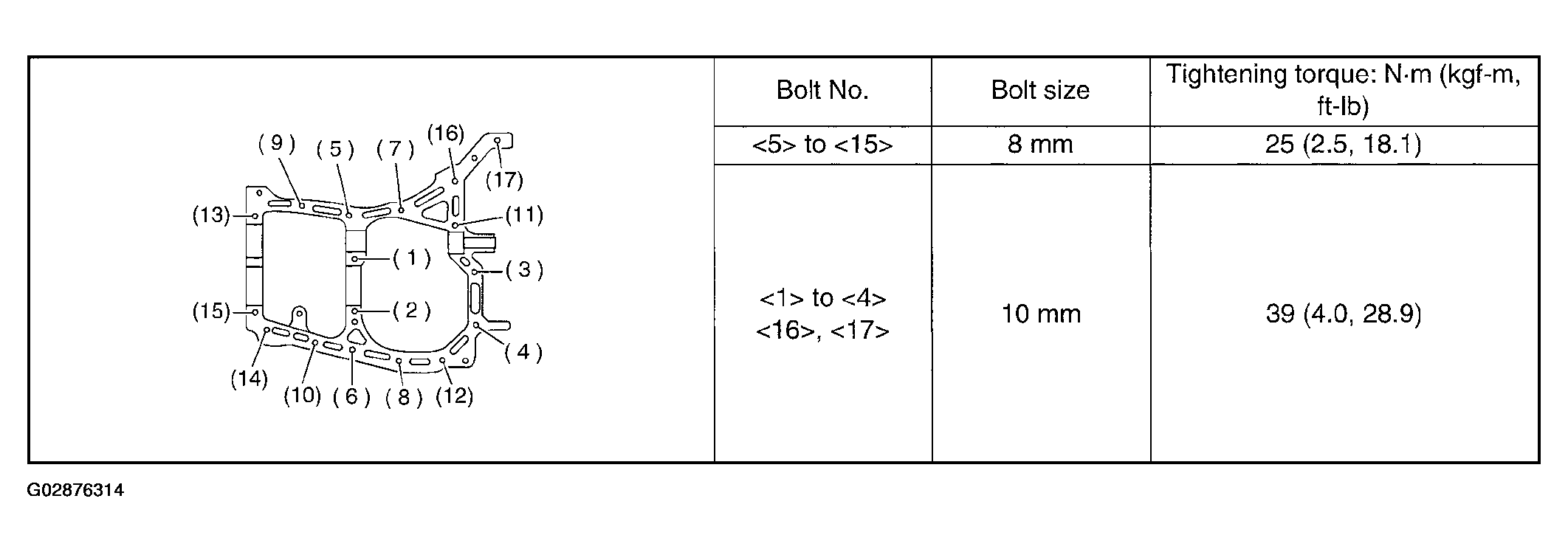

Fig 2: Transmission Case Tightening Torque Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
