Center Differential: Disassembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Do not disassemble center differential because it is a non-disassemble part.

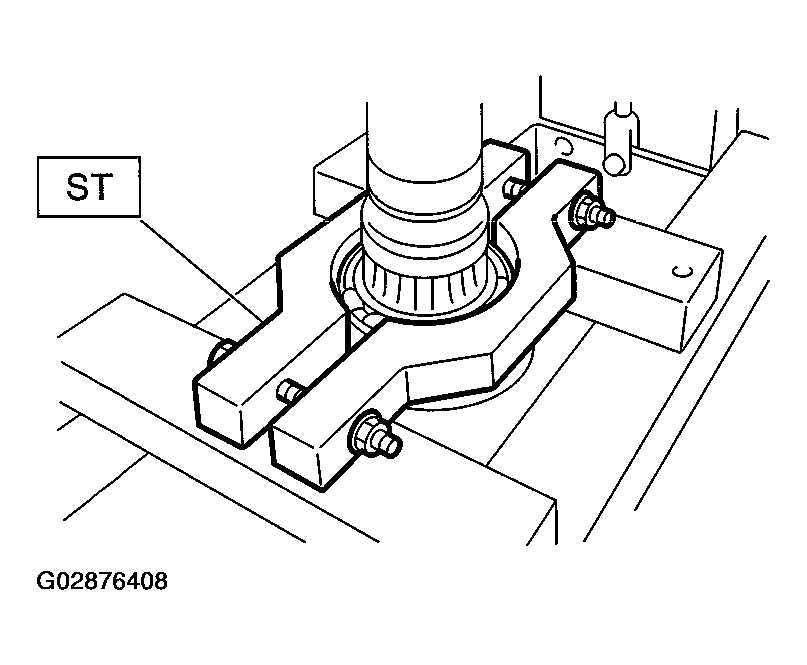

- Remove ball bearing using ST.
- Do not reuse ball bearing.
- ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER
Courtesy of SUBARU OF AMERICA, INC.
