Resonator Chamber: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

  1. Tightening torque:  33 N.m (3.4 kgf-m, 24.6 ft-lb)

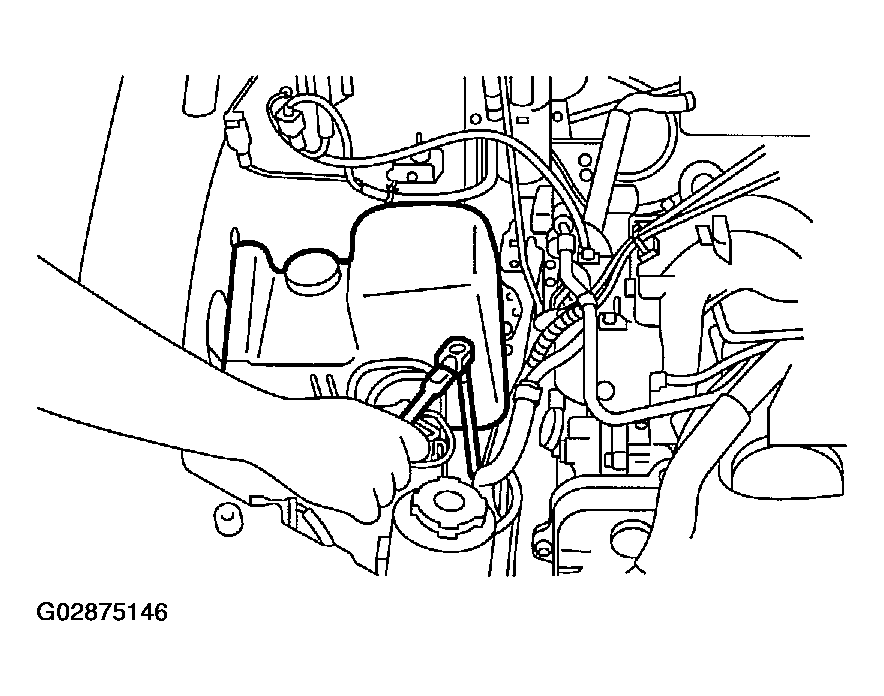

Fig 1: Installing Resonator Chamber
G02875146Courtesy of SUBARU OF AMERICA, INC.
