Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove bolts which install air intake duct on the front side of body.

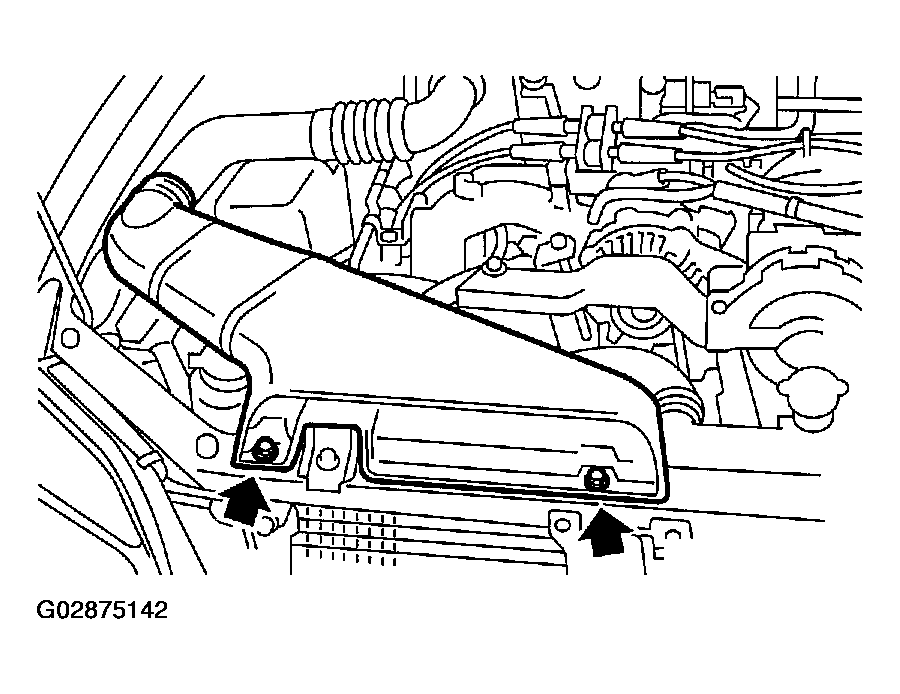

    Fig 1: Removing Air Intake Duct Bolts
    G02875142Courtesy of SUBARU OF AMERICA, INC.
  2. Remove bolt which installs air intake duct on body.

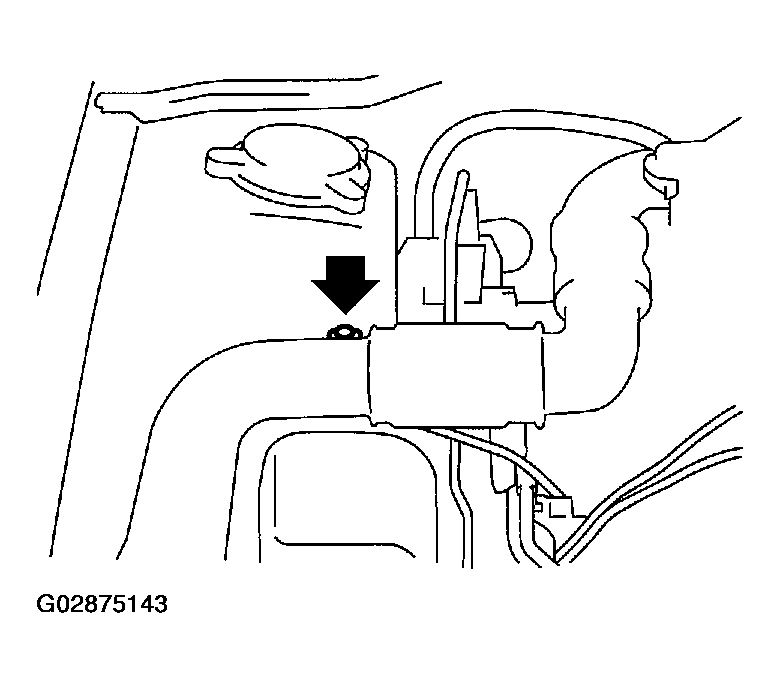

    Fig 2: Removing Air Intake Duct Bolt
    G02875143Courtesy of SUBARU OF AMERICA, INC.
  3. Remove air intake ducts as a unit.

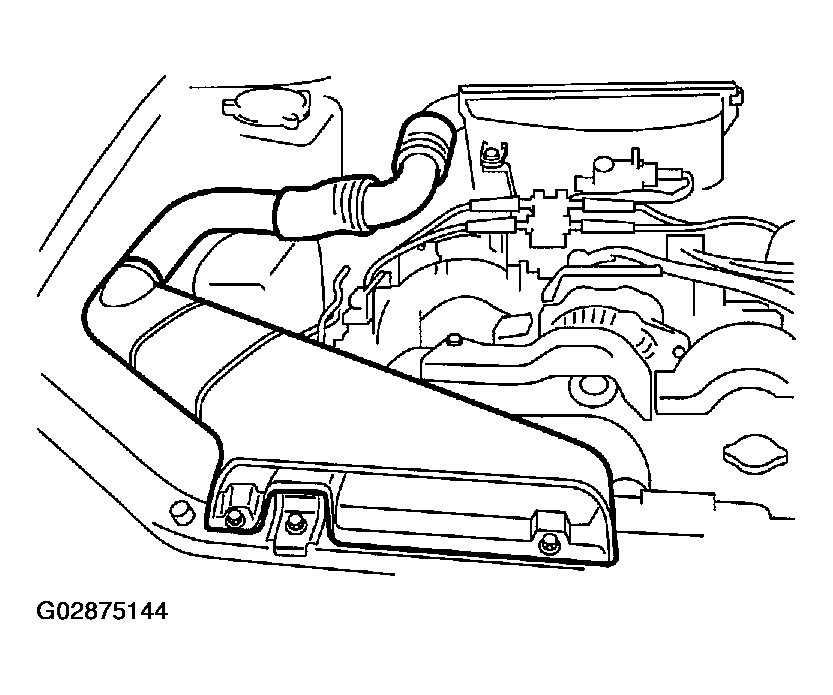

    Fig 3: Removing Air Intake Ducts
    G02875144Courtesy of SUBARU OF AMERICA, INC.
