Front Wiper Motor And Link: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the battery ground terminal to battery.
  2. To confirm that the motor is at auto stop position, connect the harness to motor and turn the wiper switch ON/OFF once.
  3. Disconnect the ground terminal from battery.
  4. Tighten the nut where rod (A) and link plate (B) are aligned in a straight line.

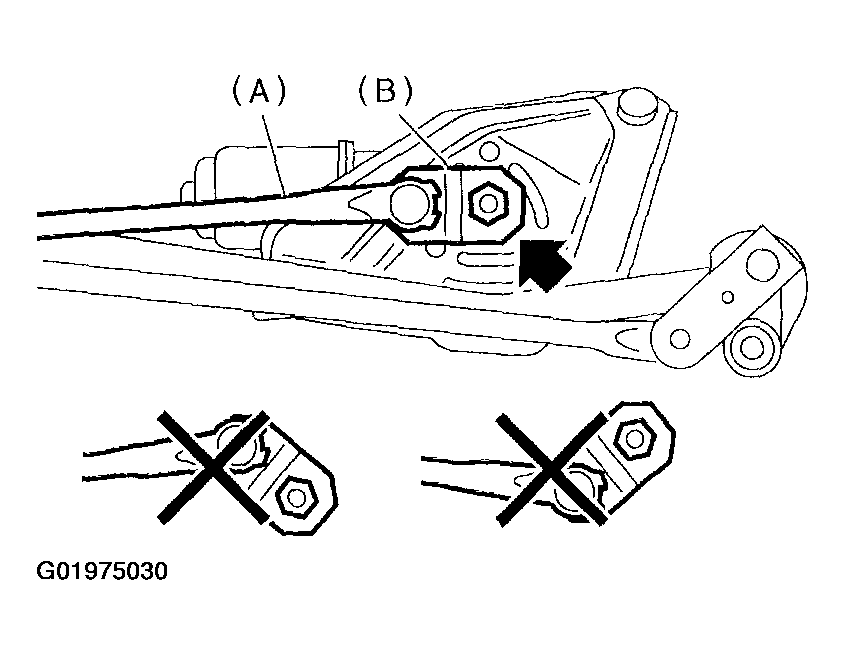

    Fig 1: Tightening Nut Where Rod & Link Plate Are Aligned
    G01975030Courtesy of SUBARU OF AMERICA, INC.
  5. Install in the reverse order of removal.
