Combination Switch (Wiper): Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the screw to remove a steering column cover.

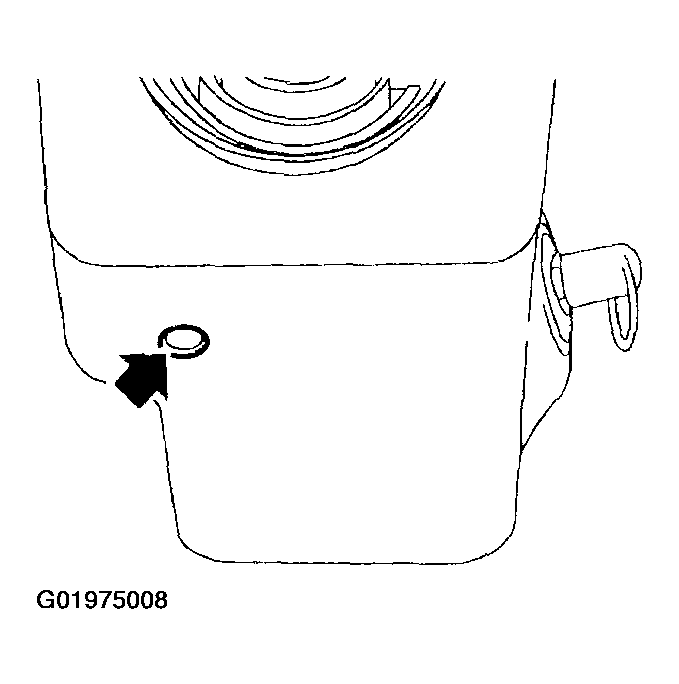

    Fig 1: Loosening Screw To Remove Steering Column Cover
    G01975008Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connectors from combination switches.
  3. Loosen the screw to remove combination switch.

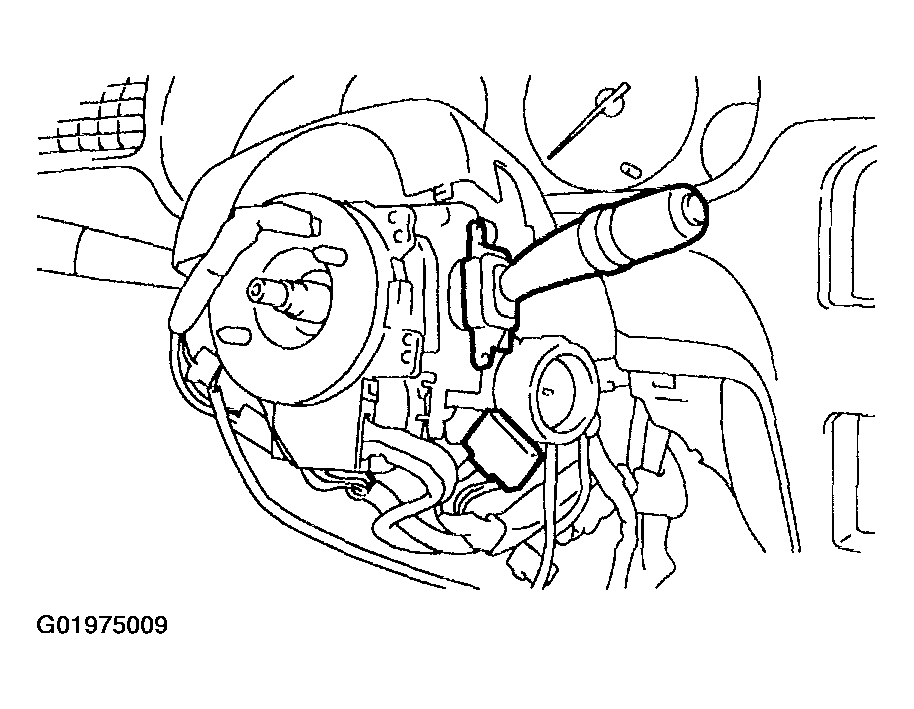

    Fig 2: Loosening Screw To Remove Combination Switch
    G01975009Courtesy of SUBARU OF AMERICA, INC.
