Combination Switch (Wiper): Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw to remove a steering column cover.

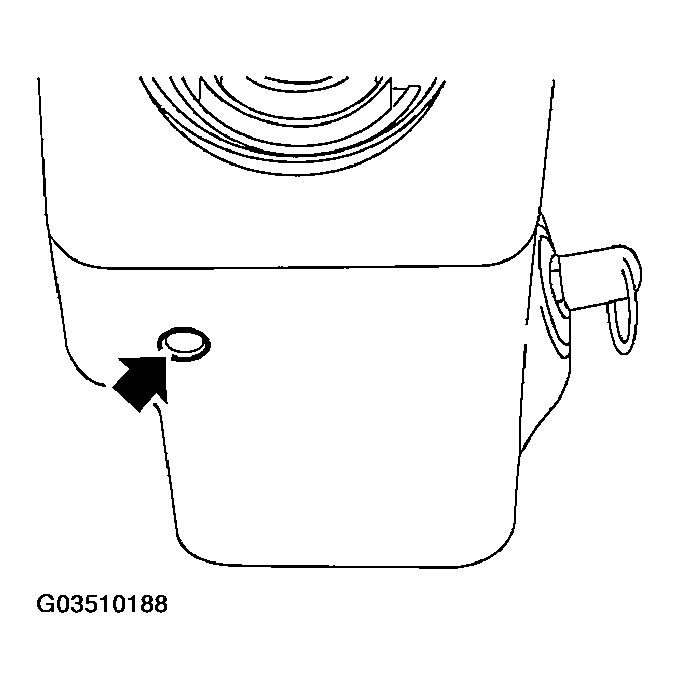

    Fig 1: Removing Screw
    G03510188Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect harness connectors from combination switches.
  3. Remove screw to remove combination switch.

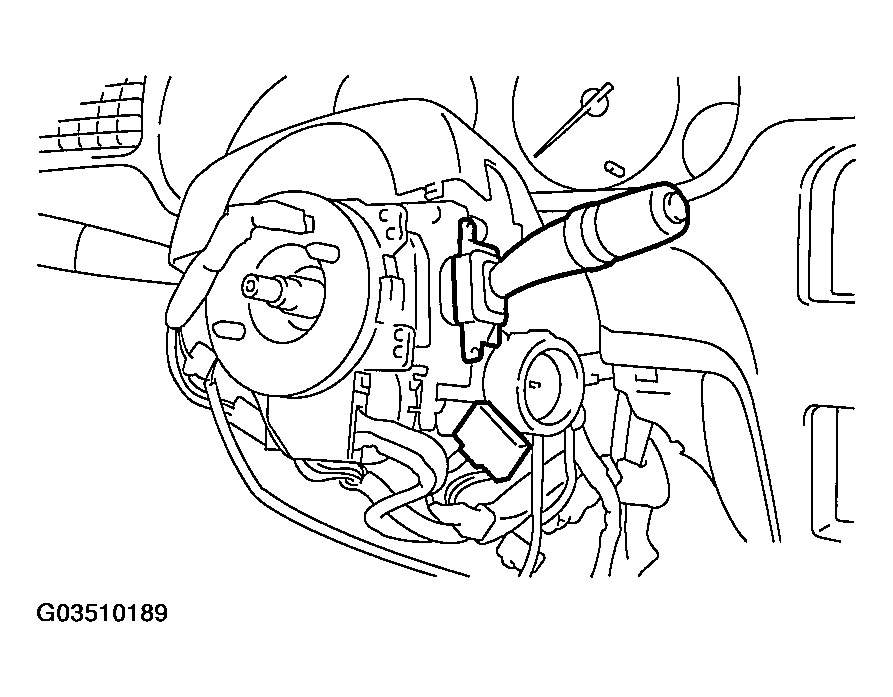

    Fig 2: Removing Combination Switch
    G03510189Courtesy of SUBARU OF AMERICA, INC.
