Wiper Control Relay (Wagon Model): Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the right quarter lower trim. < Ref. to REMOVAL .>
  3. Loosen the nut to remove control unit.

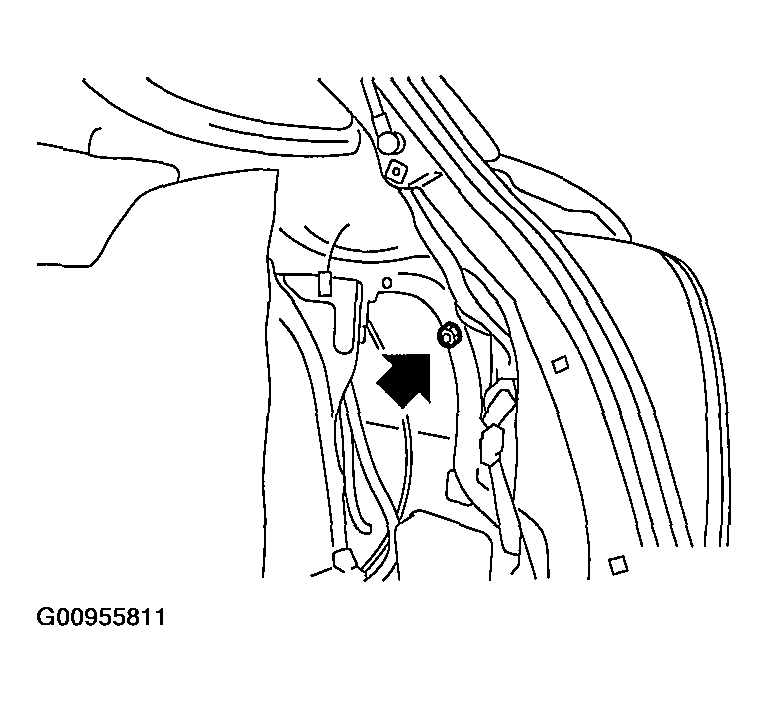

Fig 1: Loosening Nut To Remove Control Unit
G00955811Courtesy of SUBARU OF AMERICA, INC.
