Master Cylinder: Inspection

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, fluid reservoir, return spring, gasket, clutch damper, cylinder boot and hose replace the faulty part.

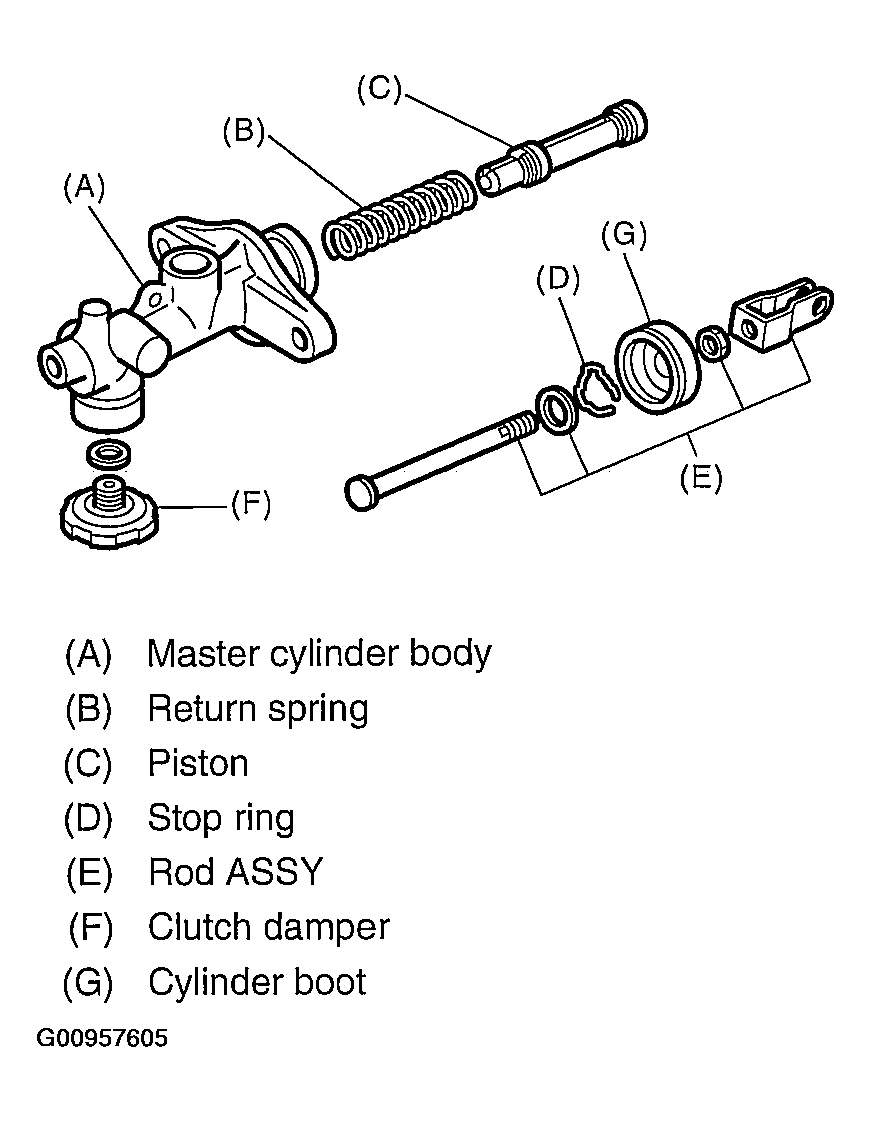

Fig 1: Identifying Master Cylinder Components
G00957605Courtesy of SUBARU OF AMERICA, INC.
