Reduction Driven Gear: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap ring from reduction driven gear.

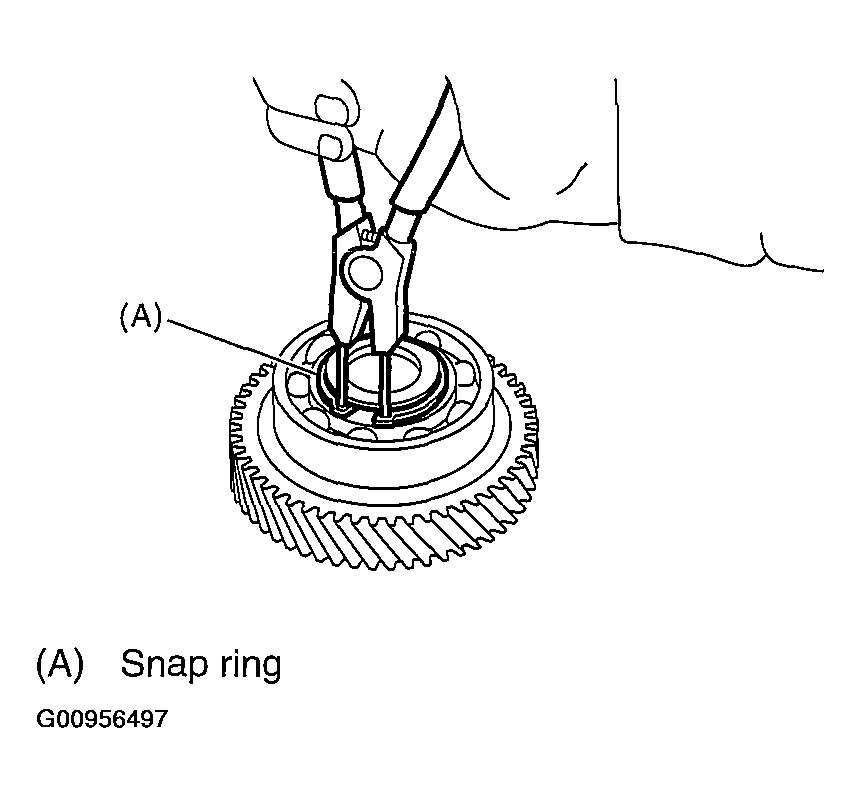

Fig 1: Removing Snap Ring From Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove ball bearing from reduction driven gear.
ST 498077600 REMOVER

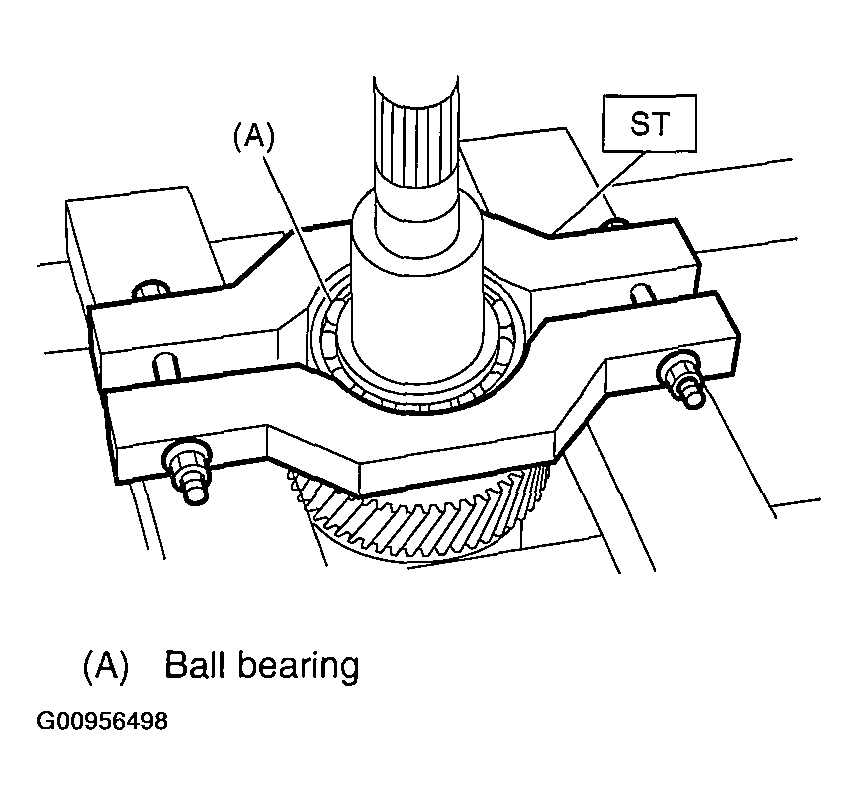

Fig 2: Removing Ball Bearing From Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove snap ring reduction driven gear.
