Reduction Drive Gear: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reduction drive gear assembly.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

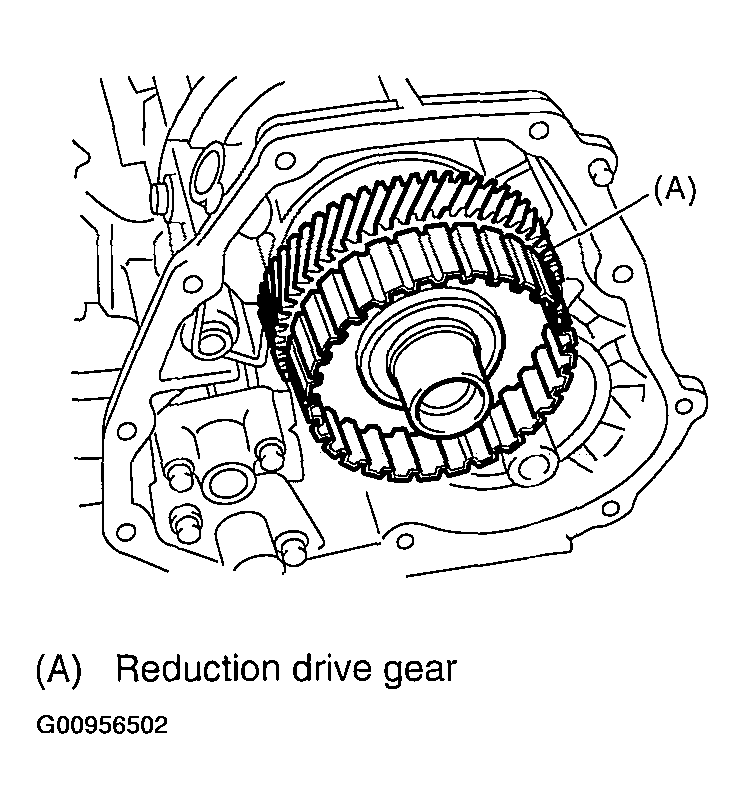

    Fig 1: Installing Reduction Drive Gear
    G00956502Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Ref. to INSTALLATION <-- , Reduction Driven Gear -->.>
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor. < Ref. to INSTALLATION <-- , Extension Case -->.>
  4. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION <-- , Automatic Transmission Assembly -->.>
