Section 109 (Engine Cooling System (H4SO)): Radiator: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on a lift.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Drain the engine coolant completely. < Ref. to DRAINING OF ENGINE COOLANT . >
Disconnect the connectors of radiator main fan motor (A) and sub fan motor (B).

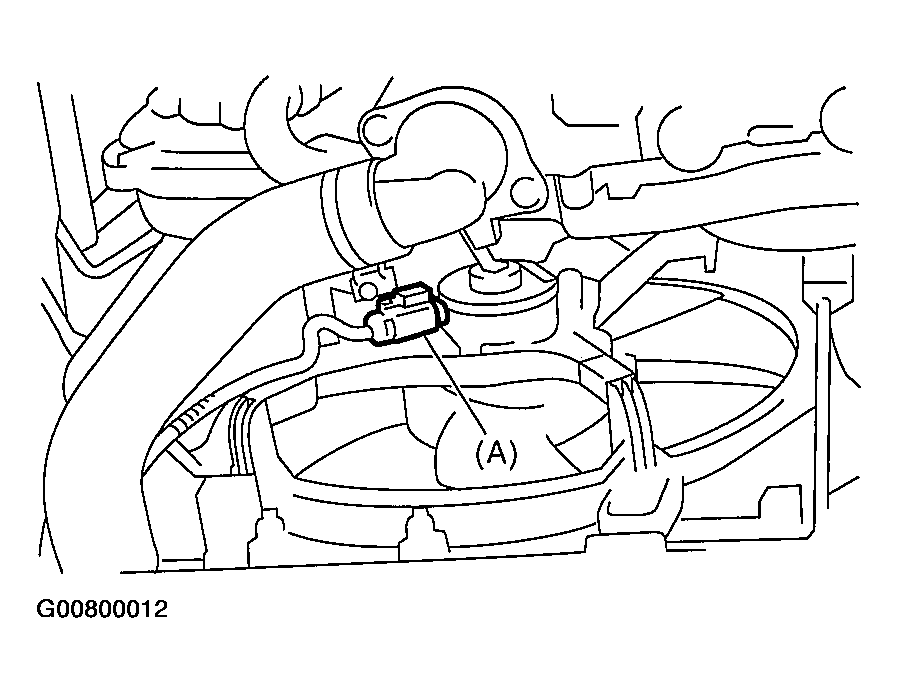

Fig 2: Disconnecting Connectors Of Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

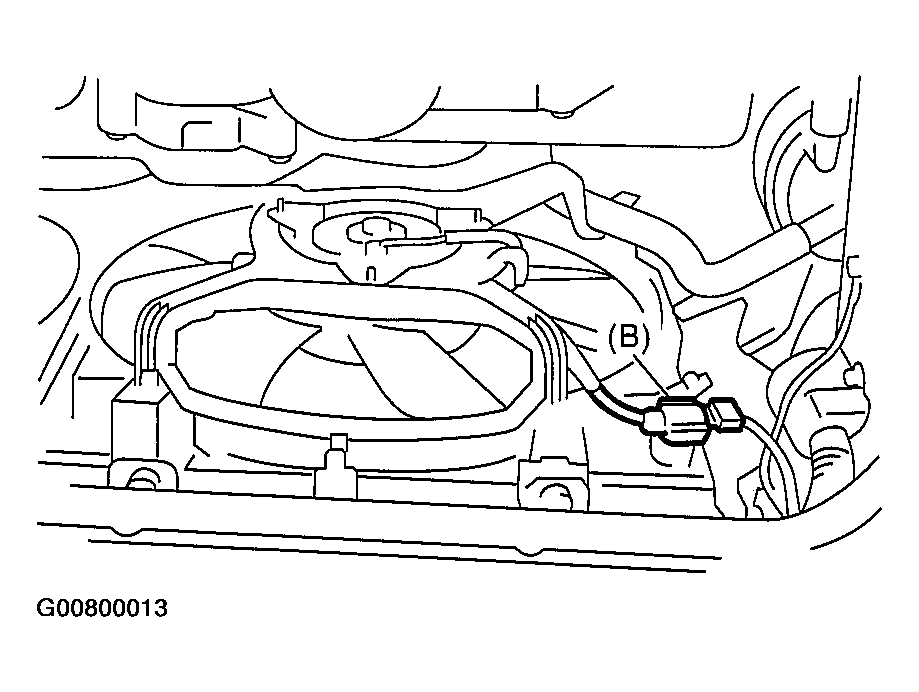

Fig 3: Disconnecting Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from water pump.

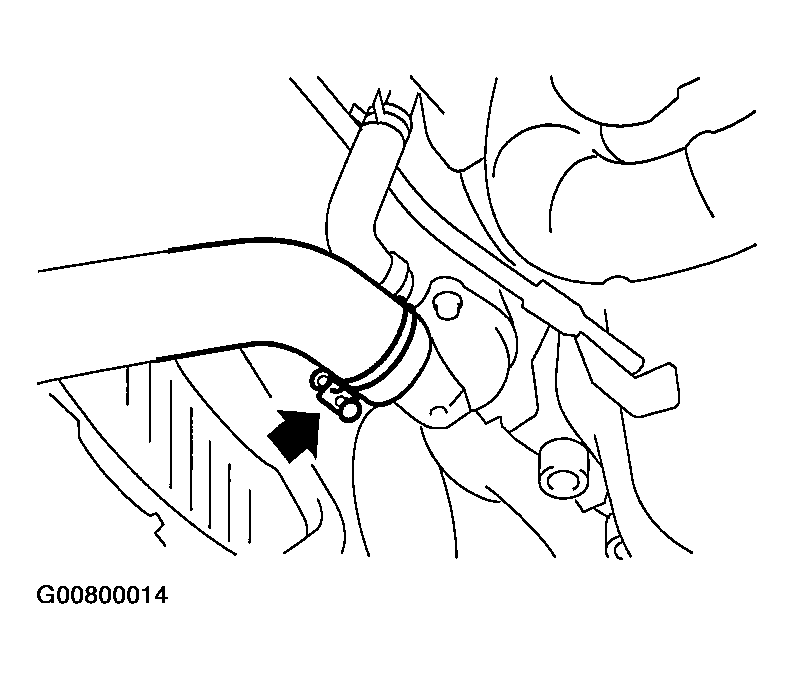

Fig 4: Disconnecting Radiator Outlet Hose From Water Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hoses from ATF pipe. (AT model)
Plug the openings in the hose and radiator with caps in order to prevent ATF from leaking.

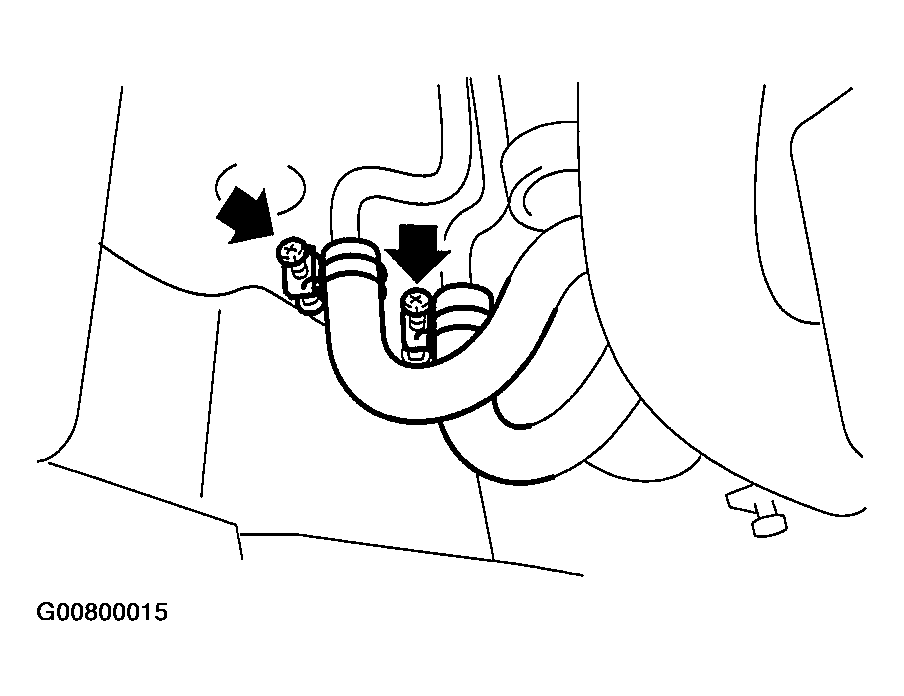

Fig 5: Disconnecting ATF Cooler Hoses From ATF Pipe
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Disconnect the overflow hose.
Remove the reservoir tank. < Ref. to REMOVAL . >
Remove the air intake duct.
Disconnect the radiator inlet hose from engine.

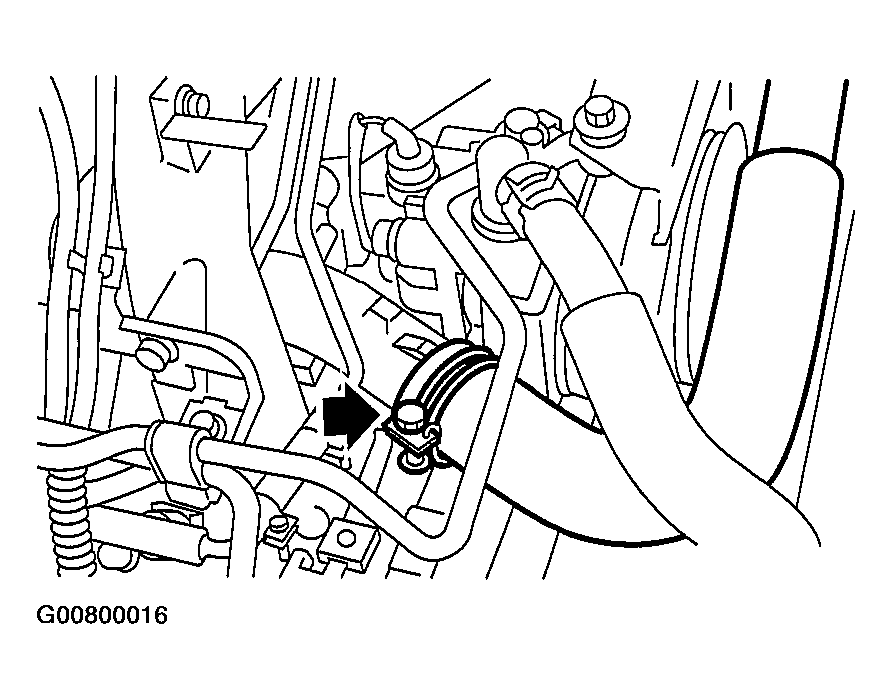

Fig 6: Disconnecting Radiator Inlet Hose From Engine
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

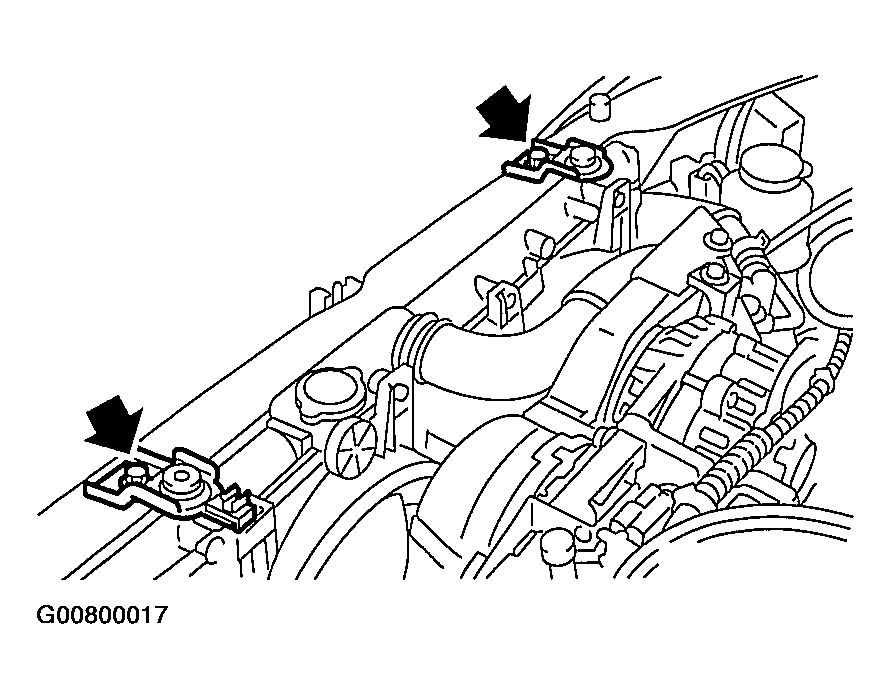

Fig 7: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Detach the power steering hose from clip on radiator.

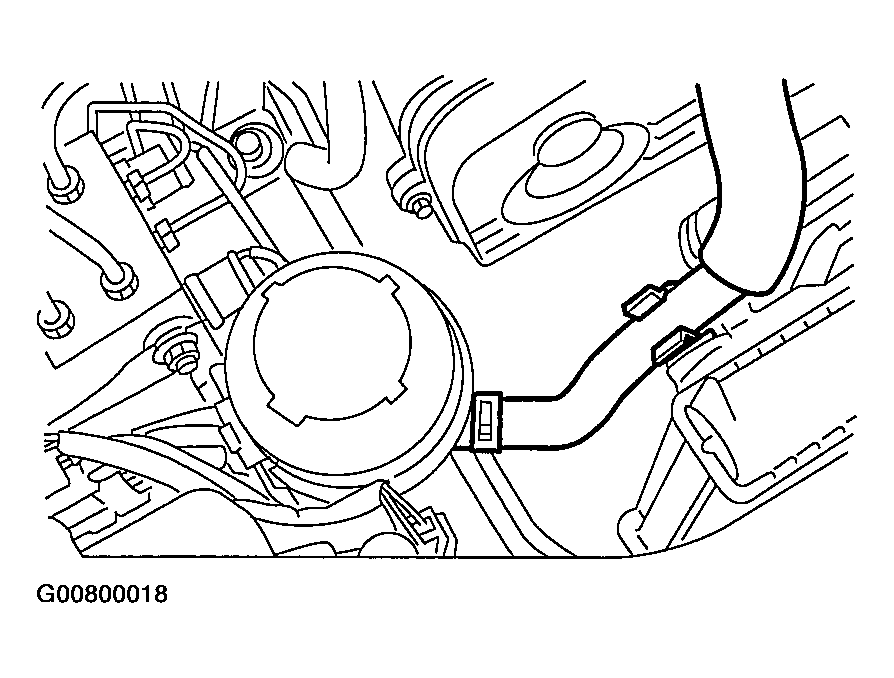

Fig 8: Detaching Power Steering Hose From Clip On Radiator
Courtesy of SUBARU OF AMERICA, INC.
Lift the radiator up and away from the vehicle.
